JH-1049 12mm Diameter Minifix Cam Lock, Cold Rolled Steel Concealed Furniture Fastener with Blue Zinc Coating for Cabinet & Wardrobe Assembly
JH-1049 12mm Diameter Minifix Cam Lock, Cold Rolled Steel Concealed Furniture Fastener with Blue Zinc Coating for Cabinet & Wardrobe Assembly
Specifications
Brand Name :
JINHAN
Model Number :
JH-1049
Certification :
ISO 9001:2015
Place of Origin :
Guangdong, China
MOQ :
5000 Pieces
Price :
US$ 0.001-0.1/Piece
Payment Terms :
T/T, L/C
Supply Ability :
5000000 Pieces per Month
Delivery Time :
15-30 days
Packaging Details :
by carton
Common Aliases :
Eccentric cam fastener, furniture lock cam
Material :
Cold rolled carbon steel SPCC
Coating Type :
Electroplated blue zinc
Friction Mechanism :
Anti-rotation vertical ridges
Installation Type :
Concealed (in-panel)
Load Capacity :
High shear strength for dynamic loads
​​Ideal Panel Thickness :
16-25mm (standard board)
Industry Standards :
EN 320, ASTM A1008
Description

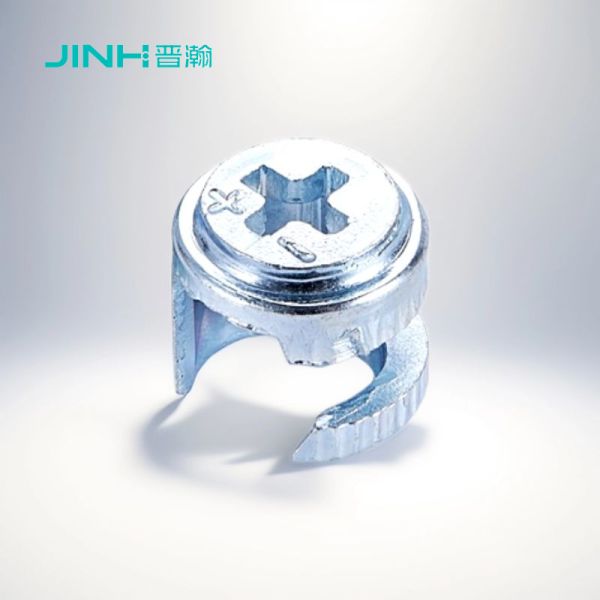

JH-1049 12mm Diameter Minifix Cam Lock

Elevate your furniture assembly with the JINHAN JH-1049 Minifix Cam Lock. Engineered for superior strength and a clean, concealed look, this cam lock connector is the reliable choice for professional cabinet and wardrobe manufacturing. Crafted from high-quality cold-rolled carbon steel and finished with a durable blue zinc coating, it outperforms common zinc alloy counterparts in both durability and holding power.

Key Features
  • Enhanced Material Strength: Made from cold-rolled carbon steel, offering greater tensile strength and longevity compared to standard zinc alloy cam locks.
  • Secure & Stable Connection: Features unique vertical ridges on both the inner and outer surfaces of the cam, providing exceptional grip and preventing loosening over time.
  • Aesthetic Concealed Design: Offers a hidden installation that keeps hardware out of sight for a sleek, professional furniture finish.
  • Durable Protective Finish: The blue zinc plating provides excellent corrosion resistance, ensuring reliability in various environments.
  • Precision Fit: Designed for a standard 15mm system board, requiring a clean 12mm diameter hole with a depth of 13.5mm for perfect installation.
Specifications
Attribute Specification
Model JH-1049
Product Type Minifix / Cam Lock / Eccentric Connector
Material Cold Rolled Carbon Steel
Surface Finish Blue Zinc Plated
Installation Concealed
Cam Diameter 12 mm
Total Height 13.5 mm
Required Panel Hole Diameter 12 mm
Required Panel Hole Depth 13.5 mm
Common Application Cabinets, Wardrobes, Storage Units, Panel Furniture
Product Documentation
Download Product Catalog (PDF)
Product Images
JH-1049 12mm Diameter Minifix Cam Lock, Cold Rolled Steel Concealed Furniture Fastener with Blue Zinc Coating for Cabinet & Wardrobe Assembly JH-1049 12mm Diameter Minifix Cam Lock, Cold Rolled Steel Concealed Furniture Fastener with Blue Zinc Coating for Cabinet & Wardrobe Assembly JH-1049 12mm Diameter Minifix Cam Lock, Cold Rolled Steel Concealed Furniture Fastener with Blue Zinc Coating for Cabinet & Wardrobe Assembly JH-1049 12mm Diameter Minifix Cam Lock, Cold Rolled Steel Concealed Furniture Fastener with Blue Zinc Coating for Cabinet & Wardrobe Assembly
Packing Information

3000/4000/5000pcs per carton or as per your requirements.

JH-1049 12mm Diameter Minifix Cam Lock, Cold Rolled Steel Concealed Furniture Fastener with Blue Zinc Coating for Cabinet & Wardrobe Assembly JH-1049 12mm Diameter Minifix Cam Lock, Cold Rolled Steel Concealed Furniture Fastener with Blue Zinc Coating for Cabinet & Wardrobe Assembly
