High Temperature Brazing Furnace With Variable Frequency Speed Controller
High Temperature Brazing Furnace With Variable Frequency Speed Controller
Specifications
Brand Name :
Aojie
Model Number :
RCWE 9-31×280×30, RCWE 12-31×300×16
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
160 sets per year
Delivery Time :
24 working weeks
Packaging Details :
It depends on the size and dimension of the equipment.
Belt Width (mm) :
350/400
Mesh belt controller :
variable frequency speed controller
Min Order :
1 set
Delivery Date :
24 working weeks
Color :
customized color
Description

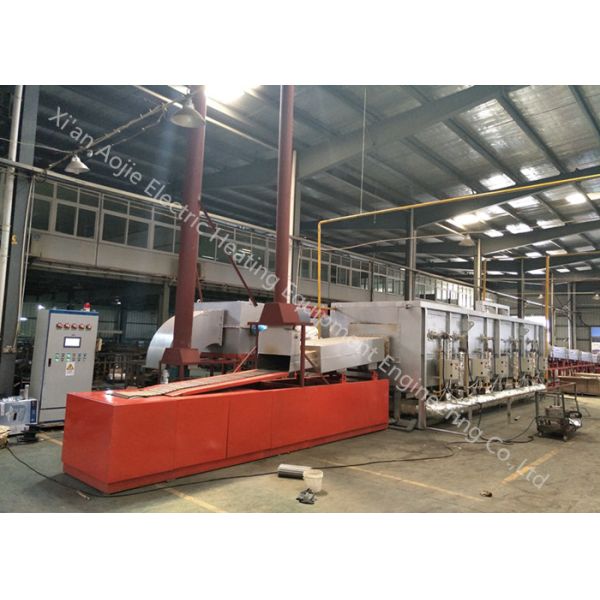

Gas Heating , Continuous Brazing Furnace , Low Energy Consumption , Alumium

Overview

The gas heating brazing furnace is a new type of furnace which is created based on absorbing the successful experience from abroad as well as the advanced technology in China and then innovate.

In order to achieve the temperature control, it is designed with micro-processor controlled thermometer with high precesion. Variable frequency speed is also a highlight.

Advantages

  • The muffle adopts heat resistant stainless steel plate containing rare earth elements produced by Outokumpu Group whiich ensures the longer working period and the potential for things to go wrong is smaller.
  • The parts pass rate is always high through our furnace, which reaches almost all if the parameters of the process for brazing and mesh belt speed are accuate.

Brazing Process:

The surface of the cleaned workpiece is assembled in lap mode and the solder is placed near the joint clearance or between the joint clearance. When the workpiece and solder are heated to a temperature slightly above the solder melting point, the solder melts (the workpiece does not melt), and it is inhaled and filled with between the solid workpiece clearance through capillary. The liquid solder and workpiece metal diffuse and dissolve each other, and the brazing head is formed after condensation.
