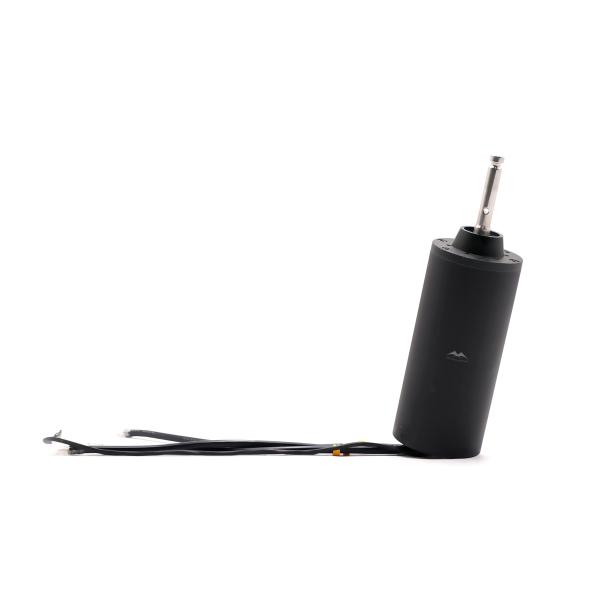

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors
High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors
High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors
High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors
High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors
High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors
High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors
High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors
Specifications
Brand Name :
Furious Motor
Model Number :
66160
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$523
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
66160
Dimension :
66mm * 160mm
KV :
160
Max. Thrust :
46KG
Max. Torque :
7N.m
Max. RPM :
9120
Suggested ESC :
14S 160A
Suggested Prop :
PD-1
Max. Current :
120A
Max. Voltage :
57V
Max. Power :
6KW
Li - Po :
12S - 14S
Hall Sensor :
Optional
Weight :
2.3KG
Application :
Efoil, electric boat.
Description

Intoroduction

Elevate your aquatic performance with the 66160 propulsion system, a powerful and refined solution designed for a range of watercraft. Achieving an impressive 46kg of thrust, this system is expertly paired with the PD-1 propeller, 14S 160A ESC, and CD-2 wireless controller for smooth and reliable operation.

Ideal for powering underwater thrusters, e-foils, electric surfboards, jet boards, underwater scooters, and electric boats, it delivers the performance required for exceptional aquatic adventures.

Tech Specs

Motor

Model 66-160
Type Brushless DC motor
KV 160
Suggested ESC 14 S 160 A
Suggested Propeller PD-1
Max. Thrust 46 kg
Max. Torque 7 N·m
Max. RPM 8500
Li-Po 8 S ~ 14 S
Max. Voltage 57 V
Max. Current 140 A
Max. Power 6 kW
Motor Dimension 66 mm * 160 mm
Weight 2.3 kg
Application Electric surfboard, efoil, underwater thruster, electric boat

ESC

Model 14 S 160 A
Suggested Battery 6 S ~ 14 S (Li-Po)
BEC 5 V 1 A
Signal Frequency 50 Hz ~ 400 Hz
Max. Input Voltage 58 V
Max. Current 200 A
Weight 550 g
Dimension 92 mm * 46 mm * 23 mm

Details

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors

High Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors

High-Torque High Thrust Brushless DC Motor Underwater Propulsion 66160 Marine Motors
