Specifications
Brand Name :
Furious Motor
Model Number :
120100
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$1471
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
120-100
Dimension :
120mm * 100mm
KV :
50
Max. Thrust :
61KG
Max. Torque :
33N.m
Max. RPM :
3468
Suggested ESC :
24S 200A
Suggested Prop :
45 inch
Max. Current :
165A
Max. Voltage :
94V
Max. Power :
12.3KW
Li - Po :
14S - 24S
Hall Sensor :
Optional
Weight :
4.84KG
Application :
Drone, paramotor
Description

Intoroduction

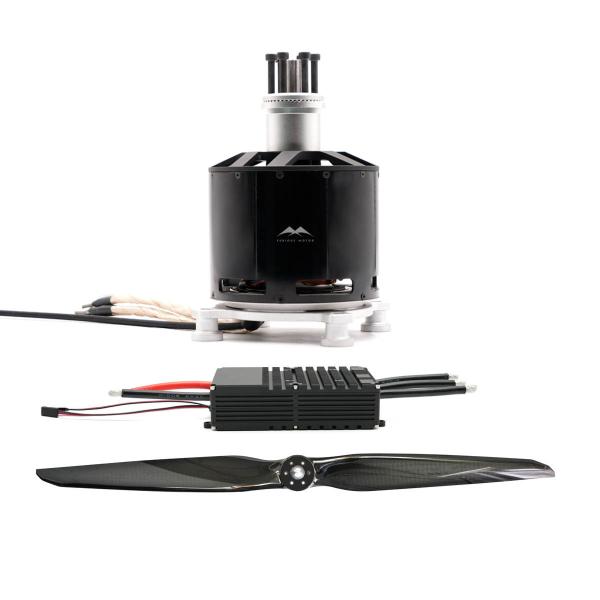

The 120-100 61kg propulsion system is specifically designed for paramotors and paragliders, delivering exceptional performance and reliability. Optimized for smooth power output, it pairs seamlessly with a 45-inch propeller and a 24S 200A motor controller, ensuring precise control and efficiency. With a maximum thrust of 61kg, this powerhouse is built to meet the demands of high-performance aerial applications. Experience enhanced stability and durability, making the 120-100 an ideal choice for pilots seeking a reliable and efficient propulsion system.

Tech Specs

System

Max. Thrsut 61 kg / rotor
Takeoff Weight 20 kg - 30 kg / rotor
Suggested ESC 24 S 200 A
Suggested Propeller 45 inch propeller
Suggested Battery 12 S - 24 S
Working Temperature -20 °C ~ 50 °C
Total Weight 4.84 kg
Application Paramotor, paraglider

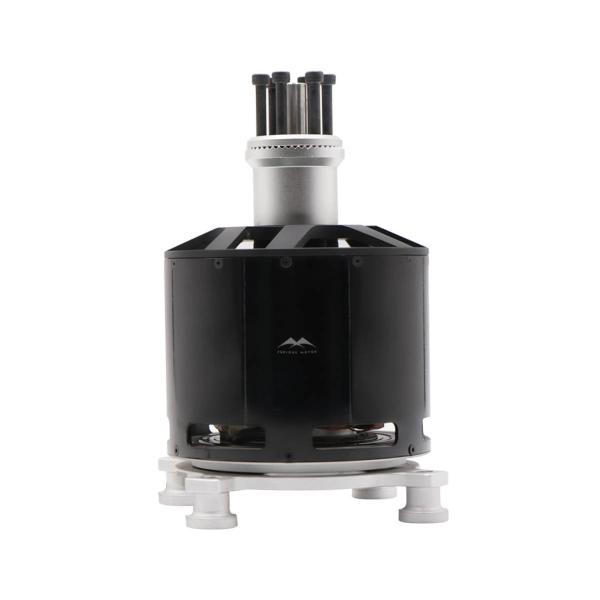

Motor

Model 120-100
KV 50
Max. Thrsut 61 kg
Max. Torque 33 N·m
Max. RPM 3648
Dimension 120 mm * 100 mm
Weight 3.9 kg

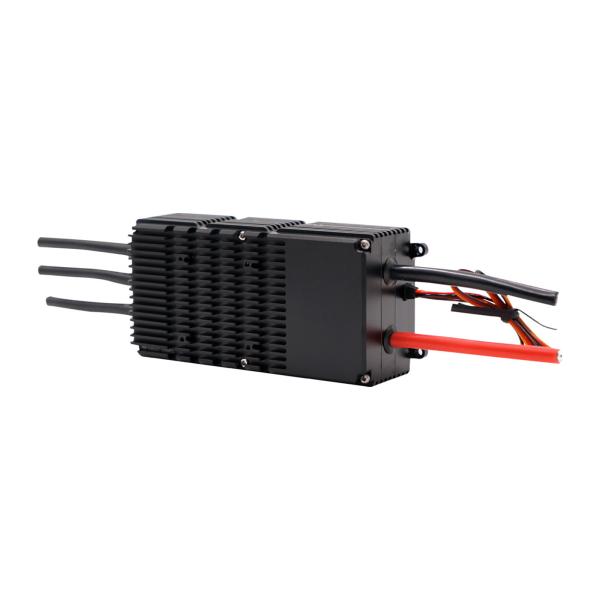

ESC

Model 24 S 200 A
Suggested Battery 12 S ~ 24 S (Li-Po)
PMW Signal 3.3 V / 5 V
Pulse Width 900 us ~ 2000 us
Signal Frequency 50 Hz ~ 400 Hz
Max. Input Voltage DC 50 V ~ 100 V
Max. Current 240 A
Weight 595 g
Dimension 140.5 mm * 66.6 mm * 34.4 mm

Propeller

Model 45 inch
Diameter 45 inch
Material Carbon fiber
Weight 0.35 kg

Details

120100 61KG Electric Propulsion Thrust With Motor And 24S 200A ESC And 45 Inch Propeller120100 61KG Electric Propulsion Thrust With Motor And 24S 200A ESC And 45 Inch Propeller120100 61KG Electric Propulsion Thrust With Motor And 24S 200A ESC And 45 Inch Propeller120100 61KG Electric Propulsion Thrust With Motor And 24S 200A ESC And 45 Inch Propeller120100 61KG Electric Propulsion Thrust With Motor And 24S 200A ESC And 45 Inch Propeller120100 61KG Electric Propulsion Thrust With Motor And 24S 200A ESC And 45 Inch Propeller

120100 61KG Thrust Propulsion System With Motor And 24S 200A ESC And 45 Inch Propeller For Paramotor And Paraglider
