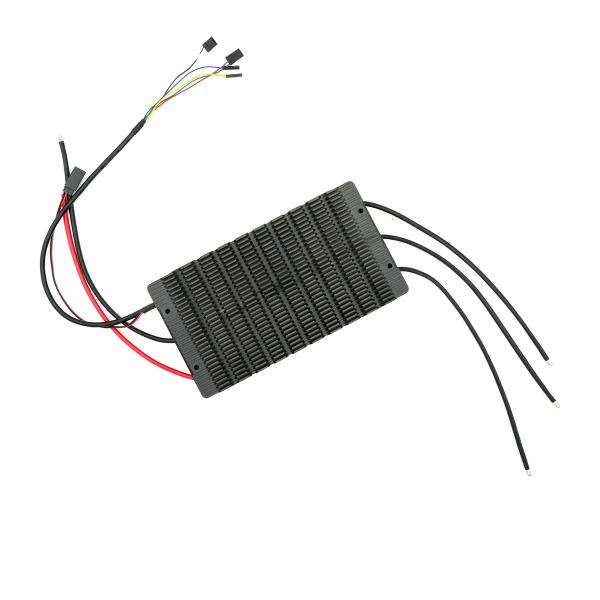

High Voltage 400V Precision PWM ESC With CAN Bus For Brushless DC Motor Heavy Lift Drone
High Voltage 400V Precision PWM ESC With CAN Bus For Brushless DC Motor Heavy Lift Drone
High Voltage 400V Precision PWM ESC With CAN Bus For Brushless DC Motor Heavy Lift Drone
High Voltage 400V Precision PWM ESC With CAN Bus For Brushless DC Motor Heavy Lift Drone
High Voltage 400V Precision PWM ESC With CAN Bus For Brushless DC Motor Heavy Lift Drone
High Voltage 400V Precision PWM ESC With CAN Bus For Brushless DC Motor Heavy Lift Drone
High Voltage 400V Precision PWM ESC With CAN Bus For Brushless DC Motor Heavy Lift Drone
High Voltage 400V Precision PWM ESC With CAN Bus For Brushless DC Motor Heavy Lift Drone
Specifications
Brand Name :
Furious Motor
Model Number :
400 V 100 A
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$1750
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
96 S 100 A
Effective Throttle Range :
1050 us ~ 1940 us
BEC :
5 V 200 mA
Input Voltage :
DC 200 V ~ 400 V
Peak Current :
100 A
Ingress Protecton :
IP X4
Suggested Li-po :
48 S ~ 96 S Lipo
Dimension :
179 mm * 99.6 mm * 66 mm
Weight :
986 g
Frequency :
50 Hz ~ 500 Hz
Description

Intoroduction

Designed for the demanding requirements of heavy-lift drone applications, our 96S 100A ESC delivers unparalleled responsiveness. Experience near-instantaneous power delivery, achieving full speed from idle in a mere 0.6 seconds. This ESC utilizes a dual-channel control system, with CAN bus prioritized for exceptional command accuracy.

Synchronous regeneration ensures optimal efficiency, precise RPM control, and real-time data transmission via CAN bus, providing the critical information needed for complex operations.

Tech Specs

Model 96 S 100 A
Effective Throttle Range 1050 us ~ 1940 us
BEC 5 V 200 mA
Input Voltage DC 200 V ~ 400 V
Peak Current 100 A
Ingress Protecton IP X4
Suggested Li-po 48 S ~ 96 S
Dimension 179 mm * 99.6 mm * 66 mm
Weight 986 g
Frequency 50 Hz ~ 500 Hz
Wire 8 AWG
Online Upgrade Yes
Throttle Loss Protection Yes
Error Signal Yes
Temperature Protection Yes
Voltage Protection Yes
Lock Protection Yes
RPM Output Yes
CAN Communication Yes
Working Temperature -20 °C ~ 65 °C

Details

High Voltage 400V Precision PWM ESC With CAN Bus For Brushless DC Motor Heavy Lift Drone

High Voltage 400V Precision PWM ESC With CAN Bus For Brushless DC Motor Heavy Lift Drone

High Voltage 400V Precision PWM ESC With CAN Bus For Brushless DC Motor Heavy Lift Drone

High Voltage 400V Precision PWM ESC With CAN Bus For Brushless DC Motor Heavy Lift Drone
