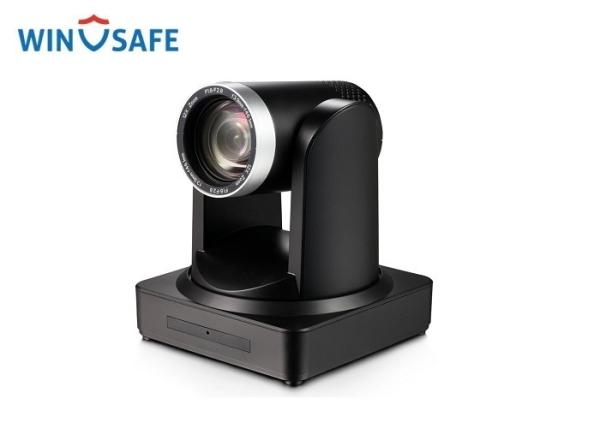

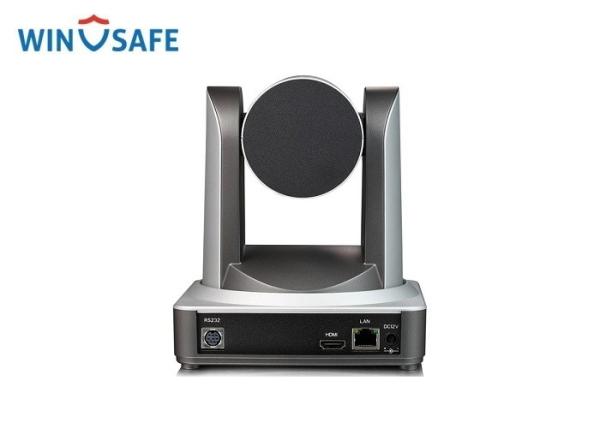

Education PTZ USB Video Conference Camera IP HDMI 1080P Full HD 10X Wide Angle
Education PTZ USB Video Conference Camera IP HDMI 1080P Full HD 10X Wide Angle
Education PTZ USB Video Conference Camera IP HDMI 1080P Full HD 10X Wide Angle
Education PTZ USB Video Conference Camera IP HDMI 1080P Full HD 10X Wide Angle
Specifications
Brand Name :
WINSAFE
Model Number :
UHV-600A-10-HD
Certification :
CE,FCC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10,000PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Netural Packing
Video Interface :
HDMI, Lan
Optical Zoom :
10X
Lens :
f = 4.7 - 47mm
View Angle :
6.3°(tele) - 60.9°(wide)
AV :
F1.6 - F3.0
Digital Zoom :
10X
Power :
DC12V
Weight :
1.4kg
Description

IP HDMI 1080P Full HD 10X Wide Angle Education PTZ Video Conference Camera/UHV-600A-10-HD

Specification

Model No. UHV-600-5X UHV600A-10X UHV600A-12X UHV600A-20
Camera Parameter 　 　 　 　
Optical Zoom 5X, f =3.6-18mm 10X, f = 4.7 - 47mm 12X, f = 3.9 - 46.1mm 20X, f = 5.2-98mm
Sensor 1/2.8" high quality HD CMOS Sensor
Effective Pixesl 16:9, 2.07 Megapixel
Video Format DVI(HDMI)/SDI video format
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94;720P60/50/30/25/59.94/29.97

USB3.0 interface video format
1. USB 3.0: 1920x1080P60/50/30/25; 1280x720P60/50/30/25; 960x540P30;640x360P30; 640x480P30; 352x288P30; 960x540P30
2. USB3.0 Compatible with USB 2.0: 960x540P30;640x360P30,1280X720P10/15;720x576P50,720x480P60,640x480P30,352x288P30

USB2.0 interface video format:176×144/320×240/320×180/352×288/640×480/720×480/720×576/640×360
800X600/960X540/1024X576/1024X768/1280X720/1920X1080 P30/25/20/15/10/5
View Angle 6.3°(tele) - 80.9°(wide) 6.43°(tele) - 60.9°(wide) 6.3°(tele) - 72.5°(wide) 3.3°(tele) - 54.7°(wide)
AV F1.6 - F3.0 F1.6 - F3.0 F1.8 - F2.4 F1.6 - F3.5
Digital Zoom 10X
Min.Illumination 0.5Lux(F1.8, AGC ON)
DNR 2D & 3D DNR
White Balance Auto / Manual / One Push / 3000K / 4000K / 5000K / 6500K
Focus Auto / Manual
Aperture Auto / Manual
Electronic Shutter Auto / Manual
BLC ON / OFF
WDR OFF / Dynamic Level adjustment
Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR Above 55dB
Input/Outpur Interface
Video Interfaces UV600A-05/10/12/20-SD Model:HDMI,3G –SDI,LAN, RS232(Ring through RS232 output),RS485,A-IN,5G WiFi
Optional)
UV600A-05/10/12/20-U2 Model:U2,LAN,RS232(Ring through RS232 output),A-IN
UV600A-05/10/12/20-U3 Model:U3,LAN,RS232(Ring through RS232 output),A-IN
UV600A-05/10/12/20-HD Model:HDBaseT,LAN ,A-IN
UV600A-05/10/12/20-HDMI Model:HDMI,LAN,RS232(input)
Image Code Stream Dual steam output
Video Compression Format H.265 , H.264
Control Signal Interface RS232 Ring through RS232 output
Control Protocol VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio Input Interface Double track 3.5mm linear input
Audio Compression Format AAC/MP3/PCM Audio compression
HD IP interface 100M IP port(100BASE-TX); 5G WiFi(Optional),Support Visca protocol control through IP port
Network Prococol RTSP/RTMP/ONVIF, GB/T23181
Powr Interface HEC3800 outlet(DC12V)
PTZ Parameter
Pan/Tilt Rotation ±170°,-30°～+90°
Pan Control Speed 0.1 - 60°/sec
Tilt Control Speed 0.1 - 30°/sec
Preset Speed Pan: 60°/sec , Tilt: 30°/sec
Preset Number 255 presets(10 presets by remote controller
Other Parameter
Supply Adapter AC110V-AC220V to DC12V/1.5A
Dimension 150mm x 150mm x 167.5mm
Weight 1.4kg
Romote Operation(IP) Remote Upgrade, Reboot and Reset

Features

Audio Input Interface (for future development)


Support 16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.

Wide-range, Quiet and Quick Pan/Tilt Mechanism


By adopting step driving motor mechanism,UHV600A camera works extremely quiet and moves smoothly.

Superb High-definition Image


UHV600A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.

Leading Auto Focus Technology


Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.

Low Noise and High SNR


Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

Multiple Audio/Video compression


Support H.264/H.265 video compression;AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.

Multiple Network Protocol


Support ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS)

Wide Application


Tele-education,lecture capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine, Interrogation and Emergency command systems.

Low-power sleep function


Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.

Dimensional Drawing
