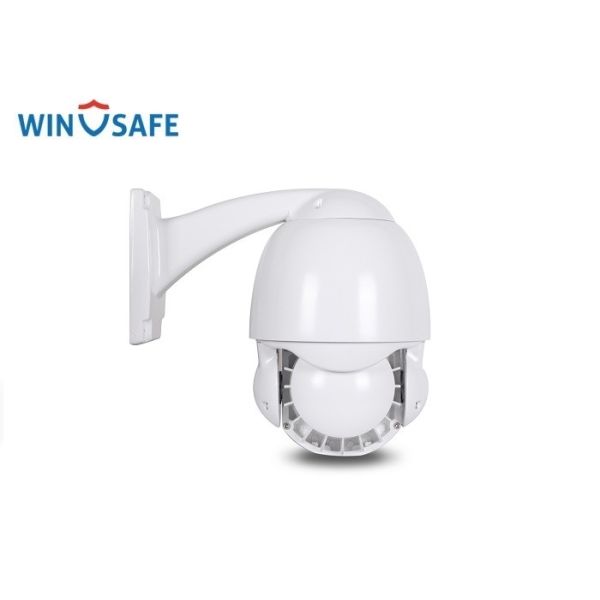

IR - Cut Digital PTZ Camera Support OSD Menu IP66 With Multi - Languages
IR - Cut Digital PTZ Camera Support OSD Menu IP66 With Multi - Languages
IR - Cut Digital PTZ Camera Support OSD Menu IP66 With Multi - Languages
IR - Cut Digital PTZ Camera Support OSD Menu IP66 With Multi - Languages
Specifications
Brand Name :
Winsafe
Model Number :
WS-BT51F-N
Certification :
CE, FCC
Place of Origin :
China
MOQ :
1 pieces
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
10000pieces
Delivery Time :
5-8 work days
Packaging Details :
Neutral packing
Ingress Protection :
IP66
Pan Range :
0°~360°
Tilt Range :
0°~93°
D/N :
IR-CUT
Software Control :
IE, CMS, Management Platform
Quick Command :
PELCO instruction set
Audio Compression :
G711,PCM
IR Distance :
60 meters
Description

Waterproof IP66 Outdoor IP HD IR Distance 60 Meters Medium Speed Dome PTZ Camera with POE

Feature

※ 4.5" double layer mental body construction, medium speed dome with OSD
※ 1/3" CMOS, 2.0/5.0 Megapixels, 10x optical zoom(5.1mm-51mm)
※ HD-IP digital interface output, 1080P high definition image
※ PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
※ IR distance 60M
※ Support P2P function
※ OSD menu is available
※ ONVIF2.2 compatible
※ Compatible with DAHUA , HIKVISION , XM and so on
※ Compatible with AXXON , Milstone , NUUO
※ Support OSD menu with multi-languages, UTC

Specification

Model No. WS-BT51F-N
DSP HI3516C HI3516D
Sensor 1/3" Sony IMX323 1/3" AR0521
Pixel 200W 500W
Resolution Ratio 1920*1080@25fps / 1920*1080@30fps 2592*1944@15fps / 2592*1944@22fps
Lens f=5.1mm-51mm
Optical Zoom 10X
Digital Zoom 10X
Min. illumination Color: 0.1Lux B/W: 0.01Lux / IR ON:0 Lux
D/N IR-CUT
AGC Auto/manual
WB Auto/manual/indoor/outdoor
S/N Ratio ≥50dB(AGC OFF)
Rotation Range Pan: 0°~360° Tilt: 0°~93°
Horizontal Rotation Speed 0.02°/s-45°/s
Tilt Rotation Speed 0.02°/s-30°/s
Auto Flip Horizontal 180°, Vertical 93°
A-B Scan User programmable
A-B Scan Speed 1-9 levels setting available
Communications Protocol TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
Software Control IE, CMS, Management Platform
Network Security HTTPS,802.1X,IP ADDRESS FILTERING
Quick Command PELCO instruction set
Mobile View(optional) Support android/ios smart phone
APP Hisee
Video Compression H.264/H.265/M-JPEG
Audio compression G711,PCM
Audio Frequency Optional
Dwell Preset 1-60s interval available
Preset Points 220
Go to Preset Speed 1-64 levels available
PWR On Action Memory/Tour 1/360° scan/A-B scan/Preset 1-8/None
Park Time 1-60mins available
Guard Tours 3 groups
Guard Points Max.16 points, dwell time user selectable
Operation menu English etc
Pan and Tilt position display Support
Auto Control IR LED PWM
LEDs Array 42Mil, 6 pieces IR LED
Lightning Protection Transient voltage 6000V
IR distance Up to 60 meters
Support ambient light detection IR illumination on 1-9 grades selectable;
Operating temperature Outdoor: -40°~ +60°
Operating Humidity ≤95% Non Condensing
Power DC12V 3A
Consumption ≤15W
Ingress Protection IP66 (Outdoor)
Packing Case Size 30.5cm x 28cm x 20.5cm/PCS(L*W*H) / 60cm x 34cm x 43cm/4PCS (L*W*H)
Weight N.W 2.51KG/G.W 4.5KG

Demension drawing
