Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls
Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls
Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls
Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls
Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls
Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls
Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls
Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls
Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls
Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls
Specifications
Brand Name :
H&S
Model Number :
P1.9/P2.6/P3.9
Certification :
KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001
Place of Origin :
Shenzhen China
MOQ :
1SET
Payment Terms :
L/C,T/T
Supply Ability :
1000SET
Delivery Time :
7-15work days
Packaging Details :
Fight case/Wooden case/Honeycomb Box
Name :
indoor Ultra-Thin double side LED Display
Application :
Indoor
pixels :
P1.95 P2.5 P2.976 P3.91
Resolution :
3840×2160 (4K), 7680×4320 (8K)

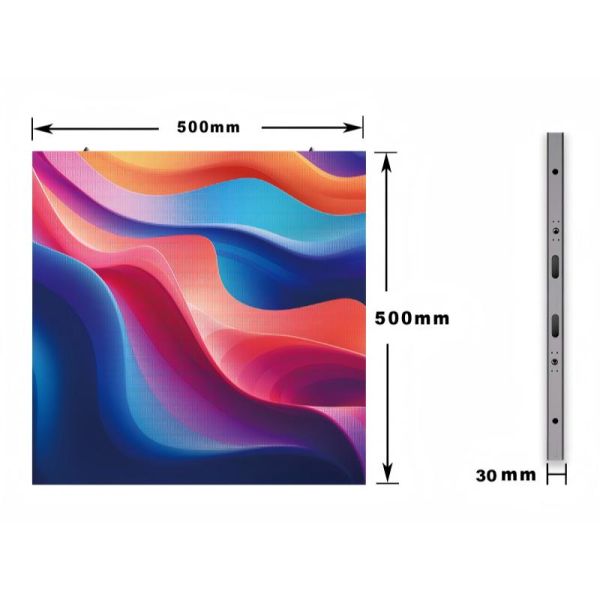

module size :
250*250mm
Cabinet size :
500*500mm
Viewing Angle :
170°/170°
Cabinet Material :
Diecasting Aluminum
Ingress Protection(Front/Rear) :
IP65
Refresh Rate :
7680Hz
Working voltage :
AC 110-220±10% or 110±10%
Description

Indoor Ultra-Thin Double-Sided LED Display Screen

Advertising Led Video Wall / Indoor Fixed LED Display

Ultra-Thin Double-Sided LED Window Display

Hanging LED screen for Shop Advertising

Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls

Double-Sided Full Color 4K LED Display Screen

Ultra Thin Double Side Indoor Hanging HD LED Video Wall

Ultra-thin led display Paramenters:
Pixel Pitch
P1.56
P1.95
P2.604
P2.976
LED Type
SMD1212(GOB)
SMD1515(GOB)
Physical density
(Dots/sqm)
409600
262144
147456
112896
Module Dimension(mm)
250x250
Module Resolution
160x160
128x128
96x96
84x84
Panel size(mm)
500x500x30
Maintenance
Front access
Panel Material
Profile Aluminum
Brightness(Nits)
600-3000
Color temperature(K)
3200-9300 (Optional)
View Angle
160°(H)/160°(V)
Brightness /Color Uniformity
≥97%
Contrast Ratio
10000:1
The Max Power Consumption(W/㎡)
650
Average Power Consumption(W/㎡)
100-240
Protection Level
IP45
Input Voltage
AC90~264V 50--60Hz
IC Driving Mode(s)
1/40
1/32
1/32
1/28
Color Grey scale(bits)
14/16 (Optional)
Refreshing Ratio(Hz)
7680
Lifespan(hrs)
100,000hrs
Work Temperature/Humidity
-20℃-60℃/10%RH-85%RH (Non Condensing)
Storage Temperature/Humidity
-20℃-60℃/10%RH-98%RH (Non Condensing)

The core advantages of Ultra Thin Double Sided LED Display are its lightweight and compact design, dual sided independent display, high efficiency and energy saving, flexible installation, and the ability to customize LED screen sizes. The double sided LED display can achieve double information/advertising value and is suitable for multiple scenarios such as business, transportation, cultural tourism, and office.

Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls

Ultra-thin led display advantage:

Lightweight, thin, and flexible to install


Our indoor ultra-thin LED display screen has a single-sided thickness of 24mm, and double-sided LED display screens are usually ≤ 30mm. The weight of a single box is light (such as 4.8kg/box, 23kg/㎡), greatly reducing the structural load-bearing requirements.
The double-sided LED display screen supports various installations such as lifting, glass pasting, embedded, column type, and mobile bracket, without the need for complex keels, and is suitable for narrow/irregular spaces.

Double sided independent display


The ultra-thin LED display screen can play different content synchronously/asynchronously on both sides, achieving "one screen dual use" and significantly improving space utilization and dissemination efficiency.
The ultra-thin double-sided LED display supports independent brightness/refresh rate/resolution settings, adapting to different viewing distances and environments.

High definition and smooth


Our indoor ultra-thin double-sided LED display screen adopts a high refresh rate (greater than 7680Hz), with no flicker or ghosting, and clear camera shooting.
High brightness, high contrast, visible under strong light; The brightness supports automatic adjustment.

energy-saving and low-consumption


Indoor ultra-thin LED display screens adopt advanced common cathode circuit and other technologies, which save more than 30% energy compared to traditional screens, have low heat generation, natural heat dissipation, and do not require additional heat dissipation systems.
The ultra-thin LED display screen supports 24-hour continuous stable operation and can meet the needs of different scenarios.

Safe and durable, easy to maintain


Lightweight design reduces the risk of falling, equipped with anti fall ropes and seismic components; The ultra-thin LED display adopts a modular structure, and a single fault can be quickly replaced. Full front maintenance method, easy installation, and simple maintenance.
The indoor ultra-thin LED double-sided display screen adopts advanced module GOB technology, and the module surface is waterproof, dustproof, and anti-collision, adapting to complex environments.

Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls

Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports/Shopping Malls

Company Products and Advantages Introduction:

Shenzhen H&S Innovation Technology Co., Ltd specializes in the manufacturing and supply of a diverse range of LED display screens that cater to various indoor and outdoor needs. Our products including Ultra-thin LED display screen,COB LEDdisplay,Round Led Display,Poster LED Display /LED Mirror Screens ,Outdoor Street Pole Led Screen,Outdoor 3D LED Display Screen, Indoor LED Display , LED Circular Screen, Creative LED Display Screen, LED Soft Screen, and LED Ball Screen.
Indoor led display screen -----Ultra-thin LED display screen
Double-sided LED Display Screen ,Screen thickness: 24mm (single-sided), 30mm (double-sided) , Refresh rate: 7680Hz Weight: 20kg/square meter , Installation methods: Ceiling mounting, side mounting, wall mounting ,Material: Aluminum profile cabinet, lightweight and thin ,The screen uses a rigid connection design, eliminating the need for wiring during module installation, making it convenient and quick! ,Cabinet sizes available: 500*500mm.
Outdoor advertising LED Display:
The Outdoor 3Ddisplay screen are designed to provide an immersive and engaging visual experience outdoors. With their advanced 3D technology, they can display stunning graphics, videos, and animations that capture the attention of passersby. They are perfect for advertising, events, and entertainment venues.
Poster led Display:
The led poster display screens combine the functionality of a traditional poster with the dynamic capabilities of an LED display. The LED poster screens can display digital posters, animations, and videos, while the LED mirror screens offer a reflective surface when turned off and can display content when turned on. They are ideal for retail stores, restaurants, and other commercial spaces.
LED Pole Screen:
The street light pole display screens are designed to be mounted on poles or columns, making them perfect for displaying information or advertising in high-traffic areas. They can be used in streets, malls, and other public spaces to provide real-time updates, promotions, and announcements.
Round Led Diaplay:
The LED circular screens are unique and eye-catching, making them perfect for creating a focal point in any space. They can be used for branding, advertising, and displaying information in a circular format.
Creative Led Diaplay screen:
HSCXLED creative LED display screens offer endless possibilities for customization and creativity. They can be designed to fit any shape, size, and specification, making them perfect for unique and eye-catching displays. Whether you need a custom-shaped screen for a specific event or a unique design for your brand, we can help you bring your vision to life.
