Specifications
Brand Name :
HSCXLED
Model Number :
p0.9/p1.2/p1.5/p1.8
Certification :
KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001
Place of Origin :
SHENZHEN
MOQ :
1SET
Payment Terms :
L/C,T/T
Supply Ability :
1000SET
Delivery Time :
7-15work days
Packaging Details :
Fight case/Wooden case/Honeycomb Box
Name :
P1.25 led video wall
Application :
Indoor led Video Wall
Pixel configuration :
COB 1R1G1B Flip-chip
Configurations :
COB
module size :
150*168.75mm
Cabinet size :
600*337.5mm
Cabinet Material :
Die-casting Aluminum
Brightness :
600-800nits
Contrast Ratio :
5000:1
Viewing Angle :
160°, 170°
Refresh Rate :
3840Hz-7680hz
Working voltage :
100-240V
Screen Type :
Indoor Advertising LED display
Display Function :
Video/ Text/ Picture/Animation/ Graphics
Description
Cob Led Display Screen detail:

HD LED Video Wall LED Display Panel LED Screen

* Multi Pixel Pitch For Options:P0.9/P1.2/P1.5/P1.8
* Panel size: 600*337.5mm & 16:9 resolution
* High brightness 3840Hz refresh rate.
* Nova star control system indoor HD led screen
* UHD series led panel specially use for TV studio,conference center,monitoring center and cinema, museum, ect.
* Seamless connection, high contrast ratio, high refresh rate, 16 bit high gray level.
* Front Service: Magnetic Module Ergonomic design, aspect & resolution ratio 16:9, easy to reach 2K,4K,8K HD requirements.
* High contrast, high refresh, and high gray output, and the screen display is more high-definition and delicate.

P1.2 Small Pitch Led Display / Cob Led Display Screen For Home Theater

Cob Led Display Specification:


Indoor Small Pixel Pitch HD LED Video Wall LED Display Screen
Item P0.93mm P1.25mm P1.56mm P1.87mm
Pixel Pitch 0.93mm 1.25mm 1.56mm 1.87mm
LED Chip MiniLED SMD1010 SMD1212 SMD1515
Module Size 300x168.75mm
Module Resolution 320x180pixel 240x135pixel 192x108pixel 160x90pixel
Cabinet Size 600x337.5mm
Cabinet Resolution 640*360pixel 480x270pixel 384x216pixel 320x180pixel
Scanning mode 1/60 1/60 1/64 1/45
Maintenance Full front service
Brightness ≥800CD
Refresh rate ≥3840Hz-7680Hz
Viewing angle 160° (V/H)
Contrast ratio 5000:01:00
Working voltage(input) 100-240V, 50/60Hz
Max./Avg.Power consumption Max: 500W/M2 Ave: 165-260W/M2
Working temperature -20°C-50°C
IP ratings IP45
Signal output HDMI/VGA/DVI/DP/SDI...
Life Span 100000hours
Certification KC/CE/FCC/CCC/ROHS/ISO9001


Cob Led Display Screen Features:


1. Featuring high refresh, contrast, and grayscale levels, the image is more high-definition and delicate;


2. The box is lightweight and easy to install, disassemble, and transport;

3. Humanized power supply and signal indicator light, convenient for discovering faults and timely troubleshooting;

4. Adopting professional aviation plugs, ensuring quality and safety;

5. It can be designed in a curved shape, making the design and installation more diverse;

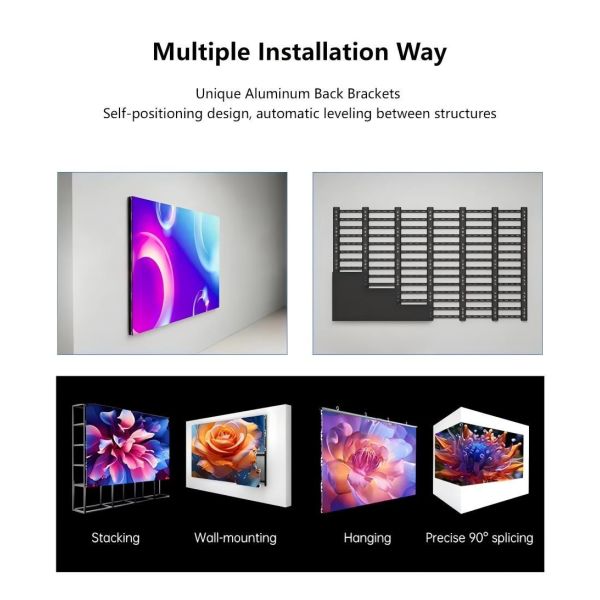

6.Multiple installation methods to choose from, including stacking, hanging, lifting, etc

P1.2 Small Pitch Led Display / Cob Led Display Screen For Home Theater


Ultra-fine pitch COB LED display with 4K/8K UHD resolution, delivering crystal-clear images without graininess even at close viewing.

Fully encapsulated structure for waterproof, dustproof and anti-static performance, ensuring high reliability and long lifespan.

High contrast, wide viewing angle and efficient heat dissipation, perfect for control rooms, conference rooms and high-end commercial spaces


HSCX​LED- LED display manufacturer:

1. Wide application field & short ROI time:

commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media,shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen；air port LED display screen, telecommunication LED display screen system for information showing and instruction .
2. High Contrast ratio: 4000:1

Which is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip:

Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display screen system
4. Clear vivid image quality:

Even in direct, full-on sunlight to ensure you attract more audience to get short ROI of your LED display screen's investment.
