Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen
Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen
Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen
Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen
Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen
Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen
Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen
Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen
Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen
Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen
Specifications
Brand Name :
HSCXLED
Model Number :
P1.9/P2.6/P3.9
Certification :
KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001
Place of Origin :
shenzhen,China
MOQ :
1set
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability :
1000set/30day
Delivery Time :
10-15workdays
Packaging Details :
Wooden case/Honeycomb Box/Fight case
Product Name :
Hanging Double Sided LED Display Screen
Pixel Pitch :
P1.56/P1.95/P2.6/P2.9
LED configuration :
SMD(GOB)
Module Size :
250*250mm
Panel Size :
500*500mm
Display size :
Customize according to module size
Cabinet Material :
Aluminum profile cabinet
Maintenance Method :
Pre-maintenance
Refresh rate :
≥7680HZ
Brightness :
600nit-3500nit (adjustable)
Input Voltage :
AC100-240V
Control System :
NovaStar / Colorlight / HUIDU
Control Methodion Method :
Wifi/USB/4G/Phone, IPad, PC,LAN
Description

Indoor Double-Sided LED Screen

Cabinet size:500*500mm
Pixelpitch:P1.56/P1.95/P2.6/P2.97

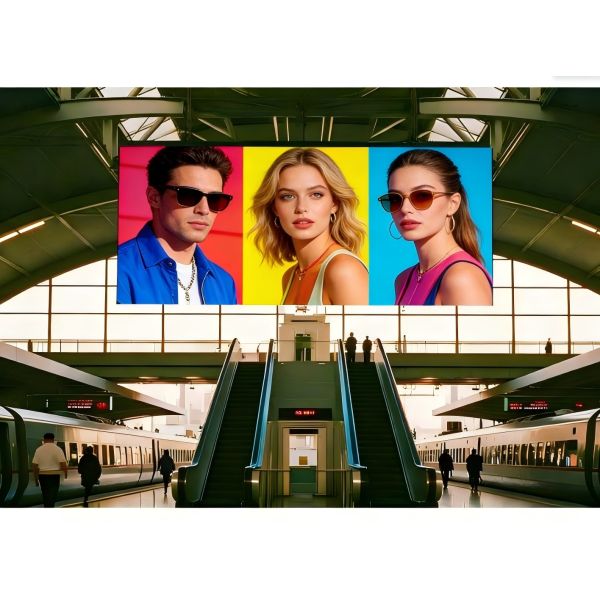

Usage environment:Window Display, Shopping Malls, Stores, Signage, Train Station, Subway, Restaurant, Meeting Room, Living Room, Indoor Use, International, Indoor Fixed Installation

Mounting options:Wall Mount, Ceiling Mount, Floor Stand, Custom Mount

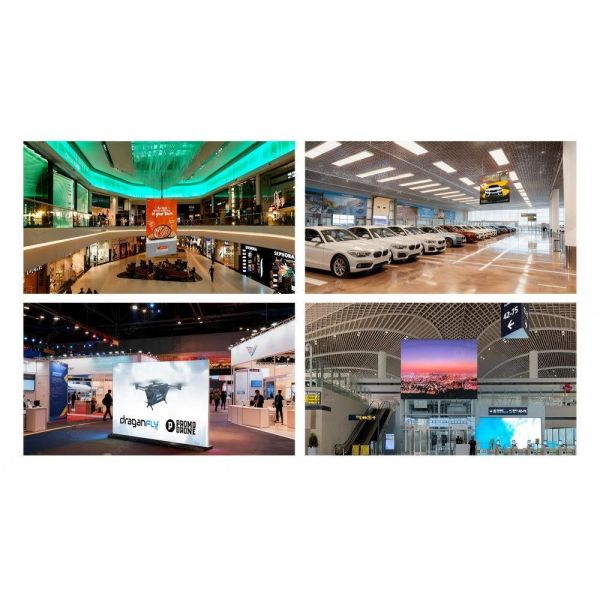

Widely used in indoor display,monitoring,commercial media,etc.It can be installed in many indoor places such as supermarkets,large shopping malls,commercial buildings,corporate and government units,factories,cinemas,private swimming pools,sports fields,training centers,etc.
Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen

Ultra Thin LED Screen Paramenters:

HSCXLED-Ultra-Thin Double-Sided LED Display
Model P1.56 P1.95 P2.6 P2.9
Pixel pitch 1.56mm 1.95mm 2.6mm 2.976mm
LED configuration SMD 1212 SMD 1515 SMD 2020 SMD 2020
Module size 250*250mm 250*250mm 250*250mm 250*250mm
Cabinet size 500mm*500mm 500mm*500mm 500mm*500mm 500mm*500mm
Scan mode 1/40 scan 1/32 scan 1/32 scan 1/21 scan
Pixel matrix per Module 160*160 dots 128*128 dots 96*96 dots 84*84 dots
Pixel density 409600(dots/sqm) 262144(dots/sqm) 147456(dots/sqm) 112896(dots/sqm)
Cabinet Resolution 320*320dots 256*256 dots 192*192 dots 168*168dots
Thickness of LED display (24mm/30mm)
(Single-sided/Double-sided)
Cabinet Material Aluminum profile cabinet, lightweight and thin
Display size Splicing any size according to the cabinet size
Maintenance Method Pre-maintenance
Refresh rate ≥7680HZ
Brightness 650nit-3000nit (adjustable)
LED display screen supports adjustable brightness on both sides
Ingress Protection IP40
view angle(h/v) ≥ 160°/140°
AC Input Voltage AC 110V/220V±10%,50Hz/60Hz
Gray Level 14-16bit
Working Temperature -40 -50(℃)
Operating Humidity 10%~95% non-condensing
Media available Datasheet, EDA/CAD Models, Other, Photo ,video,3D,and other formats
Mounting options Lifting/Side Installation/Fixed Installation/
Ceiling Mount,/Custom Mount/Floor Stand/Wall Mount
Life Time ≥ 100000(Hours)

Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen

Double side display & Light weight

This LED display screen is developed and customized by the HSCXLED team. It is the first indoor ultra-thin LED display screen, with the core advantage of unlimited customization of screen size. Compared with traditional LED displays, this LED screen has a thickness of only 24mm and a double-sided thickness of 30mm. It is lightweight, easy to install, and saves space. The HSCXLED ultra-thin LED display screen is customized with aluminum profiles, making it ultra light. The weight of a single box (500 * 500mm) is only 4.8KG,(The weight of a single side of an ultra-thin LED display screen is 18kg/square meter; The weight of the double-sided LED display screen is 23kg/square meter)

Full front maintenance and easy installation
Pre installation and maintenance design,Ultra thin aluminum cabinets have the advantages of light weight,high flatness,The internal structure is simple and does not require complex wiring.The double-sided display LED screen has a slim profile,Ultra thin LED display screen adopts full front maintenance method, with easy disassembly of LED modules and single repair mode, saving you labor costs.
Hots wapping·wireless connection
The hard connection design between the module and the box;Completely eliminates the constraints of wires；5V line design with extremely low failure rate;All aluminum box,fast heat dissipation.
Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen
High quality LED display screen
LED Display Cabinet,High integration,high flatness,excellent layout,no complex circuits.

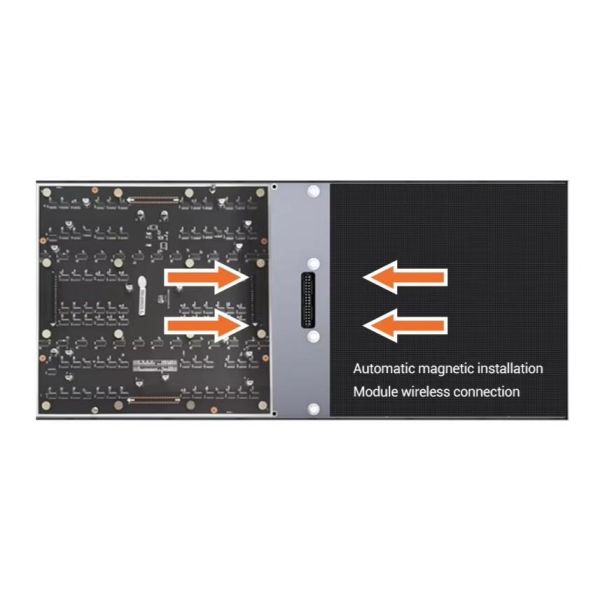

LED Module:Module wireless connection,Automatic magnetic installation;UL certificate power Ensured stable,LED screen operation.supply with input 100~240V,50/60Hz,can work globally with worry-free.
Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen
Ultra Thin Double Side Indoor Hanging LED Display Screen
Double Side Display: Support dual sided separate display/shared display;360°all-round display,every side is exquisite.
High Refresh:The higher refresh rate,the better stability of display effect image,which can play much clearer and stronger dynamic images for a bette rvisual experience,HSCXLED Double Sided LED Display high refresh rate can reach up to7680Hz.
High Grayscale:Rich display colors and exquisite picture details,Ours led display screens high grayscale up to16 bits.

High Brightness:Ours display are crafted to deliver vibrant colors and sharp details,making every image stand out.And this double-sided LED display screen supports different brightness levels on both sides,(For example, if you install it in a shop window, the brightness of the display screen facing the street can be over 3000 uints, and the display screen facing the inside of the shop can choose to be 650 uints)

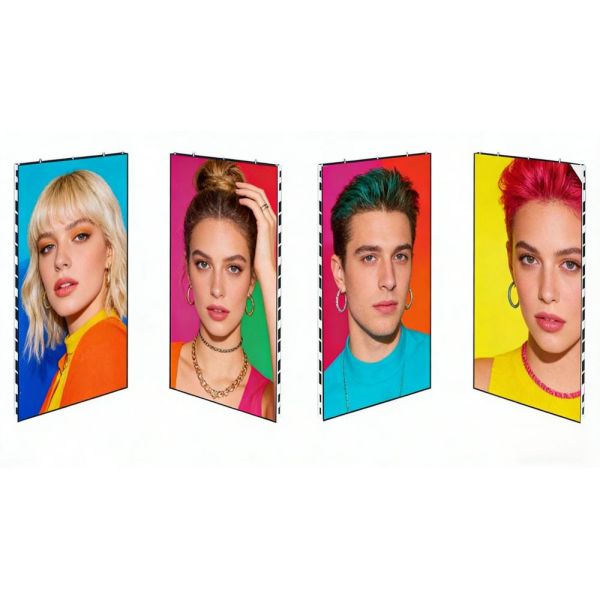

Dual-sided led poster display shows identical or independent content on both sides—perfect for airports, malls, and elevator lobbies to double audience engagement.
Ultra-thin 24mm cabinet and lightweight 6.8kg per panel enable one-person installation (hanging or stacking)—50% slimmer than conventional led screen poster solutions.
Choose from P1.5 / P1.9 / P2.6 / P2.9 pixel pitches with 7680Hz refresh rate, 5000:1 contrast, and 14-bit grayscale for stunning close-view clarity in retail stores and showrooms.
Poster led screen supports Wi-Fi / 4G / LAN / USB / cloud control—update content remotely via phone, schedule multi-site campaigns, or integrate via API for system integrators.
Full front maintenance, die-cast aluminum heat dissipation, optional redundant power, and 5-year warranty ensure maximum uptime for event companies, architects, and digital signage providers.
Ultra Thin Double Side Indoor Hanging HD LED Video Wall Panel Display Screen
