Diameter 4m P3 Outdoor Waterproof Led Video Wall Circle Led Display Screen
Diameter 4m P3 Outdoor Waterproof Led Video Wall Circle Led Display Screen
Diameter 4m P3 Outdoor Waterproof Led Video Wall Circle Led Display Screen
Diameter 4m P3 Outdoor Waterproof Led Video Wall Circle Led Display Screen
Diameter 4m P3 Outdoor Waterproof Led Video Wall Circle Led Display Screen
Diameter 4m P3 Outdoor Waterproof Led Video Wall Circle Led Display Screen
Diameter 4m P3 Outdoor Waterproof Led Video Wall Circle Led Display Screen
Diameter 4m P3 Outdoor Waterproof Led Video Wall Circle Led Display Screen
Specifications
Brand Name :
HSCXLED
Model Number :
P3
Certification :
KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001
Place of Origin :
Shenzhen China
MOQ :
1set
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability :
1000set/30day
Delivery Time :
10-15 workdays
Packaging Details :
Wooden case/Honeycomb Box/Fight case
Product Name :
LED Display Screen
Pixel Pitch :
P3
Color Depth :
Full Color
keyword :
circle led screen display panel
brightness :
5000-7000nits
Usage :
Outdoor Adverting LED Display
Refresh Rate :
3840Hz
ip rating :
IP65
Viewing angle :
160H/160V
Input Voltage :
AC110~240V
Control system :
Synchronous/Asynchronous/4G Wireles/USB/LAN
Display Function :
Video/Text/Picture/Time/3D Text/Office/SWF
Control System :
NovaStar / Colorlight /huidu/ Mooncell...
Product Type :
Outdoor LED Circular Display Screen
Description
Outdoor LED circular screen (also known as circular cake screen or circular LED sign) is a special shaped full-color LED display device designed for outdoor scenes. It is composed of customized modules/circular modules spliced together, with high recognition appearance and stable outdoor weather resistance. Unlike traditional rectangular screens and spherical screens, LED circular screens support size customization and single/double-sided LED display screens.
Outdoor LED round screen is high-definition and high refresh, 4G/WIFI/wired multiple control modes transmit and replace data through computers or mobile phones. Easy to understand control mode and unique creative design are widely used in shopping malls, hotels, restaurants, clubs, exhibition halls, museums, etc. Convenient and fast installation methods include hanging, inlaying, landing, etc.
Diameter 4m P3 Outdoor Waterproof Led Video Wall Circle Led Display Screen
Outdoor P3 Round LED Display Specification:
PH3 -Outdoor Roud Led display
Pixel point parameter:
1 LED SMD1515
2 Pixel Pitch 3mm
3 Pixel composition 1R1G1B
4 Features Waterproof and UV-resistant
Module technical parameters:
1 Module resolution 111111 dot / m²
2 Module size (W * H) 48*48mm/96mm*96mm/192*192mm
Screen body technical parameters:
1 Full screen size Diameter 1m/2m/3m/4m/5m/6m......
2 dot density 111111dot/m²
3 screen resolution customize
4 Brightness 5500cd/m² (white field color temperature 6500K)
5 Horizontal view/vertical view 160°/160°
6 Best visual distance (m) 3-200m
7 flatness ≥99%
8 Chroma uniformity ±0.003 Cx,Cy
9 service life >100,000 Hours Theoretical value
10 way to install Side hanging, Mosaic, wall hanging, lifting
11 Protection Class IP65
System control parameter:
1 Signal color processing bits Red, green, and blue ≥14bit
2 type of drive Constant current drive 1/16 scan
3 repetition frequency 60 frames per second
4 refresh rate ≥3840HZ/S
5 maximum power 200W/m²
6 average power 800W/m²
7 Operating Temperature Range -40°C~+60°C
8 Screen color temperature 2000K-9500K is adjustable
9 brilliance control Manual/automatic/program control
10 control mode Asynchronous control/mobile APP, WIFI, U disk, cloud platform

Diameter 4m P3 Outdoor Waterproof Led Video Wall Circle Led Display Screen
Outdoor circular LED display screen feature:

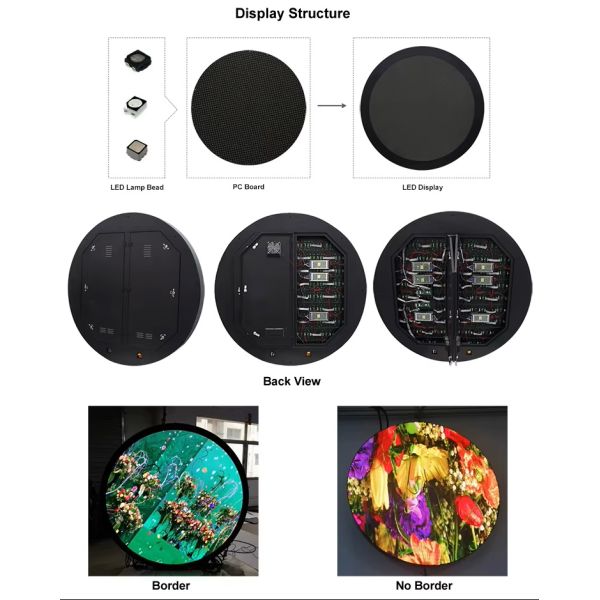

Structure and Technology:

HSCXLED - Outdoor P3 LED circular screen adopts modular design, which is easy to transport, install and maintain; The protection level should reach IP65- IP67; Equipped with high brightness LED beads (5000-8000cd/㎡, supporting automatic brightness adjustment), suitable for strong daytime light and anti light pollution needs at night; Pixel spacing P3, customized module, LED display screen diameter size can be customized, we have multiple sizes to choose from, diameter 1m/1.5m/2m/3m/4m/5m/8m, etc.
Display characteristics:

The circular LED display supports full-color dynamic videos, graphics, and text, with a high refresh rate (≥ 3840Hz) to avoid flicker; The viewing angle is wide (horizontal/vertical 160 °+), and some circular/360 ° screens can achieve all-round viewing without blind spots.
Strong visual impact:

Non rectangular circular shapes easily stand out in outdoor advertising LED display and landmarks. Relevant research shows that circular LED screens have significantly higher click through rates than traditional rectangular screens, making them suitable for creating differentiated brand exposure.
360 °/wide viewing angle coverage:

HSCXLED - Alien LED display supports ODM/OEM, with circular or full circle design that can cover more directions of pedestrian flow, without the need for multiple screens to be spliced, saving costs and improving space utilization.

Good environmental adaptability:

The outdoor circular LED display screen adopts industrial grade temperature resistant chips (-20 ℃~60 ℃), efficient heat dissipation, and anti UV coating, which can adapt to outdoor environments with sun, rain, and drastic temperature changes.
Flexible content:

The outdoor circular LED display screen supports remote control, time-division playback, and one click content exchange, and is suitable for different scenarios such as promotions, public welfare, and holiday themes.
Round LED Display advantage:
*The round LED screen is a modern and creative LED display, its shape is a circle.High Resolution.3 to 200 meters from the screen visual distance can obtain excellent viewing effect.
*Different from traditional rectangle LED screen, it has exclusive visual attraction and suitable for applications requiring a unique and eye-catching display.
*As the development of advertising market and needs for creative LED screen, the circle LED screen has becoming a powerful tool to draw pedestrian interest and expand advertising impact.
*In response to changing market trends and need for personalized solutions, these innovative LED screens have been enhanced to meet diverse and unique needs,
*The uniquely shaped circular LED screen stands out with its distinctive design, providing a rich and engaging visual experience that sets it apart from traditional displays.

* Easy Operation,The simple structure and easy operation enable clients to save money,labor and worries.Widely Applications,commercial dining,glasses shop,sports,transportation,special places, theme parks,etc.
