P4.81 Rental LED Video Wall Panels 500mm x 500mm /500mm x1000mm Die - Cast Cabinet
P4.81 Rental LED Video Wall Panels 500mm x 500mm /500mm x1000mm Die - Cast Cabinet
P4.81 Rental LED Video Wall Panels 500mm x 500mm /500mm x1000mm Die - Cast Cabinet
P4.81 Rental LED Video Wall Panels 500mm x 500mm /500mm x1000mm Die - Cast Cabinet
P4.81 Rental LED Video Wall Panels 500mm x 500mm /500mm x1000mm Die - Cast Cabinet
P4.81 Rental LED Video Wall Panels 500mm x 500mm /500mm x1000mm Die - Cast Cabinet
P4.81 Rental LED Video Wall Panels 500mm x 500mm /500mm x1000mm Die - Cast Cabinet
P4.81 Rental LED Video Wall Panels 500mm x 500mm /500mm x1000mm Die - Cast Cabinet
Specifications
Brand Name :
Viso
Model Number :
PH4.81
Certification :
UL CE ROHS ISO ETL SGS SAA Fcc EMC
Place of Origin :
China
MOQ :
1 Square Meter
Price :
Negotiation
Payment Terms :
L/C T/T Western Union Paypal Credit Card, MoneyGram, VISA
Supply Ability :
6000 square meters per month
Delivery Time :
4-6 work days
Packaging Details :
Wooden box or Flight case
LED Configuration :
1R1G1B full color
Led Type :
SMD 2121 black
Scan Driver :
1 / 13 scan
Module size/mm :
250mm X 250mm
cabinet size :
500mm*500mm/500mm*1000mm
Life span :
>100,000hours
Working vlotage :
110-220 VAC/+/- 10% ; 50~60HZ
Refresh rate Hz/S :
≥2000
Description

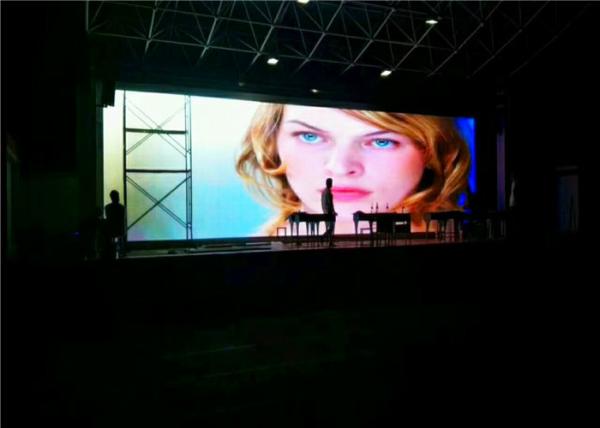

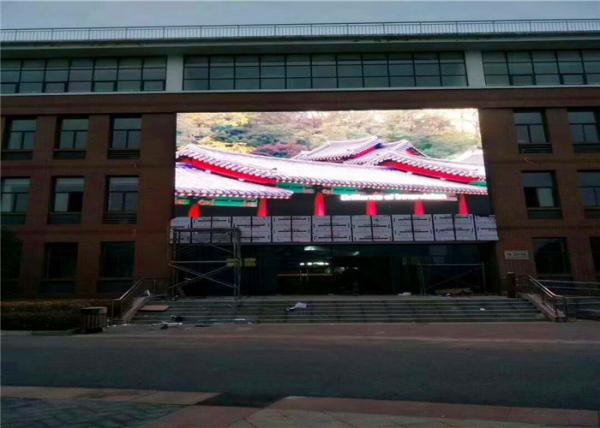

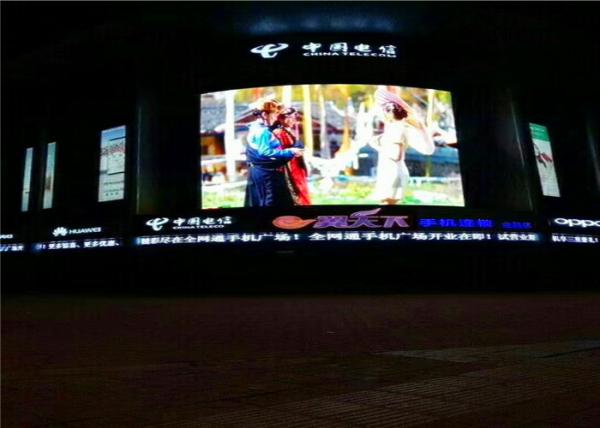

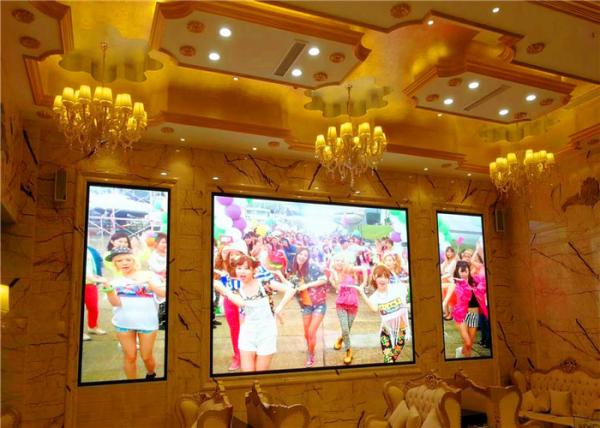

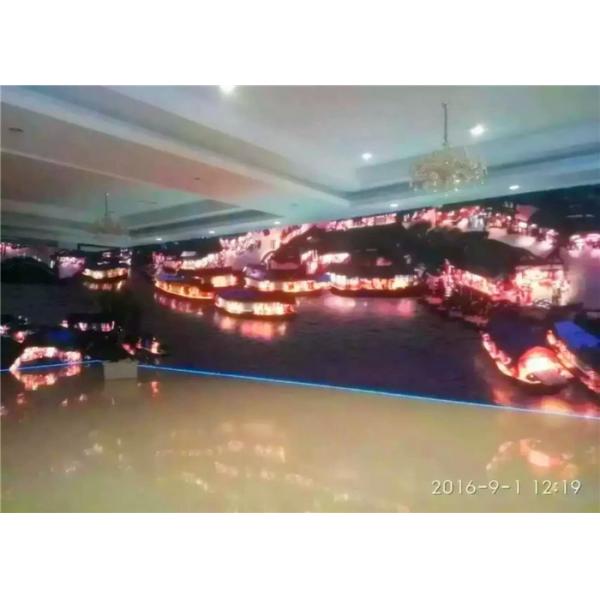

Application :

Outdoor led screen applicable to outdoor stage background, large -scale road shows ,exhibitions ,concerts , conferences ,sports events ,and other outdoor lease .

Outdoor led screens Specifications:

Pitch / mm P4.81
Pixel Density/(dots/m2) 43264
LED Configuration 1R1G1B
Led Type SMD 2121 black
Scan Driver 1/13 scan
View angle / ° V140/H140
Average power consumption/W/M2 280W
Max power consumption/W/M2 560W
Module size/mm 250 x 250mm
Module Resolution/Pixels 52 x 52
Size of cabinet/mm 500x500mm /500 x1000mm
Refresh rate Hz/S ≥2000
Luminance of white balance ≥5800nits
Best Viewing Distance/m 6-30m
Operation of Environmental Temperature/°C -20 ℃ ~ 50℃
IP rating IP31
Working vlotage 110-220 VAC/+/- 10% ; 50~60HZ
Grey scale/color displaying colors≥16.7M(synchronized)
Brightness adjustment 256 levels of each color(manually),100 levels of each color(automatically)
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition,etc
Control system linsn(sending card,receiving cards and Hubs);Nova
Average of non-failure life >50,000 hours
Life span >100,000hours
Functionaless dot rate <0.0001

Outdoor LED screen Features :


1 . Video function
2 . Text /image/information publish
3 . Advertising
4 . Safety function
5 . Accurate system:no error occurs.
6 . Response time :real time.
7. Reaction function
8 . Remote monitoring –details.
9 . Remote and step on powering system
10 . anti-lightening functions
11 . anti-high temperature functions
12 . System protection function The led display system has some protection functions of anti-high temperature, Anti-corrosion, pest control, waterproof, dust-proof, lightning protection, anti-static, wind, earthquake, anti-jamming systems.
13 . Set up parameter Brightness, grey scale, contrast ration, temperature parameter set up function.
14 . System extension function Video camera, HD camera, DVD, can be introduced into the system.

Outdoor Led Screen Feature :

1 . Light cabinet,more esay for carrying and installing ,saving cost.
2 . Achieving disassembly and replacement of any module in the screen within 10s,the rapid solution to any problem at the seene.
3 . Taking a separate layout instead of power cord and signal cable in the conventional screen,fast maintenance,to ensure .
4 . Product's modules,cabinet,power supply box with independent modular design,can truly achieve the function of quick maintenance for the secreen,and reduce afrer-sales costs.

led screen parts hd super thin led screen video 500 series made in china .

P4.81 Rental LED Video Wall Panels 500mm x 500mm /500mm x1000mm Die - Cast Cabinet
