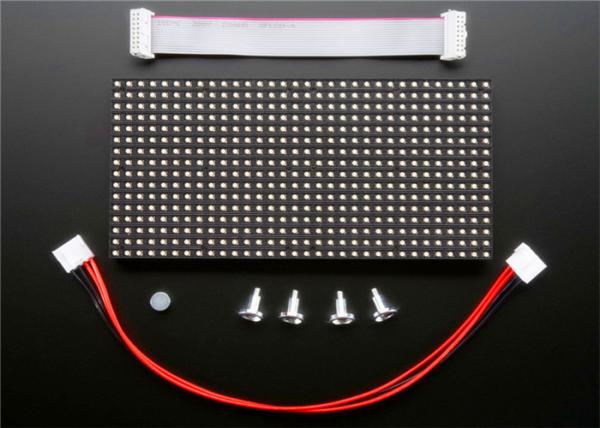

LED Video Board 64 X 32 Dots P3 LED Display Module Indoor Advertising Board DC5V
LED Video Board 64 X 32 Dots P3 LED Display Module Indoor Advertising Board DC5V
LED Video Board 64 X 32 Dots P3 LED Display Module Indoor Advertising Board DC5V
LED Video Board 64 X 32 Dots P3 LED Display Module Indoor Advertising Board DC5V
LED Video Board 64 X 32 Dots P3 LED Display Module Indoor Advertising Board DC5V
LED Video Board 64 X 32 Dots P3 LED Display Module Indoor Advertising Board DC5V
Specifications
Brand Name :
Viso
Model Number :
PH3
Certification :
UL CE ROHS ISO ETL SGS SAA Fcc EMC
Place of Origin :
China
MOQ :
1 PCS / 1 Unit
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA
Supply Ability :
8,000 square meters per month
Delivery Time :
4-6 work days
Packaging Details :
Carton box or Wooden case
LED Type3528 SMD :
2121SMD
Module Size :
192mm * 96mm / 192mm X 192mm
Input Voltage :
DC5V
Module Resolution :
64*32 / 64x64
Hub Type :
Hub75
Fresh Rate :
≥ 2800Hz
Pixel Density :
111111 Pixel/㎡
MTTF :
>10,000 Hours
Pixel Configuration :
1R1G1B(3 In1)
Driving Method :
1/16 Scan
Description

Led video board 64 X 32 Dots P3 LED Display Module Indoor Advertising Board DC5V

64x32 dots P3 LED Display Module SMD LED Screen Indoor Advertising LED Board

What Features of SMD 3-in-1 led screen?

1. Factory whole sale directly, complete specifications, adequate inventory. For each model, 5000~10000pcs in stock

2. First-class Taiwan LED chip.Supplied by Epistar of Taiwan & other high strictly selected LED chip to ensure the long lifetime and high brightness

3. High Contrast ratio: above 2000:1 .very high level to ensure a vivid image of our LED display screen system

4. Fast deliver time: 3~5days after payment confirm

5. Warranty: 2 years warranty and long term technology support and after sale service

Specification of SMD 3-in-1 led screen?

Specification Indoor LED P3 Module 3in1 SMD in Stock Indoor LED P3 Module 3in1 SMD in Stock
Model NO P3 LED module P3 LED Module
LED Assembly Mode SMD2121 SMD2121
Pixel Pitch 3mm 3mm
Pixel Density 111111 11111
Pixel configuration 1R1G1B 1R1G1B
Moudle resolution(L*H/dots) 64*32 64*64
Moduel size(L*H/mm) 192*96 192*192
Drive Mode 1/16 scan 1/16 scan
Refresh Rate ≥180Hz ≥180Hz
Bightness 1400cd/m2 1400cd/m2
Best Viewing distance ≥3m ≥3m
White Balance (X:Y:) 0.29 0.31
Grade Level 16.67 colors(full color type with synchronous control)
Viewing Angle Horizontally >160° / Vertically >130°
Screen Lifetime ≥ 100,000 hours
Driving IC MBI5024
Change Frame Frequency ≥ 60Hz
Control System

Color light,DBSTAR,Nova,Linsn
Ambient Temperature

-10°C ~ +45°C

(-14°F ~ 113°F)
Input Signal

RF S-Video RGB RGBHV

YUVYC, etc.
Brightness Adjustment 256 levels of each color (RGB) can be adjusted manually and 8 levels of each color can be adjusted automatically.

LED Video Board 64 X 32 Dots P3 LED Display Module Indoor Advertising Board DC5V

LED Video Board 64 X 32 Dots P3 LED Display Module Indoor Advertising Board DC5V
