Residential And Commercial 395W Monocrystalline Silicon Panels
Residential And Commercial 395W Monocrystalline Silicon Panels
Specifications
Brand Name :
LS
Model Number :
PT395
Certification :
IEC 61215/IEC 61730/ISO 9001/ISO 14001/ISO 45001
Place of Origin :
China
MOQ :
806 pcs
Price :
consult prices online
Payment Terms :
T/T
Packaging Details :
Per Pallet: 31 pcs (35mm) / 36 pcs (30mm) Per Container (40'HQ): 806 pcs (35mm) / 936 pcs (30mm)
Nominal Max. Power (Pmax) :
395W - 405W
Module Efficiency :
Up to 21%
Maximum Power Voltage (Vmp) :
30.75V - 31.35V
Maximum Power Current (Imp) :
12.85A - 13.01A
Open Circuit Voltage (Voc) :
36.77V - 37.09V
Short Circuit Current (Isc) :
13.71A - 13.95A
Temperature Coefficient (Pmax) :
-0.34%
Operating Temperature :
-40℃ ~ +85℃
Description

395W Monocrystalline Silicon Panels for and Reliability in Residential and Commercial

Residential And Commercial 395W Monocrystalline Silicon Panels

Product Description

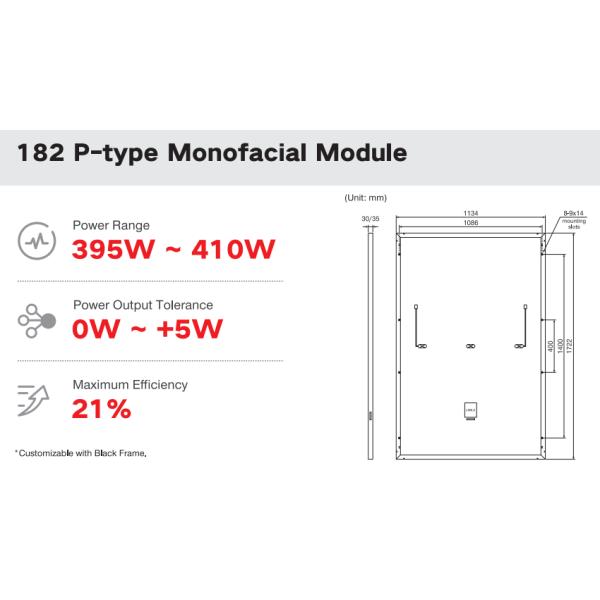

The 182 P-type Monofacial Module is designed with a focus on reliability and performance, offering a power range of 395W to 410W. Its maximum efficiency of 21% ensures optimal energy output, even in challenging environments. The module features multi-busbar (MBB) half-cut cell technology, which enhances its resistance to shade and reduces the risk of hot spots. This series is constructed with an anodized aluminum alloy frame and a highly transparent tempered glass, providing robust durability against environmental factors such as sand, dust, salt mist, and ammonia. The use of high-efficiency PERC cells further increases the module's resistance to potential-induced degradation (PID), ensuring long-term performance stability.

Electrical Performance Parameters |STC
Model Type 395D(HPM)
54(182)		 400D(HPM)
54(182)		 405DYHPM)
54(182)		 410D(HPM)
54(182)
Nominal Max.Power Pmax(W) 395 400 405 410
Max.Power Voltage Vmp(V) 30.75 30.95 31.15 31.35
Max.Power Current Imp(A) 12.85 12.93 13.01 13.09
OpenCircuit Voltage Voc(V) 36.77 36.97 37.17 37.37
Short Circuit Current lsc(A) 13.71 13.79 13.87 13.95
Module Efficiency (%) 20.23 20.48 20.74 21.00
Power Output Tolerance (W) 0~+5W
*STC:Iradiance 1000W/m²,Cell Temperature25℃,Air Mass AM1.5.
*Power measurement tolerance ±3%.
ElectricalPerformance Parameters |NMOT
Model Type 395D(HPM)
54(182)		 400D(HPM)
54(182)		 405D(HPM)
54(182)		 410D(HPM)
54(182)
Nominal Max.Power Pmax(W) 290 295 300 305
Max.Power Voltage Vmp(V) 27.64 28.00 28.38 28.72
Max.Power Current Imp(A) 10.50 10.54 10.58 10.62
OpenCircuit Voltage Voc(V) 34.68 34.83 34.98 35.13
Short Circuit Current lsc(A) 10.94 11.07 11.19 11.24
·NMOT:Irradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s.
·Power measurement tolerance ±3%.

Structure Performance
Solar Cell Type 182mm Mono-crystalline (Half Cell)
Solar Cel Arrangement 108pcs(6×18)
Module Dimension 1722×1134×35mm/30mm
Weight 21.7kg(35mm)/20.6kg(30mm)
Front Glass 3.2mm,highly transparent tempered glass
with anti-reflective coating
Back Sheet White
Frame Anodized Aluminum Alloy(White/Black)
Junction Box IP68 rated
Diode Quantity 3 pcs
Front side/Rear side 5400pa/2400pa
Connector MC4 Compatible
Per Pallet 31pcs(35mm)/36pcs(30mm)
Per Container(40'HQ) 806pcs(35mm)/936pcs(30mm)

Temperature Characteristics
Nominal Module Operating Temperature 44±2℃
Temperature Coefficient (Isc) +0.048%
Temperature Coefficient (Voc) -0.26%
Temperature Coefficient (Pmax) -0.34%

Maximum Parameters
Working Temperature -40~+85℃
Maximum SystemVoltage 1500V DC
Nominal Maximum Fuse Current 25A

Application

The 182 P-type Monofacial Module is ideal for large-scale solar projects, residential installations, and commercial applications where high efficiency and reliability are paramount. Its robust design and superior weather resistance make it well-suited for deployment in a variety of climates, including those with harsh conditions.
