Products Technical Specification

Type

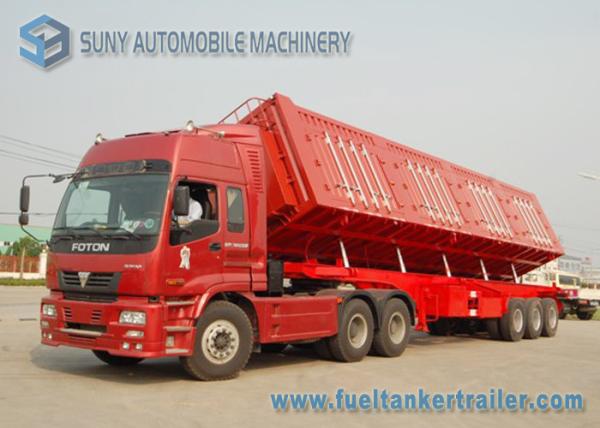

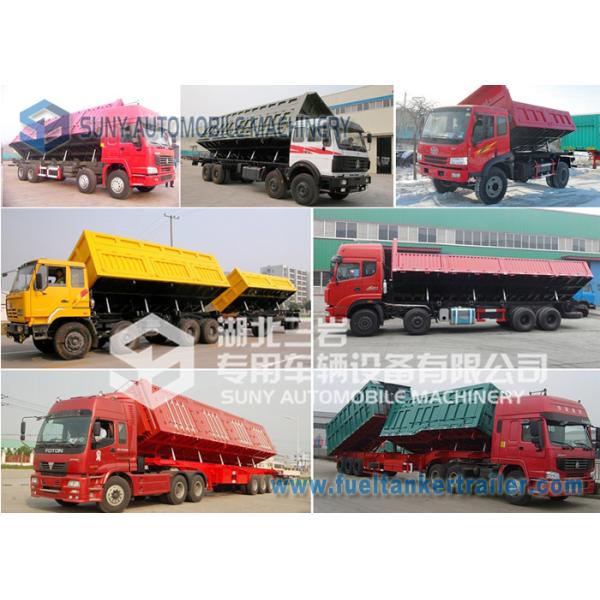

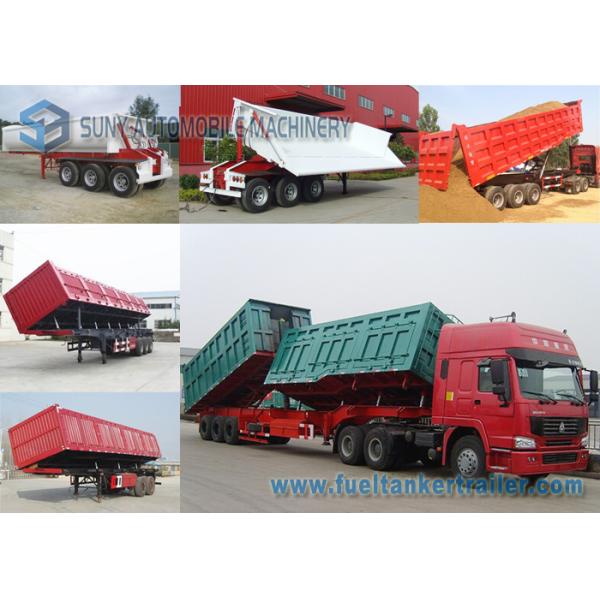

3 axles side dump trailer

Vehicle Description

Overall dimensions (mm)

13000 * 2500 * 2840

G.V.W (kg)

40000

Curb weight(vehicle) (kg)

8000

Loading capacity (kg)

60000

Dumper Body Description

Dump body size

12000 * 2450 * 1000 mm

Material and door

Steel Sheet ,10 side door , located in the right and left side , a back door ,

Volume

25-30 m³

Running Gear

Main Frame

Heavy duty and extra durability designed ; Opting for high tensile steel

Q345B , welded by automatic Submerged-Arc processes 480mm Height , Top Flange 14 mm ,width 140 mm ; Middle Flange 8 mm ;

Bottom Flange 16 mm ,

width 140 mm

Floor

Steel Sheet 3 mm thickness

Axle

3 axles

FUWA axle with 13 Ton

Suspension

FUWA suspension

Leaf Spring

13 * 90 – 10 - piece leaf spring.

King Pin

CHINA brand 90 MM Bolt-in King Pin

Landing Gear

CHINA brand Two-speed , manual operating ,

28 T heavy duty landing gear

Wheel Rim

8.0 * 2.0 wheel rim , 12 pieces

Tyre

11.00R20 Radial tire with one spare tire , 12 pieces

Lift ystesm

Five 150 # cylinder,and bilateral turned

Braking System

A system with emergency brake and parking brake ;

One unit of WABCO RE 6 relay valve ; 2 units of T30 / 30 spring brake chamber ; 2 unit of 40 L air tank .(each axle of front axle has a single air chamber . Double air chamber is installed on the rear axle , each has two. The total chamber quantity is 6 sets .)

Electrical System

One unit of MX-024 seven-core socket , licence lamp and later fog lamp ; two sets of former lamp , backup light , signal lamp , Sanlian taillights ,front reflector and after triangle reflector .

Painting

Sand blasting before painting , one coats of primer, anti corrosion ,

two coat of finish painting , Colour as customer’s option

Accessories

One tool box , water tank

Packing

Ro-ro , bulk carriers

Optional Equipment

BPW axle , JOST Brand 90 mm , 50 mm King Pin , ABS ,etc

According to the special requirements of customers' products,

design customized equipment.
