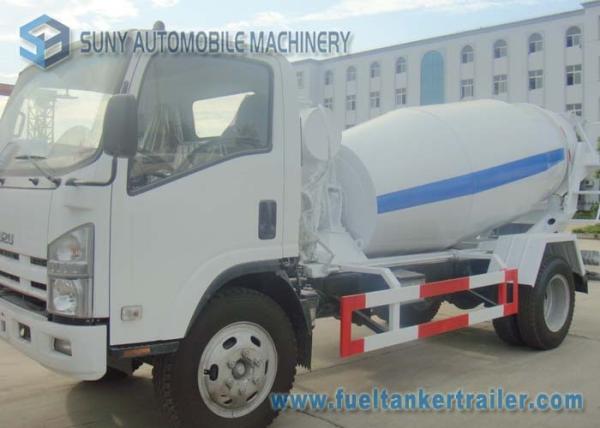

Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor
Specifications
Brand Name :
SUNY
Model Number :
SYCMT4IS
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 10, 000 ~ 35, 000 per Unit
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Units per year
Delivery Time :
10 ~ 15 working days
Packaging Details :
Nude with waxing. Whole truck by ro - ro ship, bulk ship and flat rack. Upper body by 40HQ container.
Color :
White, Optional base on customers ' requirements
Engine :
ISUZU
Reducer :
Keyi brand
Hydraulic Pump :
Interpump brand
Hydraulic Motor :
Interpump brand
Water Tank Volume :
350 Litres
Residual Rate :
< 1 %
Filling Rate :
66 %
Description

Isuzu 4CBM Concrete Truck Mixer With Interpump Hydraulic Pump And Motor

The concrete mixer is specially designed for mixing and carrying the concrete to the construction worksites . All cement mixer trucks are constructed with high tensile steel for endurance and resistance to friction , it ’ s very easy to operation .

Key Features :

◆ World - class ISUZU heavy duty Chassis , High power and Fuel efficiency , Reliability , Uptime ;

◆ The hydraulic system adopts Germany Rexroth , America EATON , Italy ARK , America Sauer ;

◆ Pneumatic Water Supple System . The pressure is provided by the air tank on the chassis with pressure protection devices . The Water inlet connector fits for both normal water pipe and fire fitting .

◆ New technology T - shape Blade . It is made of hard - wearing alloy steel , and thus protects the mixer blades from abrasion , extends the service life of the agitator drum , and enhances mixing performance ;

◆ Equipped with the large diameter hopper , it can realize the quickly feeding , not plugging and spilling , and it is easy to clean ;

◆ The optimized design of mixing drum ensure the concrete residue ratio is less than 1 % ;

◆ Colors can be customized .

◆ Mixer coverage can be customized . 3cbm , 5cbm , 6cbm , 8cbm , 10cbm , 12cbm , 14cbm , 16cbm

Main specifications :

ISUZU 4CBM Concrete Mixer Truck With Interpump Hydraulic Pump and Motor

Model

4 cbm

Driving Type

4X2 ( Left hand drive )

Max . External Diameter of Drum

Φ 1616

Length of the Drum

3210

Geometric Volume of Drum

4 . 69

Mixing Capacity

3 . 31

Material of drum & blades

Q345MN / B520JJ

Inclination Angle for Drum

15

Padding rate

0 . 7069

Residual Rate

＜ 0 . 16 %

Charging Speed

≥ 3

Discharging Speed

≥ 1 . 2

Mixing Speed

0 - 14

Slump Range

50 - 220

Capacity for Water Tank

350L

Water Supply Pressure

0 . 4

A Upper - fixing Length

4520

B Subframe Length

3820

C Chute Position

700

D Center of Gravity when Fully Load

1790

E Hopper Height

2040

F Upper - fixing Height

2050

Upper - fixing Width

2100

Overall Dimension ( L × W × H )

4520 × 2100 × 2040

Weight

2700

Color

White ( Any color & logos up to wish )
