Straight Arm 5 Ton Telescoping Boom Crane Truck 8620mm Working Radius
Straight Arm 5 Ton Telescoping Boom Crane Truck 8620mm Working Radius
Straight Arm 5 Ton Telescoping Boom Crane Truck 8620mm Working Radius
Straight Arm 5 Ton Telescoping Boom Crane Truck 8620mm Working Radius
Specifications
Brand Name :
SUNY
Model Number :
SYSQ5SA2
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 13,000~ 16,000 EXW Factory
Payment Terms :
T/T, L/C, Western Union, Paypal, MoneyGram,
Supply Ability :
50 sets per month
Delivery Time :
35 days after receiving deposits
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Maxl lIft capacity :
5000 kg = 5 ton
Max lift moment :
12.5 Ton.m
Oil tank capacity :
100 Liters
Crane weight :
2050 kg
Installation space :
850 mm
Max working radius :
8620 mm (without jib)
Description

5 Ton Telescopic Boom Straight Arm Crane Mounted Truck 8620 mm Working Radius

Product Description:

We can product different kindly of truck with loading crane with different brand chassis according to customer’s demand. Generally speaking, this kind of truck insists of cargo truck chassis, cargo box, PTO(power-take-off) and crane.

Crane brand optional: SUNY, XCMG, UNIC, SANY, FEITAO, SHIMEI

Crane style optional: telescopic boom and knuckle boom.

Crane load capacity optional: 1 ton, 2 ton, 3.2 ton, 4 ton, 5 ton, 6.3 ton, 8 ton, 10 ton, 12 ton, 14, ton, 16 ton, 25 ton, 30 ton, 50 ton.....

Product Description:

SUNY SQ5SA2 Telescopic Boom Truck Crane

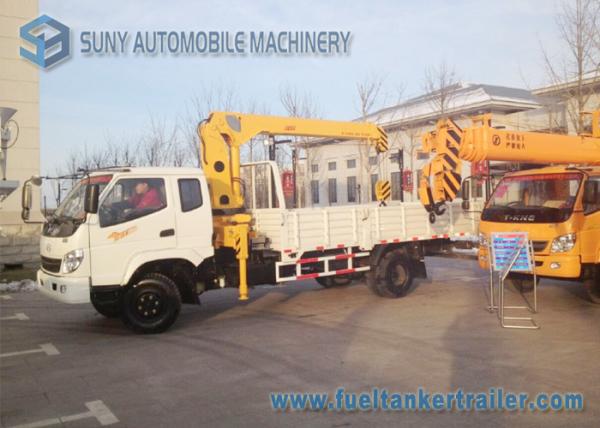

The SYSQ5SA2 telescopic boom crane ( color optiona l), there have more images as below.

SYSQ5SA2 ( SUNY brand )

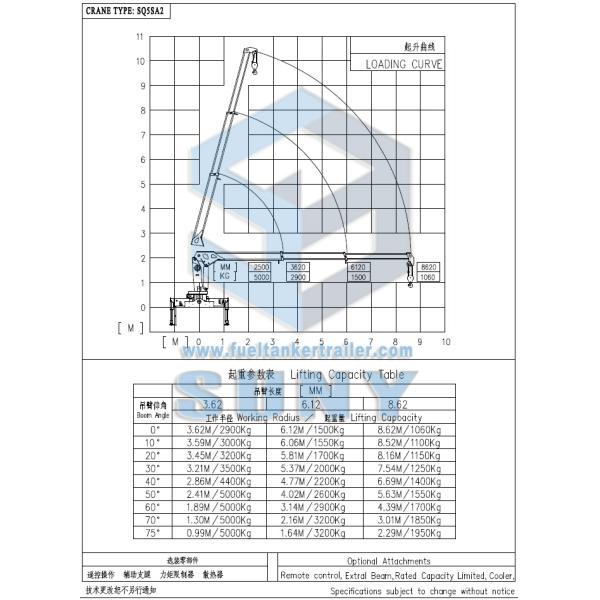

Working radius ( mm )

2500

3620

6120

8620

x

x

x

x

x

Rated load ( kg )

5000

2900

1500

1060

x

x

x

x

x

Note: our straight arm crane SQ5SA2, the largest load 5 ton, the standard model max. working radius is 8620 mm, which does not include increasing jib.

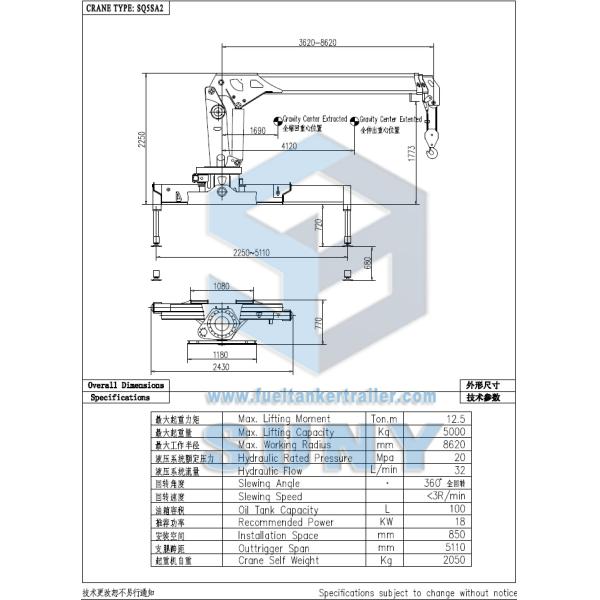

Following is drawing of the SYSQ5SA2 folding arm truck crane ( Which include detailed specification on it

Straight Arm 5 Ton Telescoping Boom Crane Truck 8620mm Working Radius

Straight Arm 5 Ton Telescoping Boom Crane Truck 8620mm Working Radius
