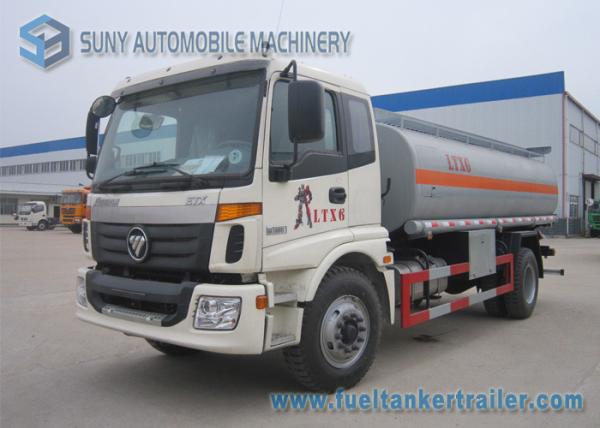

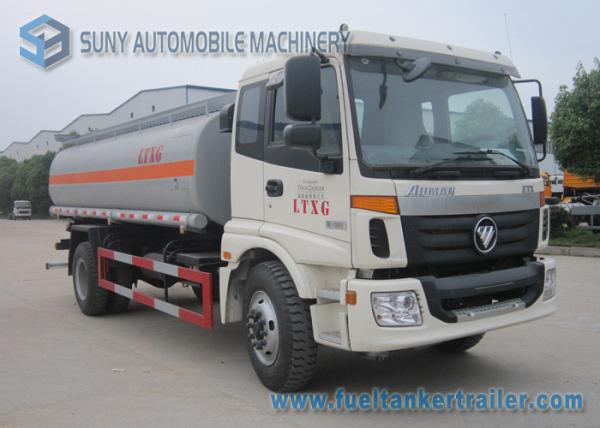

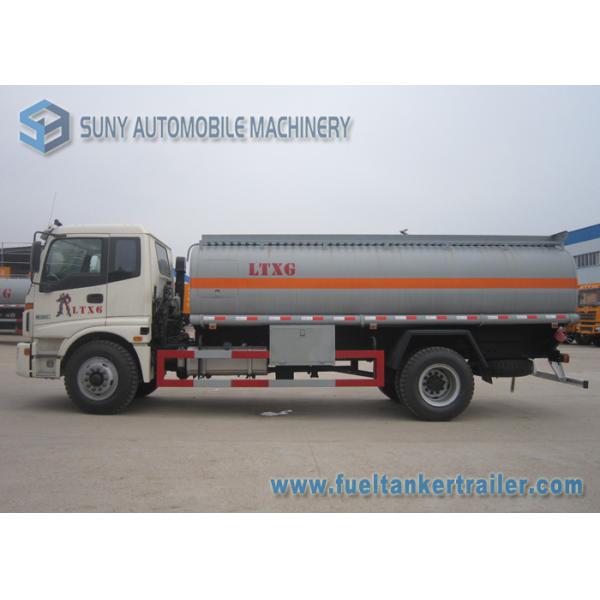

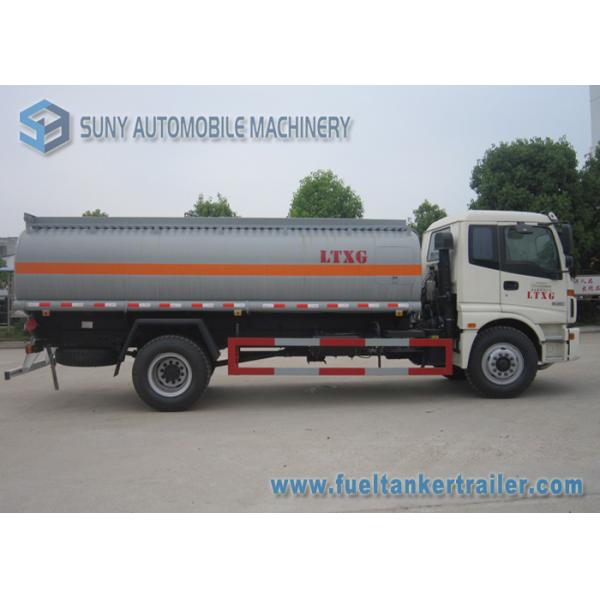

Foton Auman 14m3 210HP Oil Tank Truck 4x2 Trucks BJ5163GYY-AB Chassis
Foton Auman 14m3 210HP Oil Tank Truck 4x2 Trucks BJ5163GYY-AB Chassis
Foton Auman 14m3 210HP Oil Tank Truck 4x2 Trucks BJ5163GYY-AB Chassis
Foton Auman 14m3 210HP Oil Tank Truck 4x2 Trucks BJ5163GYY-AB Chassis
Foton Auman 14m3 210HP Oil Tank Truck 4x2 Trucks BJ5163GYY-AB Chassis
Foton Auman 14m3 210HP Oil Tank Truck 4x2 Trucks BJ5163GYY-AB Chassis
Foton Auman 14m3 210HP Oil Tank Truck 4x2 Trucks BJ5163GYY-AB Chassis
Foton Auman 14m3 210HP Oil Tank Truck 4x2 Trucks BJ5163GYY-AB Chassis
Specifications
Brand Name :
SUNY
Model Number :
SLA5163GYYBJ8
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 25,800~ 50,000 FOB Shanghai
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units/per year
Delivery Time :
25~35 days after we get the deposit
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Chassis model :
BJ5163GYY-AB
Cab :
One and half row
Displacement :
6700 ml
Horsepower :
210 hp
Tank volume :
14 m3
Transport medium :
Gasoline
Description

Foton Auman 4x2 Tanker Truck 14 m3 Oil Tank Truck 210 HP Fuel Tank Truck

Description & Applications:

1. The tank can be designed as a single compartment or several compartments.

2. Tank material: carbon steel, stainless steel, aluminum alloy material tank for choose.

3. You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm

Thickness, insulation can be used rock wool, glass wool, polyurethane foam, aluminum silicate. The cladding

4. At the end or side of tank, it can be installed 1-3 self-flow valve.

5. According to users’ needs, the tank can be designed as a single compartment or several compartments to contain different oils.

Foton Auman 4x2 Tanker Truck 14 m3 Oil Tank Truck 210 HP Fuel Tank Truck

Vehicle Description

Vehicle model

SLA5163GYYBJ8

Vehicle type

Oil tank truck

Drive form

4*2

Overall dimension (mm)

8450*2460*3100

G.V.W (kg)

16000

Load capacity (kg)

9065

Curb weight (kg)

6805

Chassis Description

Chassis model

BJ5163GYY-AB

Axle load (kg)

6000/10000

F/R overhang (mm)

1365/2385

Approach/Departure angle ( ° )

16/10

Tread (mm)

1960/1847

Wheelbase (mm)

5000

Spring plate

10/10+9,10/10+8

Tyre size & quantity

10.00-20 18PR,10.00R20 18PR,9.00R20 16PR,10R22.5 16PR

& 6+1

Cab

One and half row

Engine Description

Engine model

ISDe210 40

Displacement (ml)

6700

Max power (kw)

155

Horsepower (hp)

210

Max speed (km/h)

79

Emission standard

Euro 4

Type of fuel

Diesel

Tank Description

Tank volume (m³)

13.49

Transport medium

Gasoline

Density (kg/m³)

700

Tank size (mm)

5800*2200*1500
