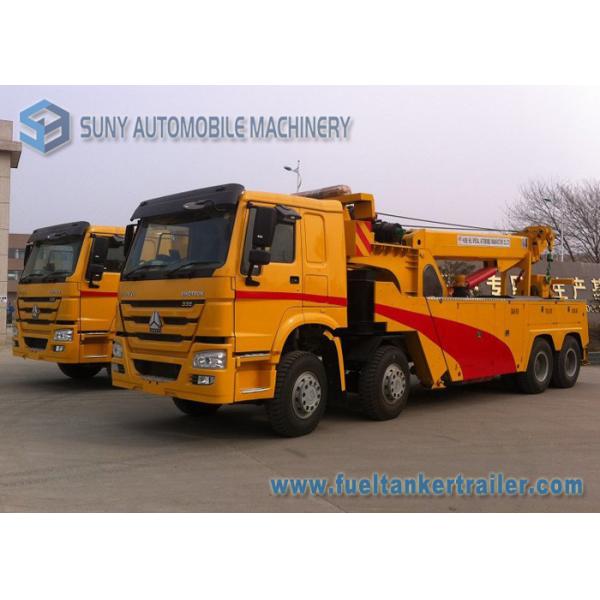

Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
Specifications
Brand Name :
SUNY
Model Number :
SYRW30HW
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 80, 000 ~ 100, 000 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units per year
Delivery Time :
35 ~ 55 working days after we get the deposit
Packaging Details :
Nude with waxing. Whole truck by RO - RO ship, Bulk cargo ship, SKD, CKD and so on. Upper body by Container.
Boom capacity :
30 ton
Under - lift capacity :
16 ton
Winch :
2 units, 15 ton per unit
Manual control :
Manual control on both left side and right side
Electrical System :
Include Wires, Sidelights, Three Work Lights, Signal Lights on Pylon
Tools :
Include a pair of Fork, a pair of “ L ” Bar and a pair of Strap
Angle of swing :
360 degree continue swing
Description

30DZ HOWO 30 Ton Boom Capacity 8X4 Heavy Duty Rotator Tow Truck Wrecker

Description:

1) Flat bed tow truck can tow 2 units truck at one time. It ’ s mainly for towing light cargo truck, mini bus and car;

2) Wrecker truck is mainly for towing medium duty and heavy duty cargo truck and bus;

3) Rotator tow truck, its boom can rotate 360 degree and suitable for all the direction towing work. It ’ s mainly for towing heavy duty cargo truck and super heavy duty trailer.

Applications:

Our high quality and competitive price 30 ton SYRW30HW rotator wrecker with wireless remote control is mainly for towing heavy duty cargo truck and super heavy duty trailer.

Competitive Advantage:

1) Wireless remote control boom, winch and under - lift;

2) 60 ton boom capacity with 360 degree continue swing;

3) Mainly made by alloy steel, high quality and competitive price.

Specifications:

30DZ HOWO 30 Ton Boom Capacity 8X4 Heavy Duty Rotator Tow Truck Wrecker

Model

30 ton Rotator Wrecker

Kerb weight

25020

GVW ( 2 persons )

38000

Dimension ( mm )

Length

10950

Width

2495

Height

3300

Wheelbase ( mm )

1800 + 4600 + 1350

Front wheel span / Rear wheel span ( mm )

2022 / 2022 / 1830 / 1830

Angle of approach / Angle of mosey ( ° )

16 / 14

drive type

8x4

Tyre size

11 . 00 - 20

Max HR ( km / h )

90

Engine

type

WD615 . 69 ( EURO II )

power ( HP / r / min )

336 / 2200

torque ( N · m / r / min )

1350 / 1100 ~ 1600

Min . fuel consumption at full load

Diesel, ≤ 193g / kW . h

Under - lift capacity ( kg )

16000

Boom capacity ( kg )

30000

Winch quantity ( unit )

2, planetary type

Single winch capacity ( kg )

15000

STANDARD FEATURES
  1. Boom
  2. Winch
  3. Steel Body
  4. Under - lift
  5. Light Pylon
  6. Dual Joystick Control
  7. Hydraulic System ( Include Pump, Hydraulic Tank, Cylinder, Control Valve, Holding Valve, Hydraulic Tube and Fitting )
  8. Electrical System ( Include Wires, Sidelights, Three Work Lights, Signal Lights on Pylon )
  9. Tools ( Include a pair of Fork, a pair of “ L ” Bar and a pair of Strap )

Notice: Equipment can be modified according to the customer ’ s requirement.

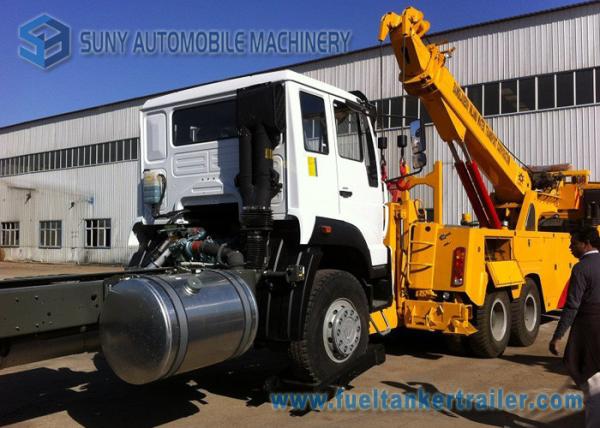

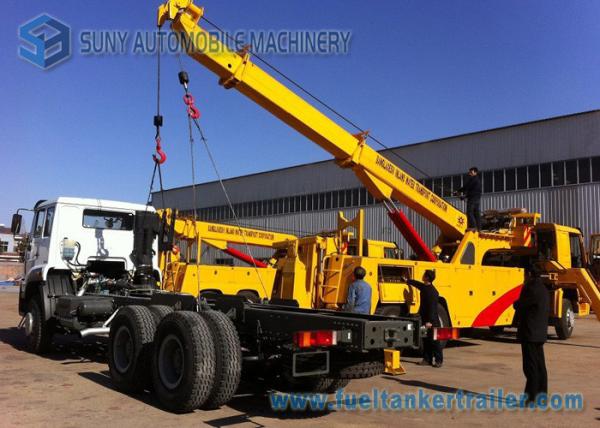

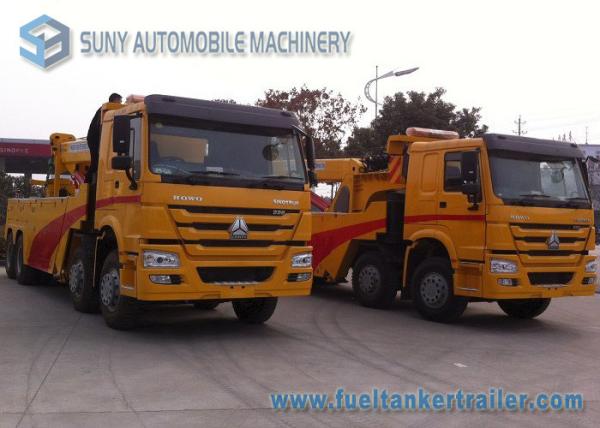

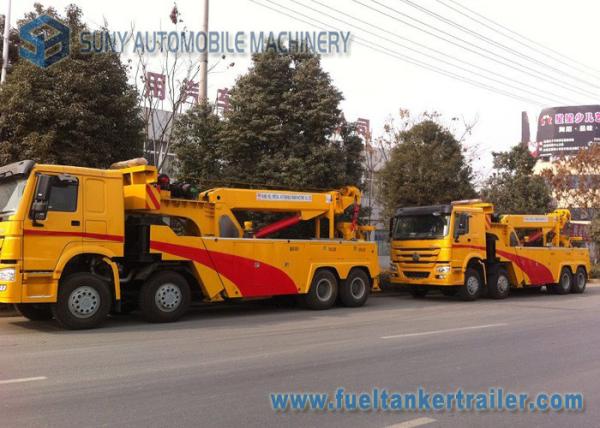

More pictures:

Heavy Duty 30DZ 30 Ton HOWO Rotator Tow Truck Wrecker For 2 Persons
