Specifications
Brand Name :
SUNY
Model Number :
SYDW3IS
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 20, 000 ~ 50, 000 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units per year
Delivery Time :
15 ~ 25 working days after we get the deposit
Packaging Details :
Nude with waxing. Whole truck by RO - RO ship, Bulk cargo ship, SKD, CKD and so on. Upper body by Container.
Boom capacity :
3 ton
Under - lift capacity :
2 . 5 ton
Winch :
3 ton
Manual control :
Manual control on both left side and right side
Electrical System :
Include Wires, Sidelights, Three Work Lights, Signal Lights on Pylon
Tools :
Include a pair of Fork, a pair of “ L ” Bar and a pair of Strap
Towing rating :
6 ton
Description

IND 10 ISUZU 3 Ton Boom Capacity 4X2 Light Duty Wrecker Tow Truck

Description:

1) Flat bed tow truck can tow 2 units truck at one time. It ’ s mainly for towing light cargo truck, mini bus and car;

2) Wrecker truck is mainly for towing medium duty and heavy duty cargo truck and bus;

3) Rotator tow truck, its boom can rotate 360 degree and suitable for all the direction towing work. It ’ s mainly for towing heavy duty cargo truck and super heavy duty trailer.

Applications:

Our high quality and competitive price 3 ton SYDW3IS rotator wrecker with wireless remote control is mainly for towing heavy duty cargo truck and super heavy duty trailer.

Competitive Advantage:

1) Wireless remote control boom, winch and under - lift is optional;

2) 6 ton towing rating;

3) Mainly made by alloy steel, high quality and competitive price.

Specifications:

IND 10 ISUZU 3 Ton Boom Capacity 4X2 Light Duty Wrecker Tow Truck

A. Boom

Model

SY3D

Rating of the boom ( lb / kg )

Retracted at 19 °

Extended at 19 °

6600 / 3000

4400 / 2000

Max . Angle ( ° )

45

Hook height ( inch / mm )

149 ” / 3800

The length to the tail of truck fully extended and min . angle ( inch / mm )

68 ” / 1725

B. Underlift

Model

SY3T

Towing rating ( lb / kg )

13200 / 6000

Capacity fully extended ( lb / kg )

4000 / 1820

Capacity fully retracted ( lb / kg )

5500 / 2500

The length to the tail of the truck fully retracted ( inch / mm )

45 ” / 1160

The length to the tail of the truck fully extended ( inch / mm )

69 ” / 1750

Underlift tilt ( ° )

+ 11, - 3

C. Winch

Model

SY001

Capacity of winch ( lb / kg )

6600 / 3000

Type of winch

Worm gear

Diameter and length of steel cable

4 / 9 ” x 50 ’ / 11 x 15000

D. Chassis Recommendations

GVW ( lb / kg )

13200 / 6000 – 16500 / 7500

C.A ( inch / mm )

92 ” / 2350 – 131 ” / 3320

STANDARD FEATURES
  1. Boom
  2. Winch
  3. Steel Body
  4. Underlift
  5. Light Pylon
  6. Dual Joystick Control
  7. Hydraulic System ( Include Pump, Hydraulic Tank, Cylinder, Control Valve, Holding Valve, Hydraulic Tube and Fitting )
  8. Electrical System ( Include Wires, Sidelights, Three Work Lights, Signal Lights on Pylon )
  9. Tools ( Include a pair of Fork, a pair of “ L ” Bar and a pair of Strap )

Notice: Equipment can be modified according to the customer ’ s requirement.

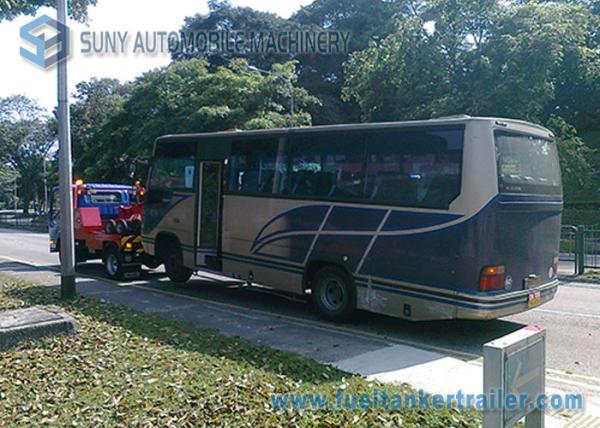

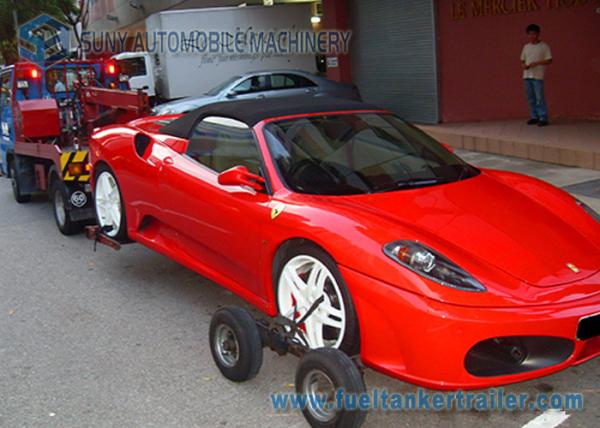

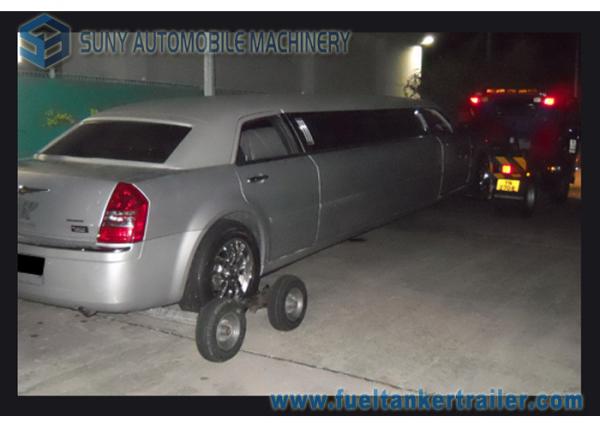

More pictures:
