Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
Specifications
Brand Name :
SUNY
Model Number :
SYTW6IS
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 20, 000 ~ 50, 000 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 units per year
Delivery Time :
15 ~ 25 working days after we get the deposit
Packaging Details :
Nude with waxing. Whole truck by RO - RO ship, Bulk cargo ship, SKD, CKD and so on. Upper body by Container.
Boom capacity :
6 ton
Under - lift capacity :
6 ton
Winch :
2 units, 4 ton per unit
Manual control :
Manual control on both left side and right side
Electrical System :
Include Wires, Sidelights, Three Work Lights, Signal Lights on Pylon
Tools :
Include a pair of Fork, a pair of “ L ” Bar and a pair of Strap
Towing rating :
12 ton
Description

6T6D ISUZU 6 Ton Boom Capacity 4X2 Light Duty Wrecker Tow Truck

Description:

1) Flat bed tow truck can tow 2 units truck at one time. It ’ s mainly for towing light cargo truck, mini bus and car;

2) Wrecker truck is mainly for towing medium duty and heavy duty cargo truck and bus;

3) Rotator tow truck, its boom can rotate 360 degree and suitable for all the direction towing work. It ’ s mainly for towing heavy duty cargo truck and super heavy duty trailer.

Applications:

Our high quality and competitive price 6 ton SYTW6IS rotator wrecker with wireless remote control is mainly for towing heavy duty cargo truck and super heavy duty trailer.

Competitive Advantage:

1) Wireless remote control boom, winch and under - lift is optional;

2) 12 ton towing rating;

3) Mainly made by alloy steel, high quality and competitive price.

Specifications:

6T6D ISUZU 6 Ton Boom Capacity 4X2 Light Duty Wrecker Tow Truck

Chassis model

ISUZU QL1100TPARY

upper type

6T6D Integrated

( kg ) GVW

10000

( kg ) Kerb weight

6305

( mm ) Length

7790

( mm ) Width

2260 ~ 2430

( mm ) Height

2510 ~ 2690

( mm ) Wheelbase

5200

Front wheel span / Rear wheel span ( mm )

1680 / 1650

( mm ) Front Axle / Rear Axle

1110 / 1480

( ° ) Angle of approach / Angle of mosey

21 / 12

drive type

4x2

tyre size

8 . 25 - 20

( km / h ) Max HR

110

( % ) Max GRAB

30

( m ) Max turning diameter

19

( mm ) MIN Ground Clearance

215

Engine

type

4HK1 - TC ( EURO Ⅲ )

( kW / r / min ) power

129 / 2600

( ml ) Displacemsnt

5193

( N · m / r / min ) torque

500 / 1500 ～ 2000

( L ) fuel exhaustion of 100km

Diesel 16

( kg ) Rated recovery capacity

10000

underlift

( kg ) lifting capacity ( full retracted )

6000

( kg ) Lifting capacity ( fully extended )

3500

( mm ) Distance from tail aboard

1970

( mm ) Stoke

720

( 0 ) Tilt angle of under lift : up

11 . 5

( 0 ) Tilt angle of under lift : down

- 3

( 0 ) Angle of loading

- 4 ～ 9

( 0 ) Angle of unloaded

- 4 ～ 93

( mm ) under - lift fully extended max clearance from fork entry to ground

1355

BOOM

Boom stage

2

( kg ) Max . lifting capacity

6000

( mm ) Stoke

1540

( mm ) Max length of boom

3130

( mm ) Max . lifting height of hook

3155

( 0 ) Range of elevation

3 ～ 26.5

Leg

quantity ( unit )

2

( mm) Transverse span of rear leg

1410

Winch

quantity ( unit )

2

( kN ) Per Rated traction force

40

( mm ) cable DIA

φ 11

( m ) cable L

15x2

( m / min ) Min . line speed of winch cable

3 . 23

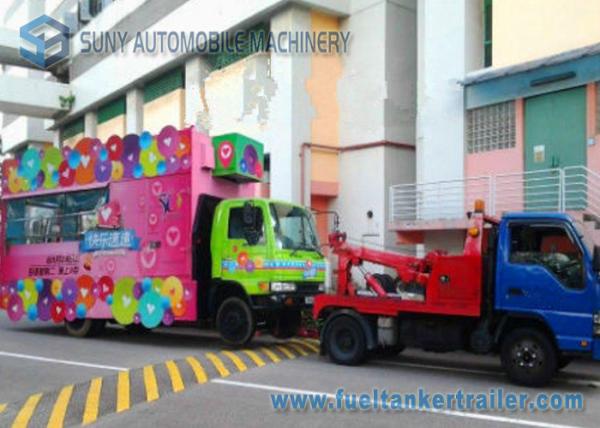

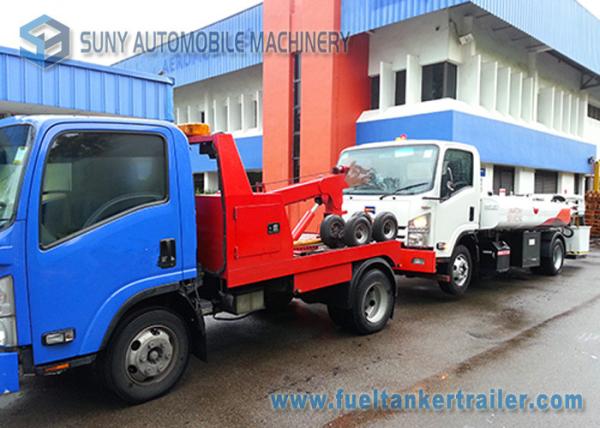

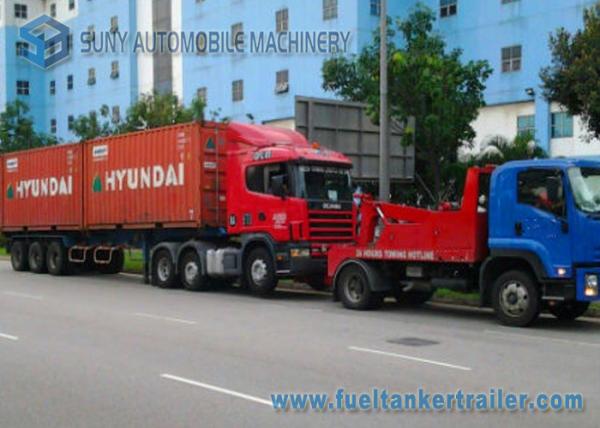

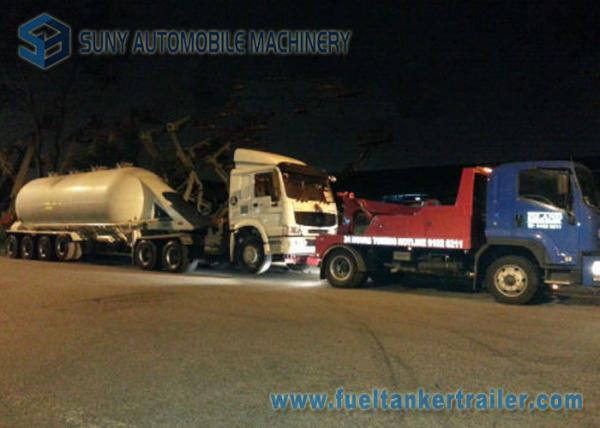

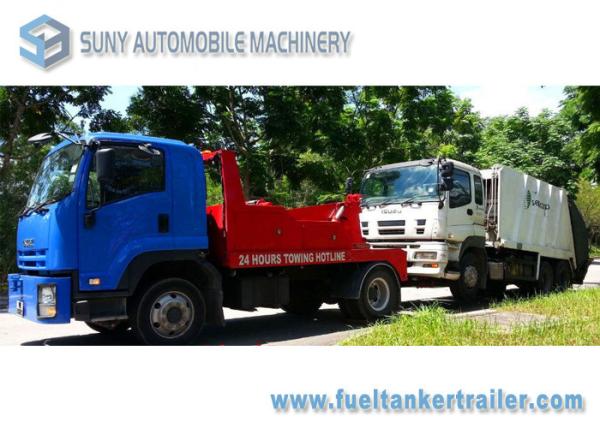

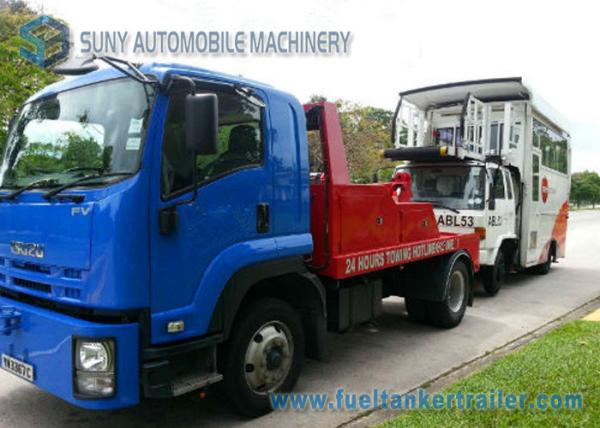

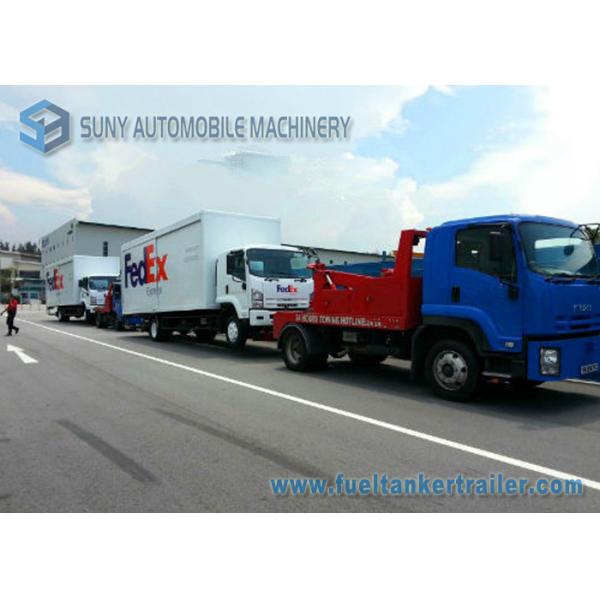

More pictures:

Light Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZULight Duty 4X2 Diesel 16 6 Ton Wrecker Tow Truck 6T6D ISUZU
