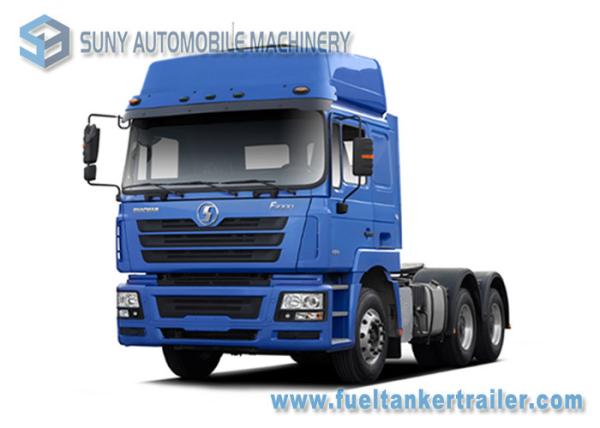

6x4 Shacman F3000 Tractor Head Truck 11.596 L 280kw / 380hp Engine Power
6x4 Shacman F3000 Tractor Head Truck 11.596 L 280kw / 380hp Engine Power
6x4 Shacman F3000 Tractor Head Truck 11.596 L 280kw / 380hp Engine Power
6x4 Shacman F3000 Tractor Head Truck 11.596 L 280kw / 380hp Engine Power
Specifications
Brand Name :
SHAMCN F3000
Model Number :
SX4255
Certification :
ISO & CCC
Place of Origin :
CHINA
MOQ :
1 unti
Price :
USD 38000 ~ 59000 / UNIT
Payment Terms :
T/T, L/C
Supply Ability :
2000 UNITS / MONTH
Delivery Time :
10 ~ 30 working days
Packaging Details :
After waxing, transported by container, ro-ro ship or bulk carrier.
Cabin :
F2000 flat Roof cab,with A/C,RHD
Engine power :
280kw / 380hp
Engine Displacement :
11.596 L
Gear box :
12JSD180T -Manual FAST Brand
Axle :
STR 13T ,Double reduction driven axle
Tyre & Quantity :
12.00R20 & 10+1
Fuel :
380 L Tank
Description

Shacman F3000 6x4 TRACTOR TRAILER TRUCK

F3000 / F2000 / M3000 / X3000 / H3000 Cabin Right Hand Drive

380HP WEICHAI EURO2 ENGINE

Optional Cummins Engine

Vehicle Description
Overall dimensions (mm) 6635×2500×3700
GVW (kg) 25000
Curb weight (kg) 9000
Max speed (km/h) 100
Chassis Description
Chassis model SX4255
Cab F2000 flat Roof cab,with A/C,RHD
Wheel base (mm) 2900+1400
Front/Rear overhang (mm) 1525/835
Engine Engine type WP12.380E32
Emission level Euro II
Maximum power 280kw (380hp) at 2200 rpm
Maximum torque 1600N.m at 1500-1800rpm
Number of cylinders 6
Displacement (lit) 11.596
System Water cooled, turbocharged, air cooled, with EGR
Clutch Plate's diameter ¢430mm
Operating system Hydraulic control with air booster, pulling
Gear box Type 12JSD180T -Manual
Number of gears 12 forward gears & 2 reverse
Brake system

Full air brake system, split pneumatic circuit;

parking spring brake acting on rear axles, exhaust brake,
Axle Front (T) MAN 7.5T
Rear (T) STR 13T ,Double reduction driven axle
Tire specification 12.00R20
Suspension Front 8-leaf spring
Rear 12-leaf spring
Battery Voltage (V) 24
Capacity (A.h) 165×2
Fuel Type Fuel tank with lockable cap
Capacity (L) 380

6x4 Shacman F3000 Tractor Head Truck 11.596 L 280kw / 380hp Engine Power6x4 Shacman F3000 Tractor Head Truck 11.596 L 280kw / 380hp Engine Power
