Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab
Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab
Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab
Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab
Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab
Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab
Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab
Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab
Specifications
Brand Name :
SUNY
Model Number :
SY5107LQ
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD40000 /set- USD90000/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
200 set per month
Delivery Time :
15-25 working days
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Chassis brand/ model :
Dongfeng/ DFL1160B5
Tank capacity :
8000 L - 10000 L
Wheel base :
5000 mm
Engine :
ISDe210 40
G.V. W :
16000 kgs
Tank material :
Q235
Axles No. :
2
Drive :
4x2
Dimension :
8450x 2490x 3560
Horspower :
210 hp
Function :
Asphalt distritution
Description

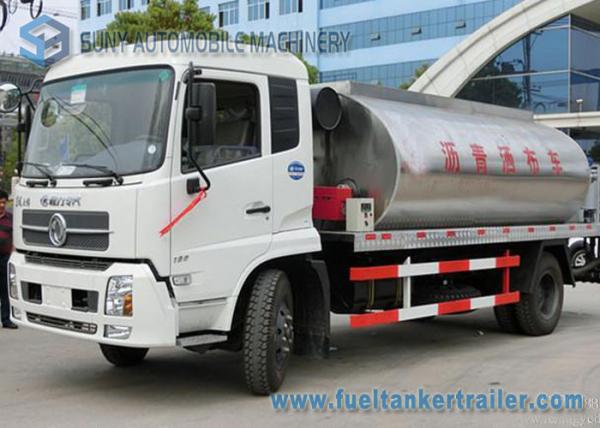

Dongfeng 4 x 2 8000 L -10000 L Asphalt Distributor Truck Tianjin Cab

Description & application:

1-It is for asphalt distribution of the road construction.

2-It is easily to operate with reasonable desgin. And steady and reliable quality ensure the average distribution of the Asphalt.

3-The performance of the truck can achieve to top level of the world. It can work in bad condition.


Competitive Advantage:


1- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
2- strict quality control ---- stable quality for each truck
3- competitive price ----- based on same product, our price is most competitive
4- best service ----- we cherish each customer and opportunity.

Dongfeng 4 x 2 8000 L -10000 L Asphalt Distributor Truck Tianjin Cab

Vehicle Description
Vehicle model Asphalt Distributor Overall dimensions (mm) 8450x2490x3560
GVW (kg) Appro×16000 Fact loading capacity (L) 8000
Mass in working order (kg) Appro×8000 Max. Speed (km/h) 95
Chassis Description
Chassis Model DFL1160B5
Cab Standard cabin with Left hand drive
Color Optional
Allowable person in cab 3
Wheel base (mm) 5,000
Front/Rear track base (mm) 1880/1860
Front/Rear overhang (mm) 1430/2320
Number of axles 2
Axle Front axle 6000
Rear axle 10000
Traction system 4x2
Operation control system Power steering
Braking system Full air
Electric system 24V
Transmission Mechanical gear box 5 speeds + one rear
Spring plate 8/10+8
Tire specification 10.00-20,10.00R20,9.00-20,9.00R20
Tire quantity 6+1
Engine Description
Engine manufacture Dongfeng Cummins
Engine model ISDe210 40
Emission standard Euro 3
Exhaust/output 6700
Horse power 210
Up-parts Description
Asphalt tank Outline Dimension (mm) 2730x1950x1300
Asphalt tank Inner Dimension(mm) 2630x1850x1200
Insulating layer thickness (mm) 50
Asphalt tank Total Volume(L) 8000-10000L
Hydraulic pump CBQ550-L
Proportional valve Taiwan EFBG-03-160-HF
Asphalt pump QGB680
Hydraulic motor for asphalt pump 05-110-BD31
Heating System Italian burner Riello
Heat-transfer oil pump 25-25-160
Control System SIEMENS
Generator 5.5KW gasoline engine generator
Number of nozzle 30-39
Spray medium Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt
Spray width(m) 4.5-6
Spray amount(L/m2) 0.2-2
Working Condition: 1,Altitude: 0-4500m
2,Temperature: -350C~+450C
3,Relative humidity: 80%
4,Wind force: ≤8 degree
Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab
Dongfeng 4 x 2 Asphalt Tanker Trailer 8000 L -10000 L Tianjin Cab
