LPG Tank Trailer 65M3 27T LPG Gas Storage Bullet Tank underground tank
LPG Tank Trailer 65M3 27T LPG Gas Storage Bullet Tank underground tank
LPG Tank Trailer 65M3 27T LPG Gas Storage Bullet Tank underground tank
LPG Tank Trailer 65M3 27T LPG Gas Storage Bullet Tank underground tank
LPG Tank Trailer 65M3 27T LPG Gas Storage Bullet Tank underground tank
LPG Tank Trailer 65M3 27T LPG Gas Storage Bullet Tank underground tank
LPG Tank Trailer 65M3 27T LPG Gas Storage Bullet Tank underground tank
LPG Tank Trailer 65M3 27T LPG Gas Storage Bullet Tank underground tank
Specifications
Brand Name :
SUNY
Model Number :
SY65LPG
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD18000 ~ 28000/ unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 units/ year
Packaging Details :
nude with wax protection
Material :
Q345R, Q370R
Shape :
round, ellipse
Diameter :
2700 mm
Volume :
65M3 , 65000L , 65000 liters ,65KL , 65cbm
Design pressure :
1.77 Mpa , 17.7Bar
Medium density :
420 ~ 590 kg / m3
Loading weight :
27T
Description

LPG Tank Trailer 65M3 27T LPG Gas Storage Bullet Tank

LPG storage tank Description & Applications:

  1. LPG propane gas storage tank volume: 65 m3, 65 cbm, 65000 L, 65000 liters;
  2. LPG propane gas storage tank diameter: 2700 mm;
  3. LPG propane gas storage tank material: Q345R, Q370R;
  4. LPG storage tanker loading weight : 27T
  5. optional accessories: Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc.
  6. Designing pressure:1.77 Mpa Designing temperature: -20 °C to 54 °C.

LPG storage tank Specifications:

tank diameter 2700mm
tank type III
working Medium LPG (propane)
Design Specific Gravity 0.42 Kg/M3
media characteristics Flammable and explosive
capacity 65M3
External Dimensions (length*width*height) 11832*2728*3318mm
tank weight (nominal) 13590kg
max payload weight 25935kg
tank material Q345R
Barrel design thickness 14mm
Head design thickness 16mm
welded joint coefficient 1.0
design temperature 50ºC
working temperature -20~50 ºC
Corrosion allowance 1.0 mm
design pressure 1.77 MPa
Hydraulic test pressure 2.22 MPa
leak test pressure 1.77 MPa
Heat treatment type Wholly get rid of tress
Paint paint white color, or paint the color you request.
The first install Accessories Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature mete

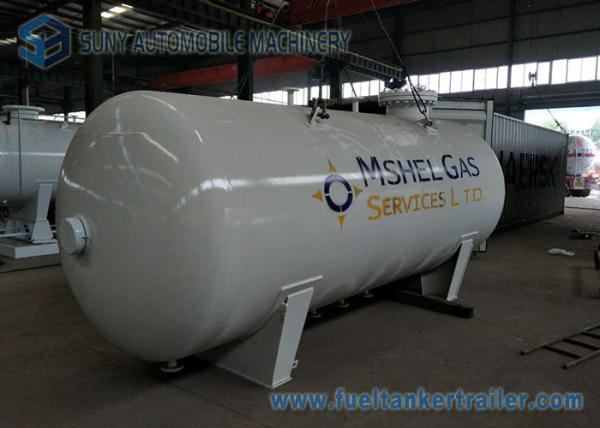

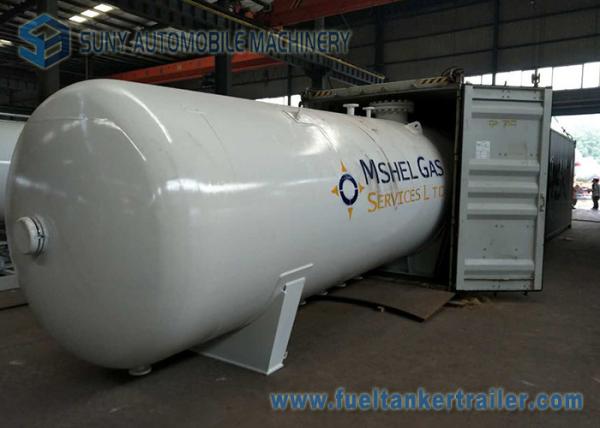

LPG storage tank more details show

LPG Tank Trailer 65M3 27T LPG Gas Storage Bullet Tank underground tank


LPG Tank Trailer 65M3 27T LPG Gas Storage Bullet Tank underground tank

LPG Tank Trailer 65M3 27T LPG Gas Storage Bullet Tank underground tank
