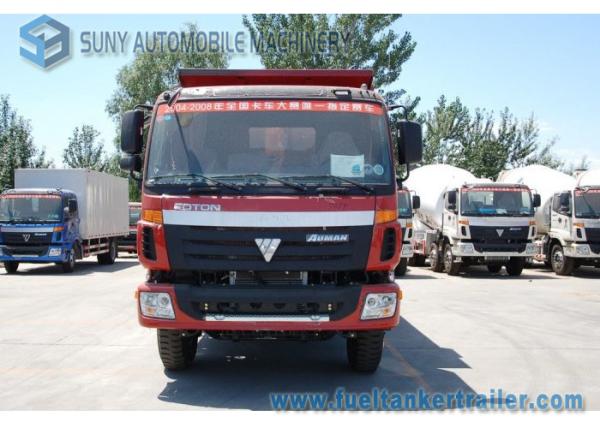

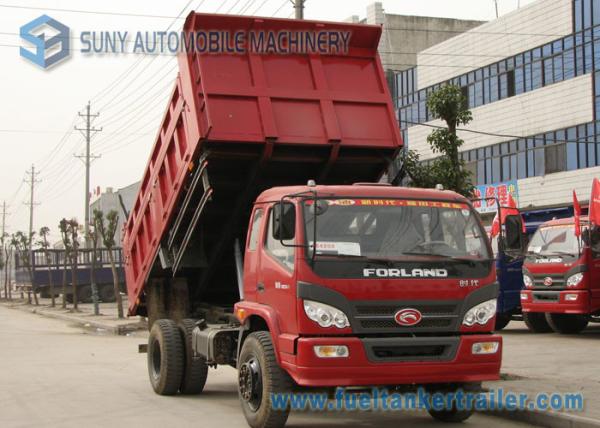

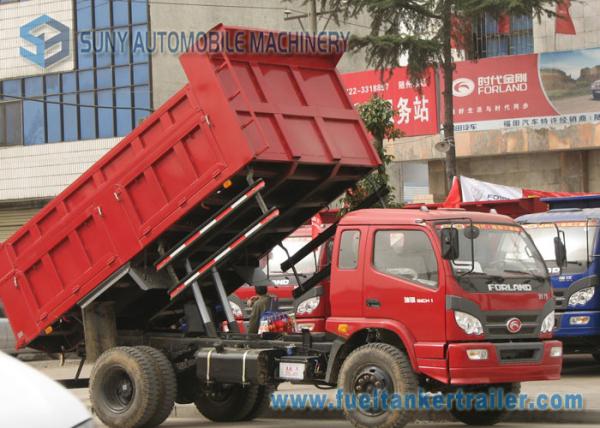

Foton 2 Axles Garbage Trucks Heavy Duty Dump Truck 5000kgs 6000kgs Dump 4 x 2 Drive
Foton 2 Axles Garbage Trucks Heavy Duty Dump Truck 5000kgs 6000kgs Dump 4 x 2 Drive
Foton 2 Axles Garbage Trucks Heavy Duty Dump Truck 5000kgs 6000kgs Dump 4 x 2 Drive
Foton 2 Axles Garbage Trucks Heavy Duty Dump Truck 5000kgs 6000kgs Dump 4 x 2 Drive
Foton 2 Axles Garbage Trucks Heavy Duty Dump Truck 5000kgs 6000kgs Dump 4 x 2 Drive
Foton 2 Axles Garbage Trucks Heavy Duty Dump Truck 5000kgs 6000kgs Dump 4 x 2 Drive
Foton 2 Axles Garbage Trucks Heavy Duty Dump Truck 5000kgs 6000kgs Dump 4 x 2 Drive
Foton 2 Axles Garbage Trucks Heavy Duty Dump Truck 5000kgs 6000kgs Dump 4 x 2 Drive
Specifications
Brand Name :
SUNY
Model Number :
SY5127ZXLJ
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD40000-USD65000
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
200 set per month
Delivery Time :
15 - 25 working days
Packaging Details :
Ro-ro sihpping / Bulk cargo shipping / Container shipping / SKD / CKD / etc
Chassis brand/model :
FOTON
Chassis no. :
BJ3103DEPEA-3
Garbage van capacity :
5000kgs 6000kgs 8000kgs
Engine :
YN38CRD1
Drive :
4x2
Wheel base :
3300 mm
Horse power :
130 hp
Function :
transport and unload the heavy garbage
Tank material :
Q235
Dimension :
6110*2250*2730 mm
Description

Foton 2 Axles Garbage Trucks 5000kgs 6000kgs Dump 4 x 2 Drive

Description&Applications:

Garbage truck is a kind ofthe urban sanitation special vehicle which is used to highly collecting,transporting and unloading garbage and could avoid leaking--- secondary pollution in the collecting and transiting process.It is the ideal urban sanitation equipment. I can carry big and heavy garbage such as construction garbage,

Competitive Advantage:

1- competitive price-----based on same product, our price is most competitive

2- powful R & D capabilities------we can design and produce the truck according to different trash cans of different countries so that it can be fit for the different countries’ demand.

3- strict quality control----stable quality for each truck

4- best service-----we cherish each customer and opportunity.

Specifications:

Foton 2 Axles Garbage Container Truck 5000kgs 6000kgs Dump 4x2 Drive

Vehicle Description
Type Dump truck Overall Dimensions(mm) 6110*2250*2730
GVW(kg) 10000 Mass in working order(kg) 5300
Design Loading Weight(kg) 4505 Max speed(Km/h) 77
Chassis Description
Chassis Model BJ3103DEPEA-3 Number of axles 2
Cab FORLAND Allowable Passengers In Cab 3,2
Wheel base(mm) 3300 F/R track base(mm) 1633/1668
F/R overhang(mm) 1280/1530 Approach/Departure angle(°) 28/20
Spring plate 10/12+9 F/R axle-load 4000/6000
Tire specification 8.25-16 Tire quantity 6+1
Air conditioner optional Type of fuel DIESEL
Braking system Air braking Electric system 24V
Traction system 4*2 Operation control system Steering Wheel
Engine Description
Engine model YN38CRD1 Engine manufacture Kunming Yunnei Power Co., LTD
Exhaust(ml) 3760 Horse power 130
Up-parts Description
Cargo body dimensions(mm) 3800*2070*800
Cargo body material Carbon steel Q235
Lifting system Equipped with front hydraulic system
Optional Configuration
Van thickness,side door,and other china brands hydraulic cylinder,etc.
Production 10-15 days
Warranty 12 months or 30,000km

Product tags

tri axle dump truck capacity

,

single axle dump truck capacity

,

2 axle dump truck
