30 Tonne Triaxle Trailers 30 Ton Tri-Axle Trailer Tri-Axle Grain Trailer
30 Tonne Triaxle Trailers 30 Ton Tri-Axle Trailer Tri-Axle Grain Trailer
30 Tonne Triaxle Trailers 30 Ton Tri-Axle Trailer Tri-Axle Grain Trailer
30 Tonne Triaxle Trailers 30 Ton Tri-Axle Trailer Tri-Axle Grain Trailer
Specifications
Brand Name :
SUNSKY
Certification :
ISO 9001/SGS/BV/CCC
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
30 Working Days
Packaging Details :
2 Units Load Into 40 FT Container or by bulk ship
material :
Q345B steel
dimension :
Approx.13000*2600*2700mm
axle :
13 Tons
tires :
385/65R22.5
Condition :
Brand New
container locks :
12(for 1X20GP,2X20GP,1X40HQ)
Description

30 Tonne Triaxle Trailers 30 Ton Tri-Axle Trailer Tri-Axle Grain Trailer

The 12-13M Dropside semi-trailer (Henred design) is particularly popular in African countries like Zambia and Zimbabwe. It is commonly used to transport products such as maize, wheat, and grain. This trailer is designed with removable sidewalls, providing flexibility and convenience for loading and unloading goods of various sizes and shapes.

DROP SIDE TRAILER Detail Design:
Plastic corner bracket

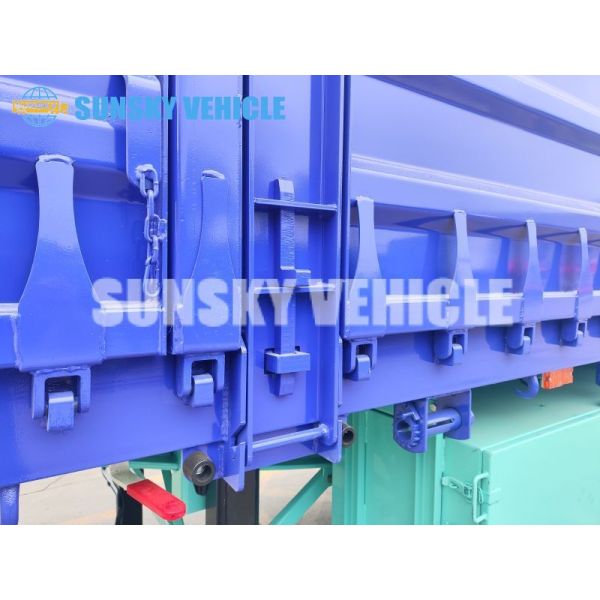

Side wall design style
(1)The large size of the small door is more conducive to the unloading of grain and bulk cargo than the standard type.
(2)The column can be turned down, and there is no need to move it like the standard type, which is more convenient and more efficient for loading and unloading.
(3)Hinges and handles with different style
License plate (2 pcs)
Tail lamp shade
One-piece tarpaulin rod/tie rod
Tyre

Dropside Semi-trailer parameters

12.6M Dropside semi trailer(Henred design)
Feature: Carry 1X40FT, 1X20FT or 2X20FT container; bulk cargo
Dimension(L*W*H): 12600*2600*2570mm
Main frame: Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Height of sidewalls 1000mm(open grain doors)
Model: SS9380TJZP
No. of axle: 3
Payload(kgs): 40000
Tare weight(kgs): 8500
Kingpin: Bolt-in type 3.5” or 2”
Landing gear: Two-speed manual operation 19”
Tire size: 315/80R22.5 (13 sets )
Rim size: 9.00*22.5(13 sets)
Axle: 3 Axle, 13 Tons
Suspension Spring suspension with 8 leaf springs

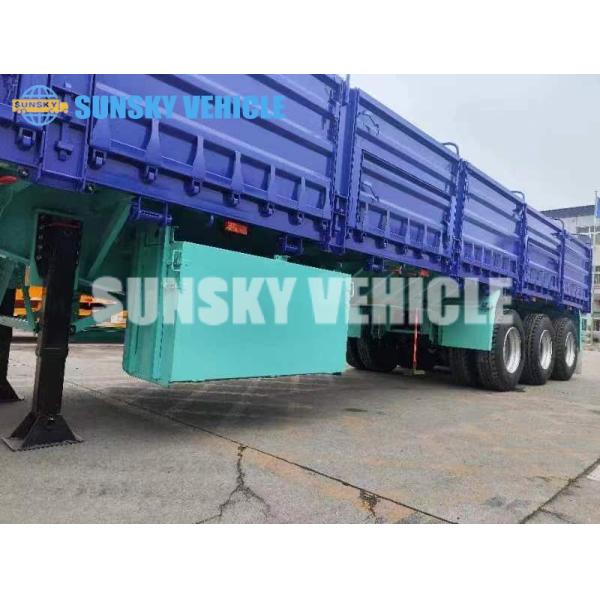

40FT dropside Semi-trailer picture

30 Tonne Triaxle Trailers 30 Ton Tri-Axle Trailer Tri-Axle Grain Trailer30 Tonne Triaxle Trailers 30 Ton Tri-Axle Trailer Tri-Axle Grain Trailer30 Tonne Triaxle Trailers 30 Ton Tri-Axle Trailer Tri-Axle Grain Trailer

Advantages
1. The structure of flatbed semi-trailer is made of high-strength international steel; it has light dead weight, and it
has good advantage in anti-distortion, anti-seismic, anti-turbulence, and meets the needs of different road bearing
capacity.
2. The web height of flatbed trailer is from 400mm to 550mm, the longitudinal beam is welded by automatic
submerged arc welding, the frame is shot peening, and the beam penetrates the longitudinal beam and welds the
whole.
3. Tandem dry plate spring and suspension bearing composition, reasonable structure, with strong rigidity and
strength, used to support the load slow impact.


6. The tarpaulin poles and horizontal pulls are only at the uprights, and there are no tarpaulin poles on the box board;

If you are also interested in our 30 Tonne Triaxle Trailers 30 Ton Tri-Axle Trailer Tri-Axle Grain Trailer, the load capacity depends on your customized needs, customers engaged in transportation and logistics are welcome to purchase from sunsky.
