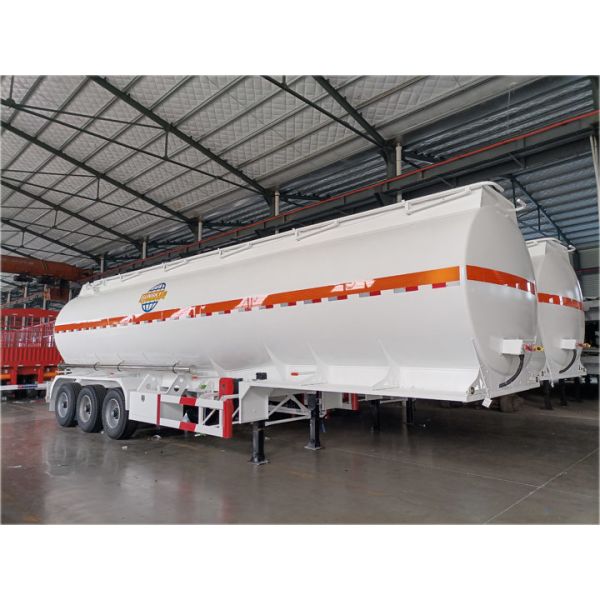

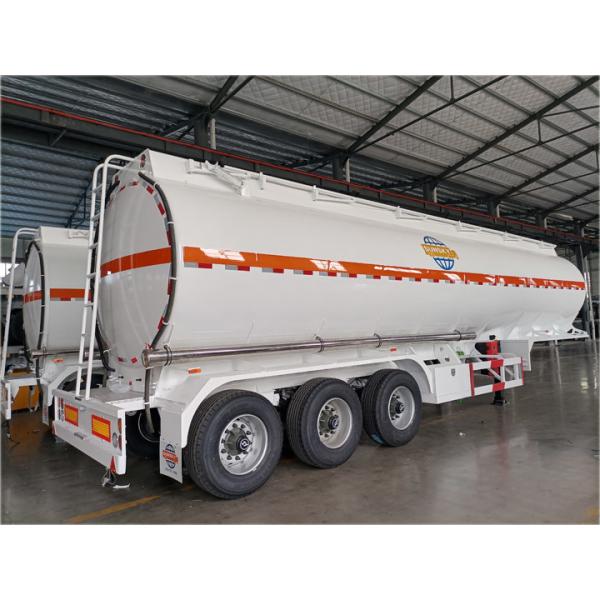

5 Compartments 45 CBM Aluminium Alloy Fuel Tanker Trailer
5 Compartments 45 CBM Aluminium Alloy Fuel Tanker Trailer
Specifications
Brand Name :
SUNSKY
Certification :
BV/CCC/CE/DOT/SGS
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
30 Working Days
Material :
Aluminum Alloy
Thickness :
6mm
Weight :
13 Tons
Volume :
30kl To 50kl
Tires :
12R22.5
Compartments :
5
Description

45CBM 5 Compartments Aluminum Alloy Fuel Tanker Trailer

Usage

Aluminum Alloy fuel tanker trailer is suitable for carrying fuel oil, cooking oil.

Advantages

1. Aluminum tanker trailer have a longer life span than carbon steel tank,it can save energy and lighter in tare weight.

2. The tank body of aluminum tanker trailer is made of high-strength and wear-resistant high-level aluminum alloy.

3. Advanced TIG welding robot, 100% x-ray inspection pass rate

4. Bulk heads and anti-surfers with rise structure,high strength.

5. European standard loading and unloading system.safe and environmental friendly.

6. Tank section with international standard small arc,improve tank strength more uniform intensity.

5 Compartments 45 CBM Aluminium Alloy Fuel Tanker Trailer

5 Compartments 45 CBM Aluminium Alloy Fuel Tanker Trailer

Specification

Dimension(mm): 11700*2500*3850mm
Tare weight: 7200kg
Volume: 46000 liters
Tank body: 6mm aluminum alloy 5182
End plate : 6mm aluminum alloy 5182
Baffles plate: 5mm aluminum alloy 5182
Medium: Diesel Oil,Petrol
Compartment: 6
Main frame: Heavy duty and extra durability designed;high tensile steel,coupled by automatic welding process,
Manholes cover: DN500 API aluminum manhole cover* 5sets.
Discharge valve: 4” valve *6sets,With product display indicator,4”-3”gravity drop coupling.
Discharge pipe: 4〞rubber hose, 2pcs
Bottom valve: 4” API aluminum pneumatic bottom valve *5sets
Vapor recovery: without
Overflow detection: without
Fuel loading: Top filling
Walkway: Ladder on the back.On top of tank, 3mm thick steel perforated, anti-slip walk away will be provided within the manual operating guardrail.
Anti-static devices:

Including ground towing,static line plate,copper.Winder equipped with

A Ø6 mm² power cable .Anti-static metallic braid connect trailer’s chassis to tanker body
Axle : FUWA Brand 13Ton *3axles
Suspension : Airbag suspension with front axle lifting
Tire : 315/80R22.5*13units
Wheel rim: 9.00*22.5 *13pcs
Kingpin : 2” or 3.5’’bolt-in king pin
Landing gear : two-speed, manual operating ,heavy duty landing gear
Braking system: WABCO RE6 relay valve.T30/30 spring brake chamber.40L air tanks .
ABS: Without ABS
Electrical: Voltage 24V, Receptacle 7 ways (7 wire harness), Side marker lamp LED type
Painting : Complete chassis sand blasting to clean rust ,2coat of anti-corrosive prime,2coats of final paint. Wax spray. Color as clients order
Accessories: Two spare tire carrier,One tool box,One crank, One shaft head wrench.2sets ABC Dry Power fire extinguisher.
