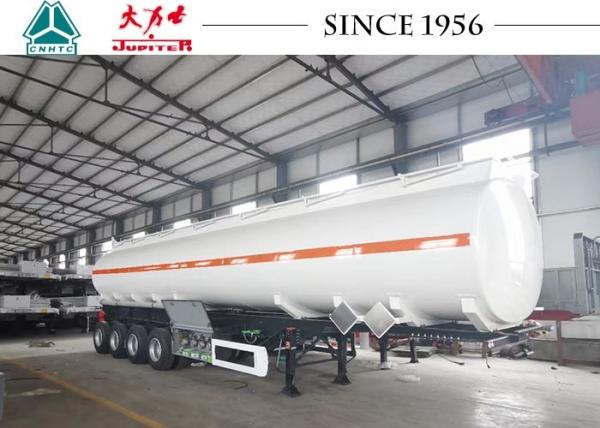

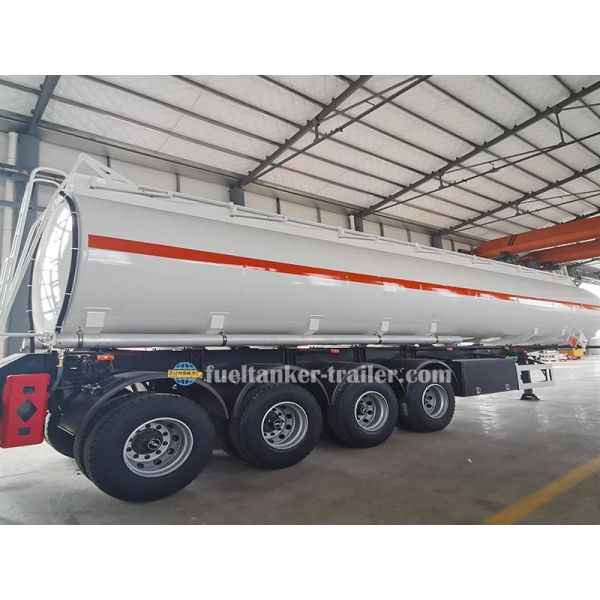

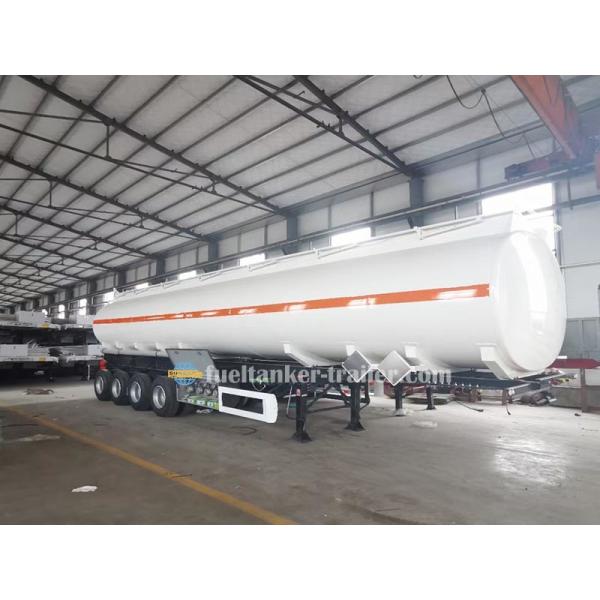

13T Q345B Carbon Steel Fuel Tanker Trailer With Spring Suspension
13T Q345B Carbon Steel Fuel Tanker Trailer With Spring Suspension
Specifications
Brand Name :
SUNSKY
Certification :
BV/CCC/CE/DOT/SGS
Place of Origin :
CHINA
MOQ :
1 units
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
30 Working Days
Dimension: :
12300*2500*3700
Payload: :
45 Tons
Material: :
Q345B Carbon Steel
Suspension: :
3 Axles With Spring And 1 Axles With Airbag And Lifting
Description

4 Axle 13 tons Fuel Tanker Trailer with spring suspension

4 axle fuel tanker trailer is a kind of semi-trailer use for carry fuel,diesel etc.Can also be designed to carry beer, water, milk, alcohol etc. The gravity center of fuel tanker trailer is designed as low as possible to minimize the risks of overturns . More suitable use in rush roads. More safe for fuel transport.Special design and produce for West African countries.As per the TOTAL oil requirements.

13T Q345B Carbon Steel Fuel Tanker Trailer With Spring Suspension

I. Advantages

1. Follow the ADR standard to design and produce, use for TOTAL Oil transportation.

2. Advanced pneumatic operating discharge system, emergency foot valves with aluminum alloy material for each compartment.

3. The gravity center of fuel tanker trailer is designed as low as possible to minimize the risks of overturns. More suitable use in rush roads. More safe for fuel transport.

4. The capacity of fuel tanker tanker trailer can be made from 30000 liters to 50000 liters, compartments from 1 to 8. To meet the clients' different requirements.

5. Advanced pneumatic operating discharge system, emergency foot valves with aluminum alloy material for each compartment.

II. Specification

Dimensions(mm) 12300*2500*3700
Load capacity(kgs) 45000
Compartment Number 4 (15000L/7500L/7500L/15000L)
Effective Cubage 45,000 liters
Axle 13 tons,4 axles
Suspension 3 axles with spring and 1 axles with airbag and lifting
Type of landing legs 19"
King pin 3.5“ bolt-in
Tire 315/80R22.5
Rim 9.00*22.5
Braking system Two of Wabco Re-6 relay vavle,4 units of MBA T30/30 spring chamber
4S/2M ABS system
Manhole Φ500
Discharge valve 4pcs of 3”
Discharge system pneumatic operating
Discharge horse 2x6m
Bottom vavle 4 pcs

13T Q345B Carbon Steel Fuel Tanker Trailer With Spring Suspension

III. Quality guarantee

1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.

2. Two years free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment, ensure to meet your local road regulation.
