Easy Maintenance Fuel Tanker Trailer 40000 Kgs Payload 11500*2500*3700mm Dimension
Easy Maintenance Fuel Tanker Trailer 40000 Kgs Payload 11500*2500*3700mm Dimension
Easy Maintenance Fuel Tanker Trailer 40000 Kgs Payload 11500*2500*3700mm Dimension
Easy Maintenance Fuel Tanker Trailer 40000 Kgs Payload 11500*2500*3700mm Dimension
Easy Maintenance Fuel Tanker Trailer 40000 Kgs Payload 11500*2500*3700mm Dimension
Easy Maintenance Fuel Tanker Trailer 40000 Kgs Payload 11500*2500*3700mm Dimension
Easy Maintenance Fuel Tanker Trailer 40000 Kgs Payload 11500*2500*3700mm Dimension
Easy Maintenance Fuel Tanker Trailer 40000 Kgs Payload 11500*2500*3700mm Dimension
Specifications
Brand Name :
SUNSKY
Certification :
BV/CCC/CE/DOT/SGS
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 Unit Per Month
Delivery Time :
25 Working Days
Packaging Details :
No Packing
Material :
Q345B Carbon Steel
Suspension :
Spring suspension with 8 pcs leaf spring
ABS :
Wabco Brand
Payload :
40 tons
Volume :
40000 Liters
Thickness :
5 mm
Description

40000 Liters Fuel Tanker Trailer With 6 Compartments Exported To Philippines

I. Application

Use for carry Fuel,gasoline,petroleum,palm oil

II. Feature

1. Optional for a bottom loading fuel tanker trailer, can install the API adaptor valves, anti-overfill and vapor recovery system as your request.

2. The Anti-wave baffles of fuel tanker trailers adopt T610L high strength steel plate can increase the yield and tensile strength, have a lower tare weight.

3. Install Wabco brand ABS.The axle, tire and other accessories of fuel tanker trailer are the well-known brand like Fuwa, Bpw, Jost, Triangle brand which supplied by the domestic and foreign professional manufacturers.

4. The fuel tanker trailers are made of high-tensile Q345B steel, 5 mm thickness for dish, 6 mm thickness for shell, the tanker body is stronger.

III. Quality guarantee

1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.

2. Two years free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirement, ensure to meet your local road regulation.

IV. Specification

Style 40,000L 3 Axle Fuel Tank Trailer
The thickness of shell&dish 5mm/ Q345B carbon mild steel
Compartment: 6
Dimension(L*W*H)mm: 11500*2500*3700
Payload(kgs): 40000
Tare weight(kgs): 10000
Kingpin JOST 3.5” bolt-in
Landing gear JOST 19” C200T
Tire size 12R22.5 (13 sets)
Rim size 9.00*22.5 (13 sets)
Axle Fuwa brand-13ton
Leafs spring Spring suspension with 8 pcs leaf spring
Brake system Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Manhole: Europe Standard Φ500
Discharge and bottom valve Pneumatic 3”
ABS Wabco Brand

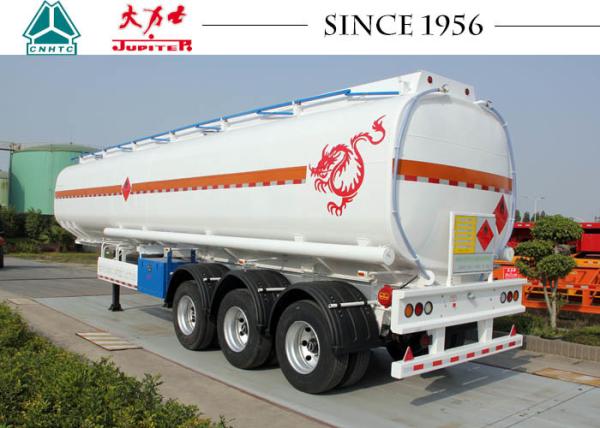

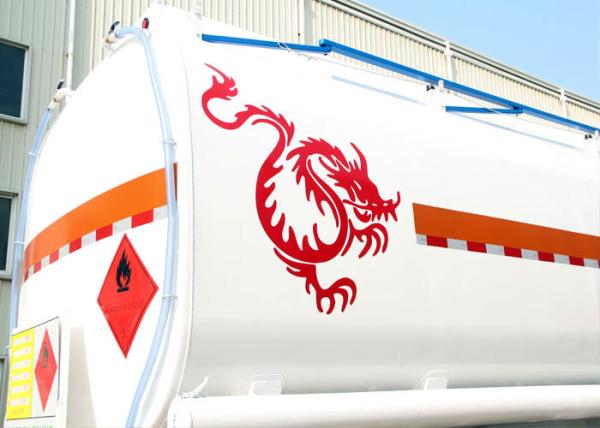

V. Detailed Photo

Easy Maintenance Fuel Tanker Trailer 40000 Kgs Payload 11500*2500*3700mm Dimension

Easy Maintenance Fuel Tanker Trailer 40000 Kgs Payload 11500*2500*3700mm Dimension

Easy Maintenance Fuel Tanker Trailer 40000 Kgs Payload 11500*2500*3700mm Dimension
