745.7KW Air Mixer Valve
745.7KW Air Mixer Valve
Specifications
Brand Name :
IMPCO
Model Number :
Model 600D-1-2
Certification :
UL
Place of Origin :
USA
MOQ :
24
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Price :
Depending on quantity
Part Description :
Carburetor/Mixer
Gas Type :
LPG Vapor/ Natural Gas/Landfill Gas/ Digest Gas
Mounting Position :
Vertical
HP/KW Rating :
1,000 hp (745.7 kW) @ 1600 CFM (755 L/s)
Description
LPG / Natural Gas / Landfill/ Digest Gas, Concentric Flow Type Air Valve Mixer Up To 745.7 KW , Gas Metering Valve
LPG / Natural Gas / Landfill/ Digest Gas, Concentric Flow Type Air Valve Mixer Up To 745.7 KW , Gas Metering Valve

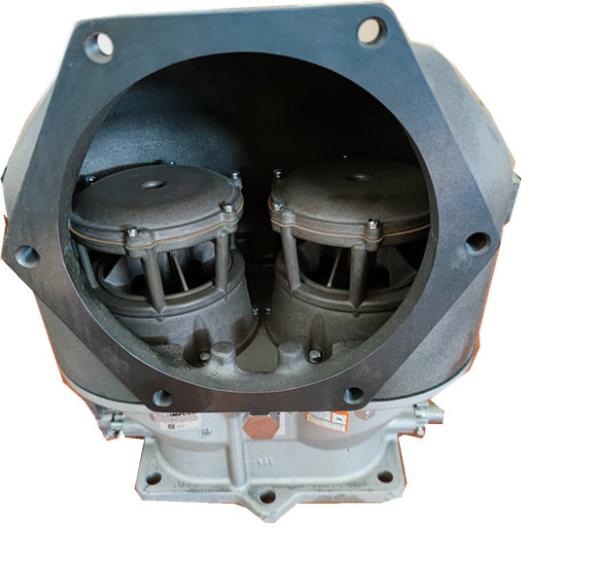

The Model 600D-1-2 is a concentric flow type air valve carburetor. This mixer is suitable for LPG Vapor,Natural Gas, Landfill and Digester gases for applications requiring up to 1600 CFM.The air/fuel ratio is controlled by the adjustable power valve, jet, shape of the gas metering valve and the pressure from the gas regulator.
SPECIFICATIONS
Fuel Type
LPG Vapor 90% + Propane
Natural Gas 85% + Methane
Digester Gas 56-72% Methane
Landfill Gas 45-56% Methane
Inlet Pressure +5.0” w.c. (1.24 kPa) over Air Inlet (Idle Setting)
Operating Temperature Range -40°F to +250°F (-40°C to +121°C)
Mounting Position Vertical
HP/kW Rating 1,000 hp (745.7 kW) @ 1600 CFM (755 L/s) and 2.0” Hg manifold depression
745.7KW Air Mixer Valve745.7KW Air Mixer Valve
