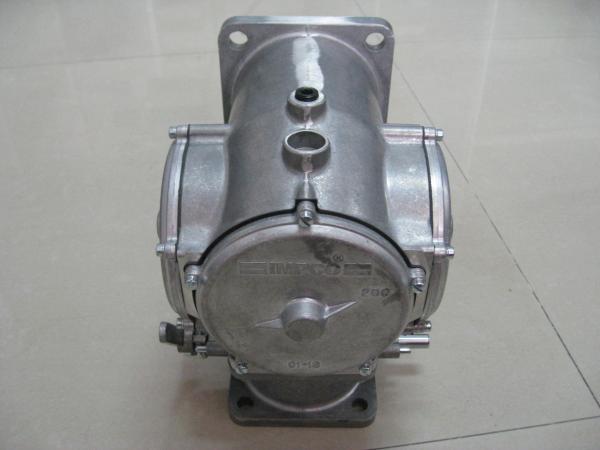

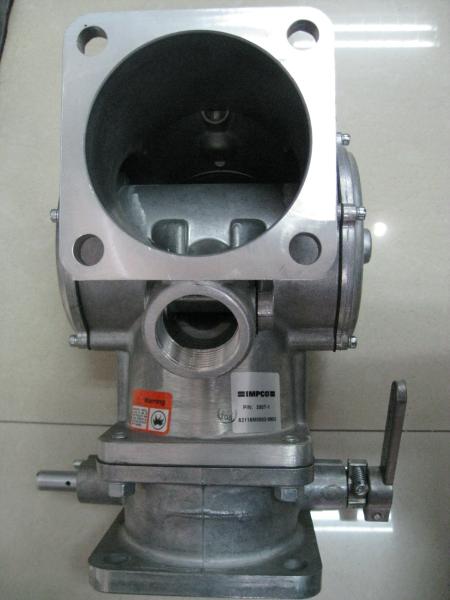

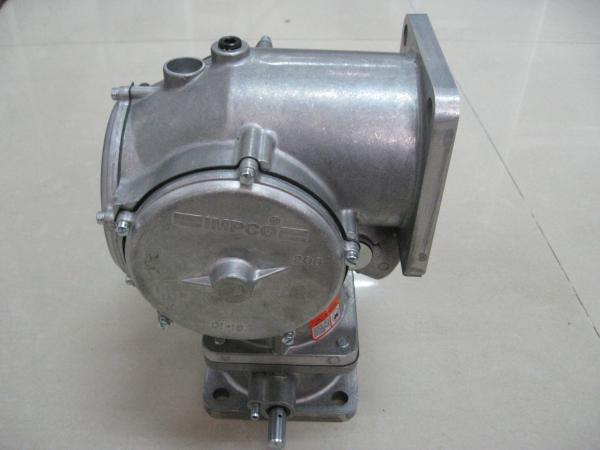

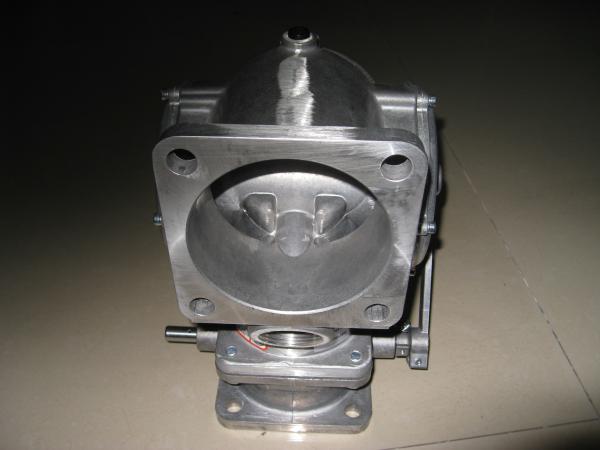

Digester Gas 425Hp IMPCO Air Valve Carburetor
Digester Gas 425Hp IMPCO Air Valve Carburetor
Digester Gas 425Hp IMPCO Air Valve Carburetor
Digester Gas 425Hp IMPCO Air Valve Carburetor
Digester Gas 425Hp IMPCO Air Valve Carburetor
Digester Gas 425Hp IMPCO Air Valve Carburetor
Digester Gas 425Hp IMPCO Air Valve Carburetor
Digester Gas 425Hp IMPCO Air Valve Carburetor
Specifications
Brand Name :
IMPCO
Model Number :
Model 200T
Certification :
UL
Place of Origin :
USA
MOQ :
24
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Material :
Aluminum
Fuel Type :
LPG Vapor, Natural Gas, or Digester/Landfill Gas (550 - 2,500 BTU)
Operating Temperature Range :
.-40°F to +250°F (-40°C to +121°C)
HP/KW Rating :
425 hp (316.9 kw)
Flow Rate :
680 CFM (320.9 L/s)
Inlet Pressure :
-1.5” w.c. (-0.37 kPa)
Mounting Position :
Vertical
Diaphragm Material :
Hydrin(standard); Silicone (Optional)
Description
IMPCO Large Engine Mixer Model 200T A Triple Diaphragm Air-Valve Carburetor/Mixer. LPG Vapor, Natural ,And Digester Gas

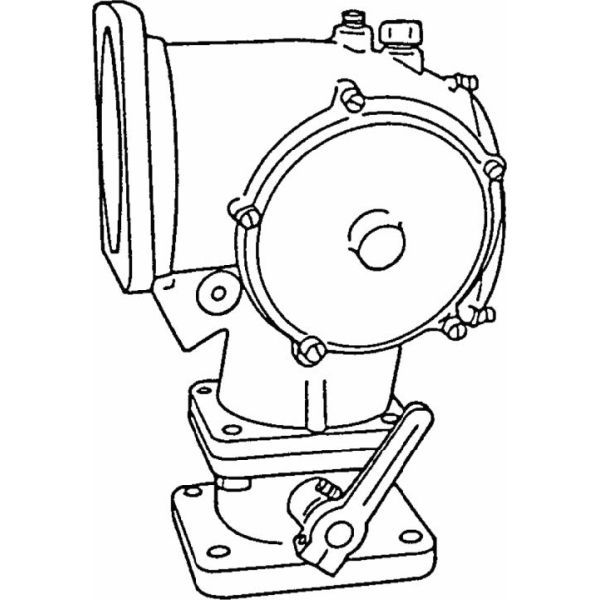

Model 200T
DESCRIPTION
The Model 200T is a triple diaphragm air-valve carburetor/mixer that offers a 90° air inlet to provide low overhead clearance, and is available with several air horn and throttle valve options. This unit is available for LPG Vapor, Natural Gas, and Digester Gas applications as low as 500 BTU with airflow requirements up to 680 CFM (320.9 L/s). All DG model mixers reduce airflow by 30%. The Model 200T is also available for feedback applications with the ’FB’ designation.
The 200T mixer provides a convenient 1/4” balance port at the air inlet. Additional low speed idle mixture control can be obtained to lean air/fuel mixtures through the use of optional shims.
SPECIFICATIONS
Fuel Type LPG Vapor, Natural Gas, or Digester/Landfill Gas
(550 - 2,500 BTU)
Inlet Pressure -1.5” w.c. (-0.37 kPa)
Operating Temperature Range -40ºF to +250ºF (-40ºC to 121ºC)
Mounting Position Vertical
Diaphragm Material Hydrin (Standard), Silicone (Optional)
HP/kW Rating 425 hp (316.9 kW) @ 680 CFM (320.9 L/s) and 2.0” Hg manifold depression
