3-1/16 Air Horn 200m-2-2 Impco Propane Carburetor 160.3kW
3-1/16 Air Horn 200m-2-2 Impco Propane Carburetor 160.3kW
Specifications
Brand Name :
IMPCO
Model Number :
200M-2-2
Certification :
UL
Place of Origin :
USA
MOQ :
24
Price :
Depending on quantity
Payment Terms :
T/T
Supply Ability :
1200pcs per 8weeks
Delivery Time :
8 weeks
Packaging Details :
carton
Part Description :
Mixer
Gas Type :
LPG Vapor or Natural Gas
Mounting Position :
Vertical
Diaphragm Material :
Hydrin (Standard), Silicone (Optional)
Compatible Equipment Make :
IMPCO
Manufacturer Part Number :
FB200M2-2
Description

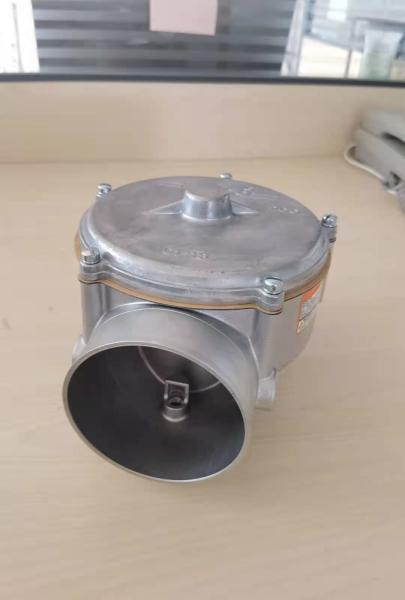

200M-2-2 IMPCO MIXER WITH 3-1/16" AIR HORN AND SILICONE DIAPHRAGM
IMPCO 200M-2-2 Brief Introduction:

LPG Vapor or Natural Gas for applications with air flow requirements up to 345 CFM (162.8 L/s).

The Model 200 is also available for feedback applications with the ’FB’ designation.

The 200 mixer provides a convenient 1/8” balance port at the air inlet. Additional low speed idle mixture
control can be obtained to lean air/fuel mixtures through the use of optional shims.

IMPCO 200M-2-2 specifications
SPECIFICATIONS
Fuel Type LPG Vapor or Natural Gas
Inlet Pressure -1.5” w.c.
Operating Temperature Range -40ºF to +250ºF
Mounting Position Vertical
Diaphragm Material Hydrin (Standard), Silicone (Optional)
HP/kW Rating 172 hp (128.0 kW) @ 276 CFM (130 L/s) and 1.5” Hg
manifold depression
215 hp (160.3 kW) @ 345 CFM (162.8 L/s) and 2.0” Hg manifold depression
3-1/16

3-1/16
3-1/16
