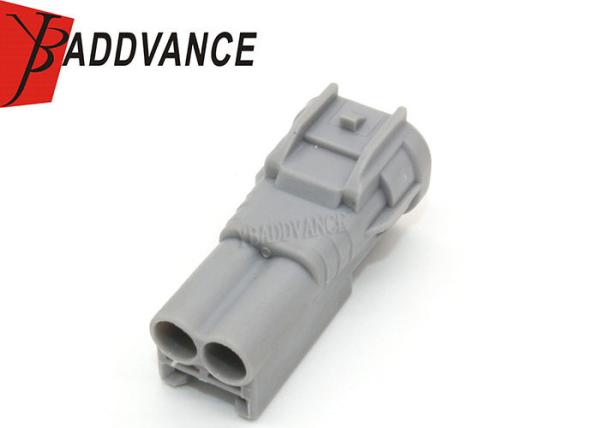

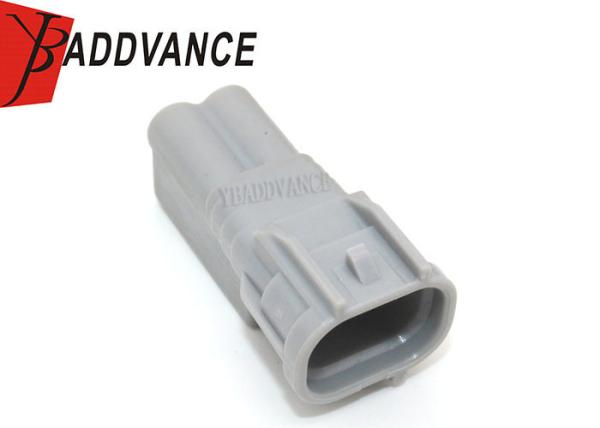

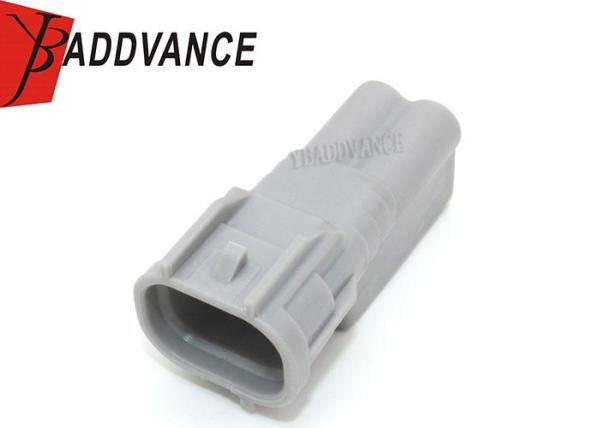

Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota
Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota
Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota
Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota
Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota
Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota
Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota
Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota
Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota
Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota
Specifications
Brand Name :
YBADDVANCE
Model Number :
6188-0266
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 UNITS
Price :
USD 0.5-0.7 Per set with crimp terminals
Payment Terms :
T/T, Western Union,paypal,credit card
Supply Ability :
50,000 units/month
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
Sumitomo Number :
6188-0266
Series :
TS Sealed Series
Material :
PBT
Color :
Gray
Sealed/Unsealed :
Sealed
Male/Female :
Male
Number of Way :
2 way
Mating parts :
6189-0249
Leak current :
100μA Max.
Insulation resistance :
100MΩ Min.
Description

Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota

Product Description

2 Pin Sumitomo 6188-0266 Male Connector Fits wires from .5mm - 1.25mm (16 - 22 AWG).

It's come with Tough plastic housing with inner seal, plus wire seals and crimp terminals.

Terminals:

2.3mm 8100-0457
2.3mm 8100-1340
2.3mm 8100-0458
2.3mm 8100-1007

Wire seals:

2.3mm 7165-0842
2.3mm 7165-0349
2.3mm 7165-0395
2.3mm 7165-0351

Specification

Keywords Sumitomo 2 pin male connector
Original Number 6188-0266
Type Waterproof connector
Male/Female male
Material PBT
Series TS 090 Series 2.3mm(090)
Contact resistance

Initial
3mΩ Max.
after durability tests
10mΩ Max.
Leak current 100μA Max.
Insulation resistance 100MΩ Min.
seal

Initial
50kPa Min.
after durability tests
30kP
Quality Control All goods will be 100% inspected before shipment
Color Gray Color
Operating Temperature range -40℃~120℃
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1kgs/100 pieces
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

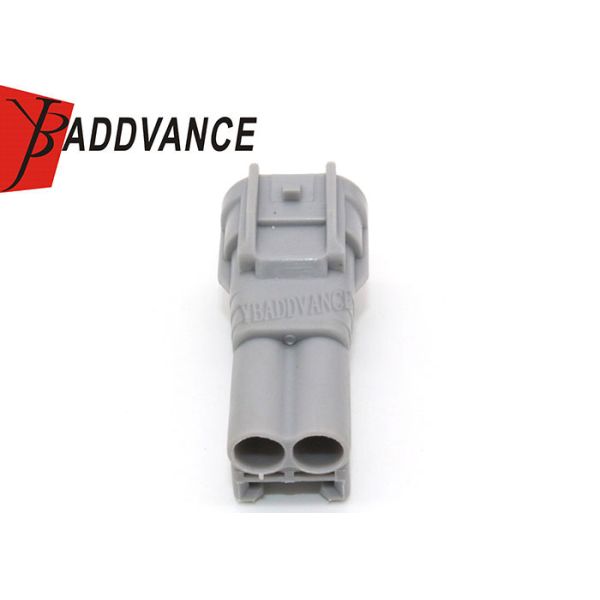

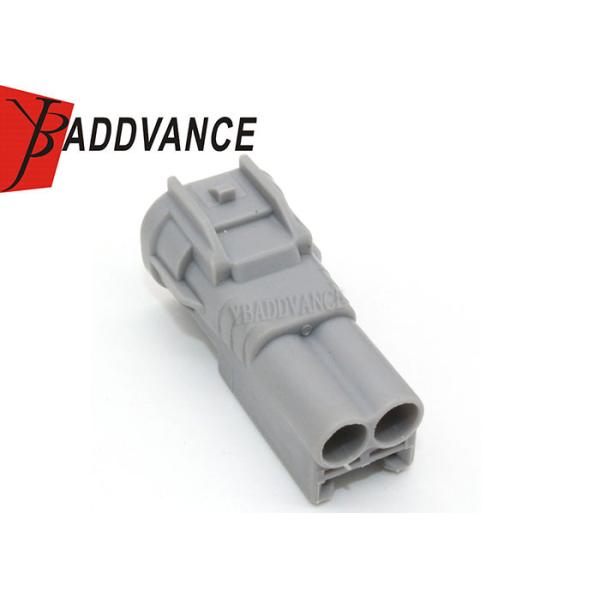

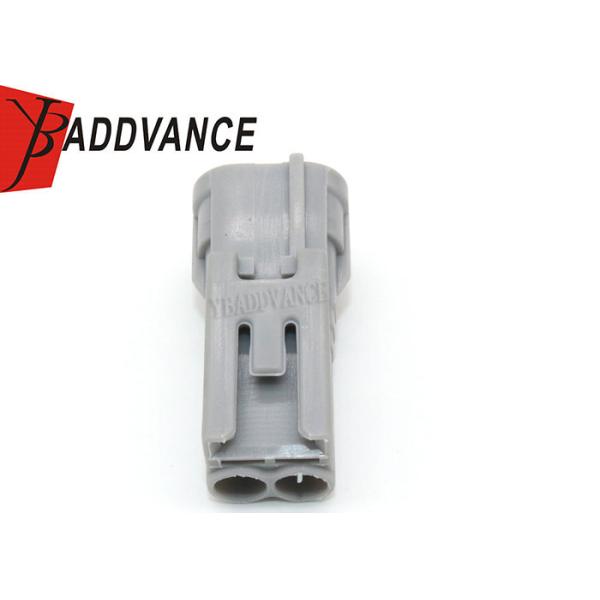

More details about pictures

Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota

Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota

Sumitomo TS Sealed Series 2.3mm 090 2 Pin Male Connector 6188-0266 For Toyota
