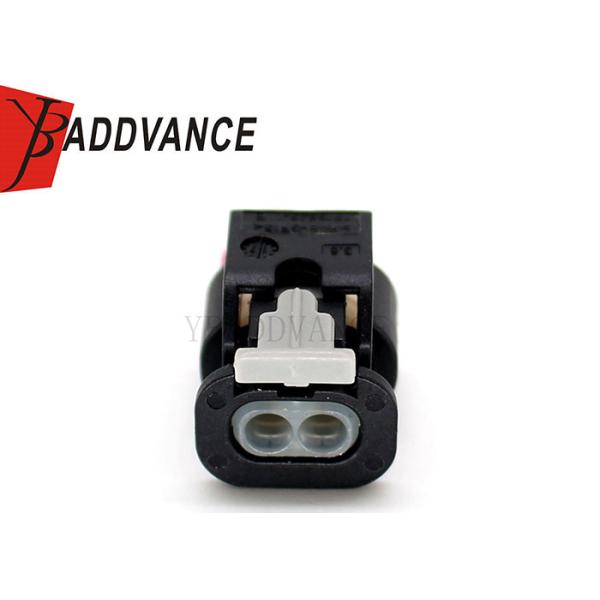

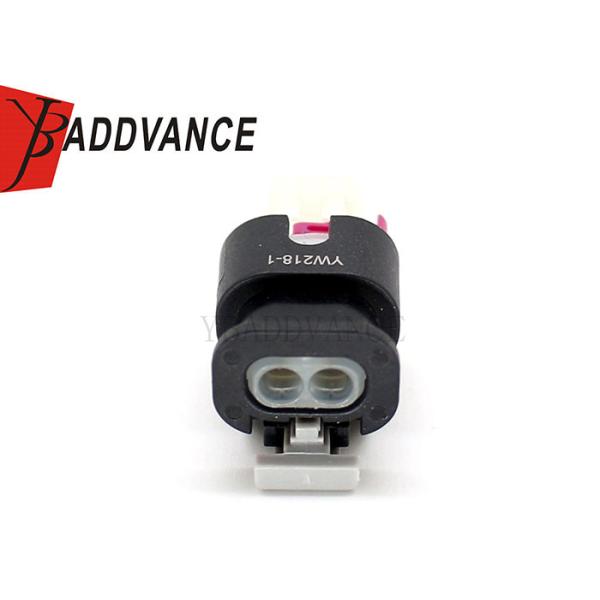

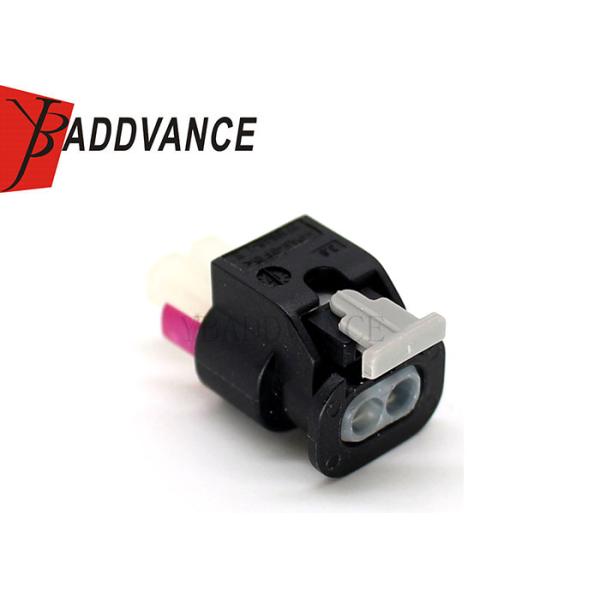

TE / AMP MCON 1.2 Female Socket Connector 1718648-1 1718647-1 ISO 9001 Approved
TE / AMP MCON 1.2 Female Socket Connector 1718648-1 1718647-1 ISO 9001 Approved
TE / AMP MCON 1.2 Female Socket Connector 1718648-1 1718647-1 ISO 9001 Approved
TE / AMP MCON 1.2 Female Socket Connector 1718648-1 1718647-1 ISO 9001 Approved
TE / AMP MCON 1.2 Female Socket Connector 1718648-1 1718647-1 ISO 9001 Approved
TE / AMP MCON 1.2 Female Socket Connector 1718648-1 1718647-1 ISO 9001 Approved
TE / AMP MCON 1.2 Female Socket Connector 1718648-1 1718647-1 ISO 9001 Approved
TE / AMP MCON 1.2 Female Socket Connector 1718648-1 1718647-1 ISO 9001 Approved
TE / AMP MCON 1.2 Female Socket Connector 1718648-1 1718647-1 ISO 9001 Approved
TE / AMP MCON 1.2 Female Socket Connector 1718648-1 1718647-1 ISO 9001 Approved
Specifications
Brand Name :
YBADDVANCE
Model Number :
1718648-1
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 UNITS
Price :
negotiation
Payment Terms :
T/T, Western Union,paypal,credit card
Supply Ability :
50,000 units/month
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
TE P/N :
1718647-1
Series :
MCON 1.2 Series
Housing Material :
PA6 GF15
Number of Pin :
2 Pin
Sealed/Unsealed :
Sealed
male/female :
female
Connector Style  :
Housing for female terminals
Mating Tab Width  :
1.2 mm [ .047 in ]
Connector System :
Wire-to-Board, Wire-to-Device, Wire-to-Wire
Centerline (Pitch)  :
4 mm [ .157 in ]
Description

TE / Amp MCON 1.2 Female Socket Connectors 1718648-1 1718647-1

Product Description

YBADDVANCE 2 pin Female Socket Connector

Terminal conductor size 20 - 24 awg (.2 - .5mm)

Comes Complete with Connector, Terminals, and Yellow wire seals

Includes:

TE/Amp MCON 1718648-1 1718647-1

TE/Amp MCON 7-1452668-1 Contact terminals

TE/Amp MQS 967067-2 Wire Seal

Specification

Keywords 2 Pin female Connector
TE Number 1718648-1 1718647-1
Type High quality Original brand
Male/Female female
Material PA6 GF15
Mating Tab Width 1.2 mm [ .047 in ]
Centerline (Pitch) 4 mm [ .157 in ]
Connector System Wire-to-Board, Wire-to-Device, Wire-to-Wire
Contact Type Crimp
Number of Positions 2
Connector Style Housing for female terminals
Quality Control All goods will be 100% inspected before shipment
Color Black
Operating Temperature range -40℃~125℃
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1kgs/100 pieces
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
