3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
Specifications
Brand Name :
YBADDVANCE
Model Number :
6188-4775
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 units
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal , credit card
Supply Ability :
50,000 units/moth
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
P/N :
6188-4775
Martial :
PBT/PA66
Color :
Black
Type :
Sumitomo connector
Feature :
Waterproof
Gender :
Male
Way :
3 hole
HS code :
8536909000
WARRANTY :
1 year
PLACE OF ORIGIN :
Shaanxi,China
Description

3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775

Description

3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector

It is used for Japanese Car

1 Row , 3 Way

Series : HV/HVG 040 1.0 mm sealed

Mating Part : 6189-7037

It come with 1 housing +3 wire seals+3 terminals

Width :20.1 mm

Height: 17.7 mm

Length :35.7 mm

Material

Housing:PBT+G,PA66+GF;
Terminal:Copper Alloy,Brass,Phosphor Bronze.

If you want more , please contact us to get the cheaper price

Specification

Item name

3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
P/N 6188-4775

Wire Size

 18-22AWG

Operating Temperature range

 -40℃~125℃

Insulation resistance

 100M Min.

MOQ

 100 units/lot
Key words

3 pin Sumitomo Connector
Design Tooling

Sending us samples or drawing to design it
Delivery Time

About 5-8 work days
Sealed/Unsealed

sealed

Leak current

 Initial50kPa Min.after durability tests30kPa Min.
The number of hole 3 way
Color Black
Warranty 1 year
Application Automoive Motorcycles

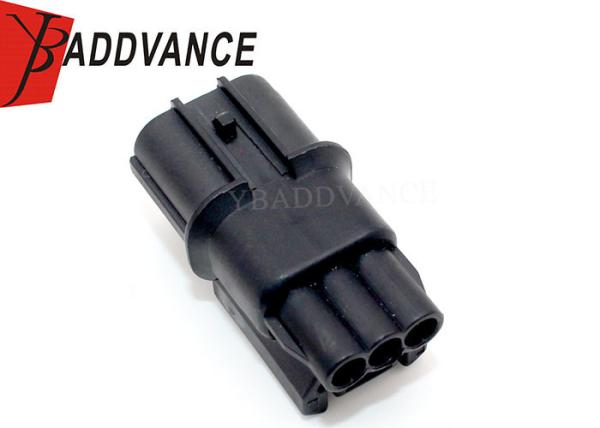

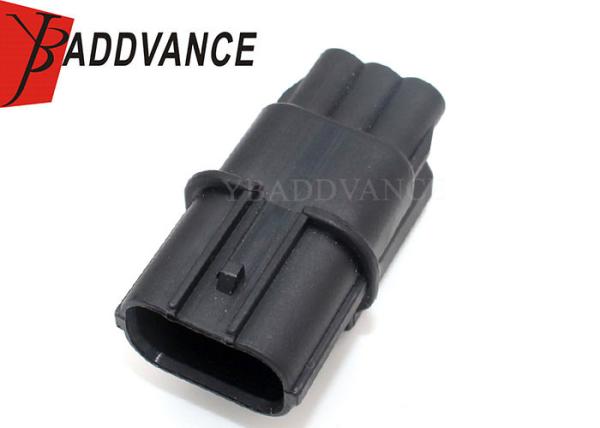

Product Picture Details

3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775

3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775

3 Pin Male Sumitomo HV/HVG Waterproof Automotive Connector 6188-4775
