2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193
2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193
2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193
2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193
2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193
2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193
2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193
2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193
2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193
2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193
Specifications
Brand Name :
YBADDVANCE
Model Number :
12162193
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 units
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal , credit card
Supply Ability :
50,000 units/moth
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
Color :
Black
Martial :
PBT/PA66
P/N :
12162193
WARRANTY :
1 year
Gender :
Female
HS code :
8536909000
Type :
Sealed connector
Feature :
Waterproof
Way :
2 hole
PLACE OF ORIGIN :
Shaanxi,China
Description

2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193​

Description

2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector

Kit includes connector and crimp terminals that must be installed AFTER the wires are inserted into the connector and pulled through to the front.

Once the wire has been fished through the connector, the terminals can be installed and pulled back until the “seat” or click into place.

Height : 18.4 mm

Width : 16 mm

Depth: 27.1 mm

Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These connectors come with the terminals and seals

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name

2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193
P/N 12162193

Wire Size

 18-22AWG

Operating Temperature range

 -40℃~125℃

Insulation resistance

 100M Min.

MOQ

 100 units/lot
Key words

2 pin sealed Connector
Design Tooling

Sending us samples or drawing to design it
Delivery Time

About 5-8 work days
Sealed/Unsealed

sealed

Leak current

 Initial50kPa Min.after durability tests30kPa Min.
The number of hole 2 way
Color Black
Warranty 1 year
Application Automoive Motorcycles

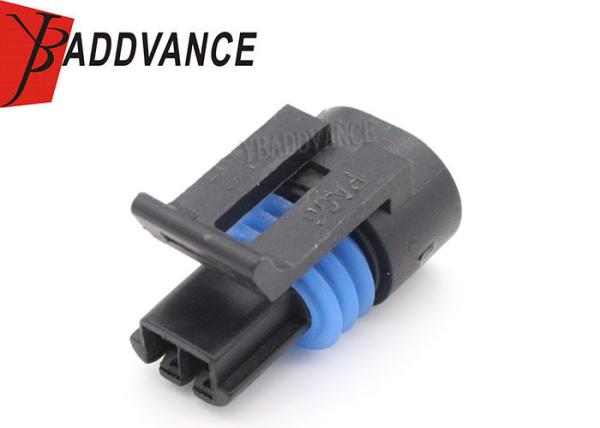

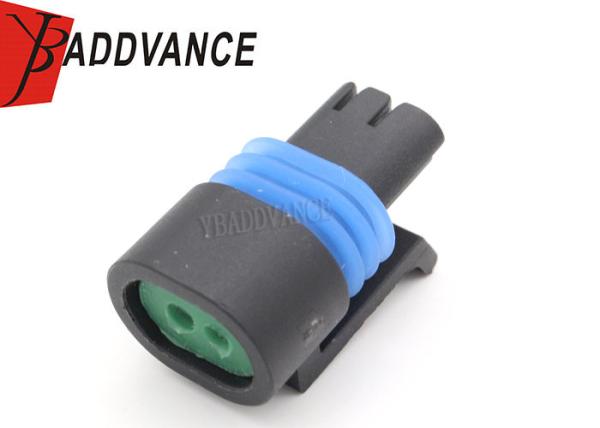

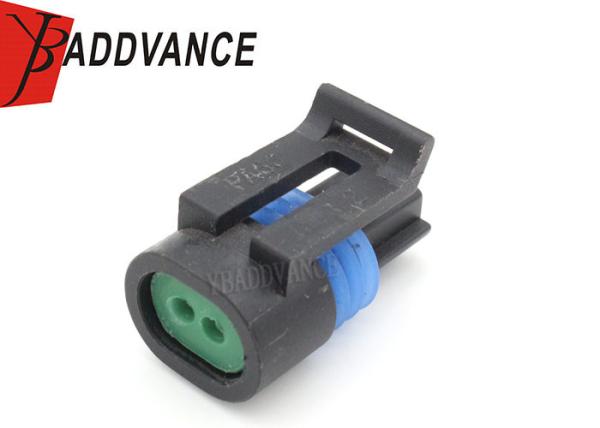

Product Picture Details

2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193

2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193

2 Hole Pull to Seat Metri-Pack 150.2 Series Blk Waterproof Connector 12162193
