4 Pin Female Auto Electric TE Connectivity Connector with Lock
4 Pin Female Auto Electric TE Connectivity Connector with Lock
4 Pin Female Auto Electric TE Connectivity Connector with Lock
4 Pin Female Auto Electric TE Connectivity Connector with Lock
4 Pin Female Auto Electric TE Connectivity Connector with Lock
4 Pin Female Auto Electric TE Connectivity Connector with Lock
4 Pin Female Auto Electric TE Connectivity Connector with Lock
4 Pin Female Auto Electric TE Connectivity Connector with Lock
4 Pin Female Auto Electric TE Connectivity Connector with Lock
4 Pin Female Auto Electric TE Connectivity Connector with Lock
Specifications
Brand Name :
YBADDVANCE
Model Number :
BC7809
Certification :
ISO9001
Place of Origin :
China(mainland)
MOQ :
100 units
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal , credit card
Supply Ability :
50,000 units/moth
Delivery Time :
About 5-8 work days
Packaging Details :
Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
P/N :
BC7809
Martial :
PBT/PA66
Color :
Black
Gender :
Female
Way :
4 hole
Type :
AMP connector
HS code :
8536909000
Feature :
Waterproof
Description

4 Pin Female Auto Electric TE Connectivity Connector with Lock

Description

4 Pin Female Auto Electric TE Connectivity Connector with Lock

Orientation:Straight
Termination:Crimp
Mating Tab Width: 5 mm

TE Connectivity Junior Power Timer Connector Housings with Secondary Locking
Junior Power timer receptacle style connector housings for socket contacts with a 5mm centerline.

They are ideal for many applications including car, marine, lorry, motorcycle, race car, caravan etc. and are connected and disconnected quickly and safely.

Specification

Item name

4 Pin Female Auto Electric TE Connectivity Connector with Lock
P/N BC7809

Wire Size

 18-22AWG

Operating Temperature range

 -40℃~125℃

Insulation resistance

 100M Min.

MOQ

 100 units/lot
Key words

4 pin waterproof Connector
Design Tooling

Sending us samples or drawing to design it
Delivery Time

About 5-8 work days
Sealed/Unsealed

sealed

Leak current

 Initial50kPa Min.after durability tests30kPa Min.
The number of hole 4 way
Color Black
Warranty 1 year
Application Automotive Motorcycles

Product Picture Details

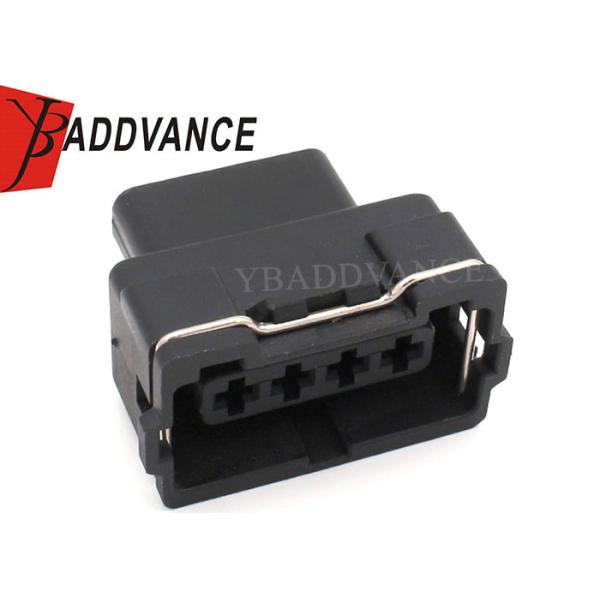

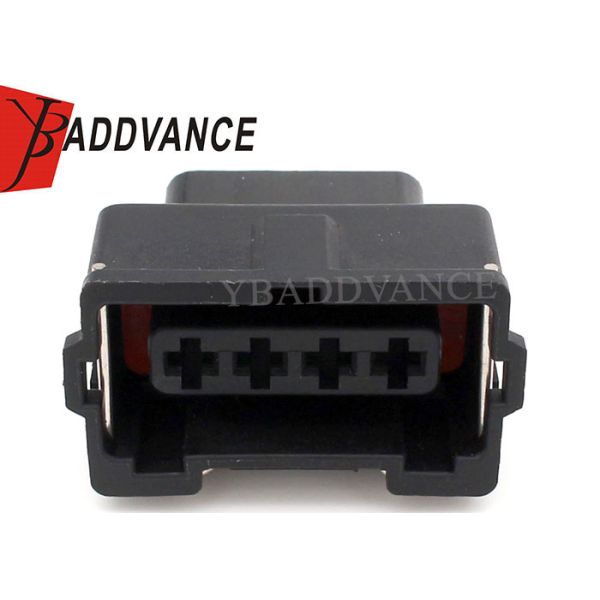

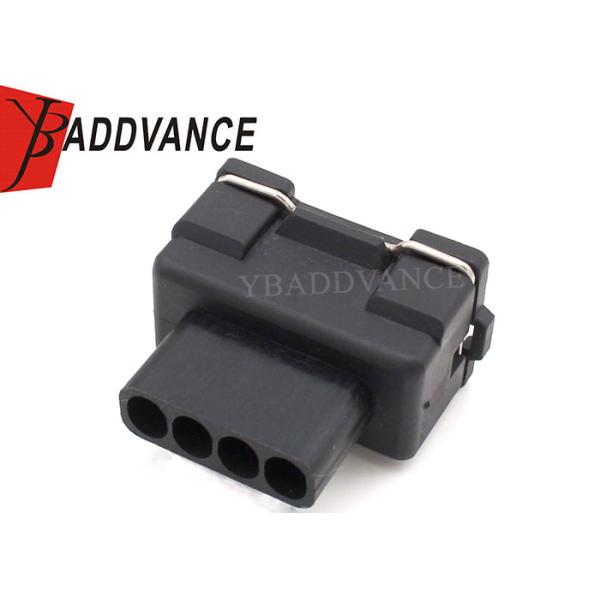

4 Pin Female Auto Electric TE Connectivity Connector with Lock

4 Pin Female Auto Electric TE Connectivity Connector with Lock

4 Pin Female Auto Electric TE Connectivity Connector with Lock
