Net Link FTTH ONU 1GE+1Fe+Wifi Onu Epon Wifi Router For Home To The Home
Net Link FTTH ONU 1GE+1Fe+Wifi Onu Epon Wifi Router For Home To The Home
Net Link FTTH ONU 1GE+1Fe+Wifi Onu Epon Wifi Router For Home To The Home
Net Link FTTH ONU 1GE+1Fe+Wifi Onu Epon Wifi Router For Home To The Home
Net Link FTTH ONU 1GE+1Fe+Wifi Onu Epon Wifi Router For Home To The Home
Net Link FTTH ONU 1GE+1Fe+Wifi Onu Epon Wifi Router For Home To The Home
Net Link FTTH ONU 1GE+1Fe+Wifi Onu Epon Wifi Router For Home To The Home
Net Link FTTH ONU 1GE+1Fe+Wifi Onu Epon Wifi Router For Home To The Home
Specifications
Brand Name :
Fibery
Model Number :
FYE1G1FW
Certification :
ISO9001
Place of Origin :
China
MOQ :
1Unit
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability :
50000Unit/Month
Delivery Time :
5-10 work days
Packaging Details :
inner box+outer carton
Product name :
1GE+1Fe+Wifi Gepon Onu
Wavelength :
Tx 1310nm/Rx1490nm
Type :
EPON ONU
Pon port :
1.25G SC/UPC
Power supply :
12V DC
Chipset :
Reltek
Weight :
0.4kg
Compatible :
Fiberhome,Zte,Huawei
Application :
FTTH FTTB FTTX Network,IPTV,IP Camera
Description

FTTH ONU 1GE+1Fe+Wifi Onu Epon Wifi Router For Home To The Home

Description

FYE1G1FW is designed as HGU (Home Gateway Unit) in deferent FTTH solutions , The carrier-class FTTH application provides data service access.
FYE1G1FW is based on mature and stable, cost-effective EPON technology. It can access to the major EPON OLT.
FYE1G1FWadopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
FYE1G1FW is designed by Realtek chipset 9603C.

Functional Feature

Support EPON Standard of China Telecom EPON CTC3.0
Support ONU auto-discovery/Link detection/remote upgrade of software
WAN connections support Route and Bridge mode
Route mode supports PPPoE/DHCP/ static IP
Support WIFI Interface and multiple SSID
Support QoS and DBA

Support port Isolation and port vlan configuration
Support Firewall function and IGMP Snooping/Proxy multicast feature
Support LAN IP and DHCP Server configuration
Support Port Forwarding and Loop-Detect
Support TR069 remote configuration and maintenance
Specialized design for system breakdown prevention to maintain stable system

Hardware Specificaion

Technical item Details
PON Interface 1 EPON port(EPON PX20+ )
Receiving sensitivity: ≤-27dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KM
Wavelength TX: 1310nm, RX: 1490nm
Optical Interface SC/UPC Connector
LAN Interface 1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless Compliant with IEEE802.11b/g/n,
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps,
2T2R,2 external antenna 5dBi,
Support: multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED 7 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2
Push-Button 3,For Function of Reset,WLAN,WPS
Operating Condition Temperature: 0℃~+50℃
Humidity: 10%~90%(non-condensing)
Storing Condition Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power Supply DC 12V/1A
Power Consumption ≤6W
Dimension 155mm×92mm×34mm(L×W×H)
Net Weight 0.24Kg

Panel lights Introduction

Net Link FTTH ONU 1GE+1Fe+Wifi Onu Epon Wifi Router For Home To The Home

Net Link FTTH ONU 1GE+1Fe+Wifi Onu Epon Wifi Router For Home To The Home

Application

Typical Solution:FTTO(Office), FTTB(Building),FTTH(Home)
Typical Business:INTERNET,IPTV,IP Camera ,WIFI etc

Ordering information

Product Name Product Model Descriptions
SFF Type EPON ONU 1G1F+WIFI 1x10/100/1000Mbps Ethernet, 1 x 10/100Mbps Ethernet , 1 SC/UPC Connector, 2.4GHz WIFI, Plastic Casing, External power supply adapter

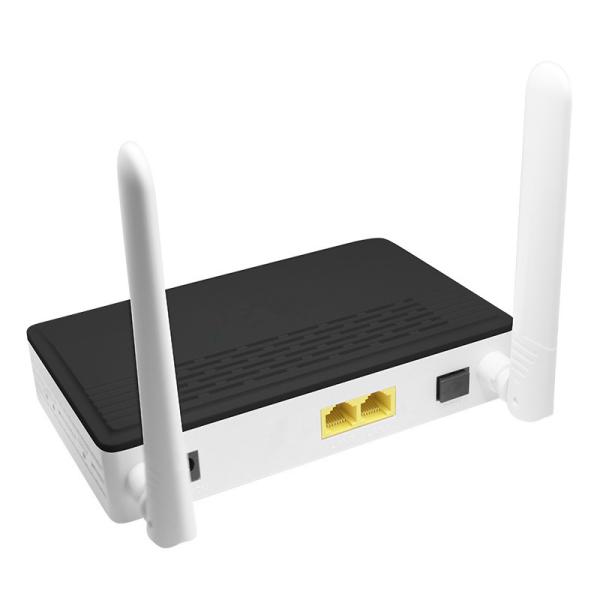

Product Pictures

Net Link FTTH ONU 1GE+1Fe+Wifi Onu Epon Wifi Router For Home To The Home

Net Link FTTH ONU 1GE+1Fe+Wifi Onu Epon Wifi Router For Home To The Home

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
