Specifications
Brand Name :
Hioso
Model Number :
FOWAY1509FCM
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
4000pcs/month
Delivery Time :
2-12 work days
Packaging Details :
38X24X18 CM
Product Name :
9 ports switch
Function :
support managed
Humidity :
5%~90% non-condensing
Wavelength :
850nm/1310nm/1490nm/1550nm
Dimension :
28mm (H)×193mm(W)×119mm (D)
Apply :
security & electronic & traffic system
Description

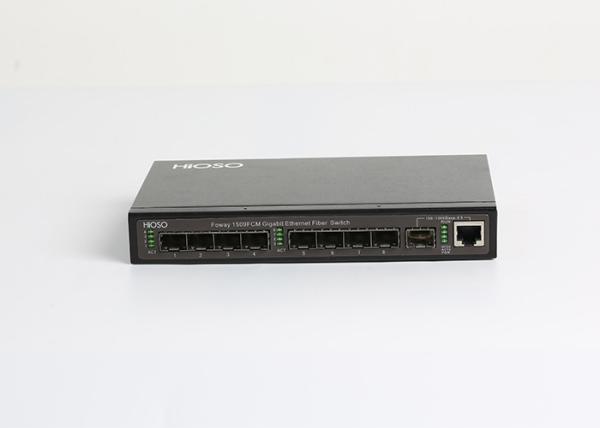

Fiber Optic Switch 8 1000M SFP + 1 Combo Uplink Port With Management

Character

  • Support SFP hot plug
  • Support full rate, full-duplex non-blocking forwarding at each port
  • All optic ports, strengthen the an-interference ability
  • Metal casing design, better for heat dissipation

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree Protocol,IEE802.1w Rapid STP,IEE802.1s Multiples STP,IEE802.1q Vlan,IEE802.1q Qos,IEE802.3ad Trunk,IEE802.3X Flow Control
Wavelength SFP:850nm/1310nm/1490nm/1550nm
Distance

100M SFP Multi-mode: 2km (fiber size 62.5/125μm or 50/125μm)

Single-mode: 20/40/60/80/100/120Km

Single-fiber single-mode: 25/40/60/80/100/120Km

1000M SFP Multi-mode: 220m (fiber size 62.5/125μm) / 550m(fiber size 50/125μm)

Single-mode: 10/20/40/60/80/100/120Km

Single-fiber single-mode:10/20/40/60/80/100/120Km
CAT5: 100m
Port

8 Gigabit SFP fiber ports: 1000Mbps

1 Gigabit Combo port:: 1 Gbps, 100M/1000M SFP&10/100/1000M RJ45
MAC 8K
Buffer memory space 1Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC12V/AC220V
Power consumption 10W

Working

temperature

 -10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Dimension 28mm (H)×193mm(W)×119mm (D)

1000Mbps 1550nm Fiber Distribution Switch 28mm×193mm×119mm

1000Mbps 1550nm Fiber Distribution Switch 28mm×193mm×119mm
