Specifications
Brand Name :
Hioso
Model Number :
HA7000
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
USD200/SET not include NMS and pon cards
Payment Terms :
T/T, Western Union
Supply Ability :
1000/month
Packaging Details :
57*48*29cm 11KG
APPLICATION :
EPON CHASSIS
SLOTS :
1 for NMS card, 8 for OLT cards
Support :
2PON and 4PON card
Power :
AC220V/AC110V/DC48V
Height :
Standard 3U
Description

EPON OLT chassis 8 slots from 2pon to 32PON

Overview

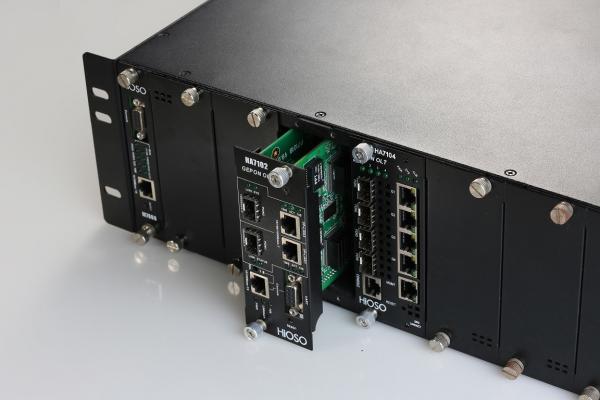

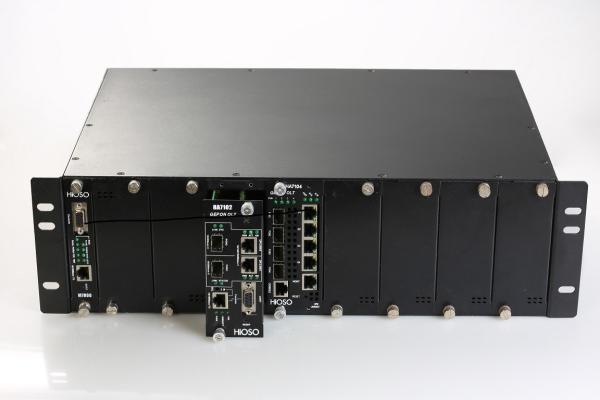

HA7000 is HIOSO EPON rack. HA7000 adopts 19 inch, 3U height rack, supports dual-power supply. The rack supports 8pcs HA7102CS/HA7104 OLT cards, from 2PON to 32PON ports.. Each PON supports 32pcs ONU access within 20KM (maximum 64pcs ONU access within 10KM). It supports integrated management through the network management card M7000.

Technical Specification

Parameter Specification
Slots 8 slots for OLT cards, 1 slot for NMS card M7000
Working temperature -10～55℃
Storage temperature -40～70℃
Humidity 5%～90% non-condensing
Power supply qty 2
Weight 10.69kg
Power supply Dual power AC220V/DC-48V or AC220V+DC-48V (DC12V 20A or DC 5V 20A)
Dimension 132mm(H) ×481mm(W) ×309mm(D)

Order information

Product code Specification Qty
HA7000 3U, 19” rack, with 8 slots, 2 box type power, 2 fan 1
M7000 NMS card 1
HA7102CS EPON OLT, with 2 SFP PON ports and 2 1000M RJ45 uplink ports,1 Console port, 1 RJ45 management port 1-8
HA7104 EPON OLT, with 4 SFP PON ports and 4 1000M uplink ports,1 Console port 1-8
