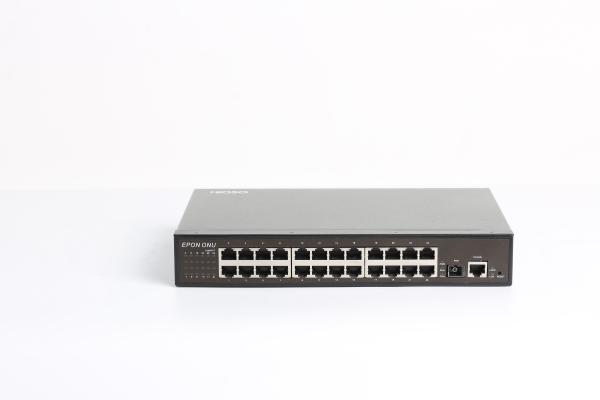

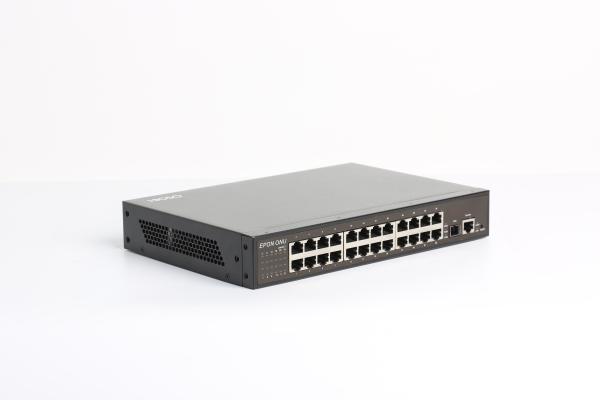

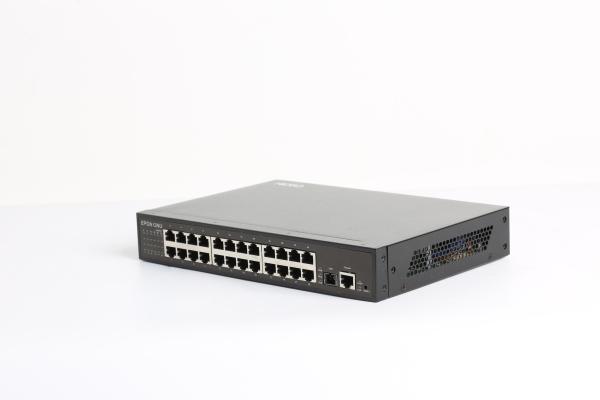

Tx 1310nm Rx1490nm 24 Port EPON ONU 24 10 / 100M Ethernet Ports
Tx 1310nm Rx1490nm 24 Port EPON ONU 24 10 / 100M Ethernet Ports
Tx 1310nm Rx1490nm 24 Port EPON ONU 24 10 / 100M Ethernet Ports
Tx 1310nm Rx1490nm 24 Port EPON ONU 24 10 / 100M Ethernet Ports
Tx 1310nm Rx1490nm 24 Port EPON ONU 24 10 / 100M Ethernet Ports
Tx 1310nm Rx1490nm 24 Port EPON ONU 24 10 / 100M Ethernet Ports
Tx 1310nm Rx1490nm 24 Port EPON ONU 24 10 / 100M Ethernet Ports
Tx 1310nm Rx1490nm 24 Port EPON ONU 24 10 / 100M Ethernet Ports
Specifications
Brand Name :
Hioso
Model Number :
HA7224
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
3000pcs/month
Delivery Time :
3-10 work days
Packaging Details :
38X24X18 CM
Product name :
Epon onu
Application :
FTTH Network
Wavelength :
Tx 1310nm/Rx1490nm
Color :
Black
Warranty :
3 years
Power supply :
AC220V
Description

24 Port Epon Onu 24 10 / 100M Ethernet Ports Industrial Supply Ftth Olt

Feature

  • Apply to IEEE802.3/802.3ah
  • Support auto discovery and auto register (real-time operation)
  • Support DBA and multi types SLA
  • Support IEEE802.1D RSTP
  • Support IGMP Snooping V2 multi-broadcast function
  • Support layer 2 line speed transmit
  • Support EMI and ESD identification
  • 64bit MAC
  • Support VLAN ;Support multi LLID
  • Support user end auto time synchronization based at SNTP
  • Support port rate limitation, loop detection,port isolation
  • Support OAM and remote management

Technical Specification

Parameter Specification
Wavelength 1310(TX)/1490(RX)
Optical power -1~+4dBm
Receiving sensitivity -25dBm
Maximum distance 20km
Cache space 1.25MB
MTBF 100000 hours
PON port SC/PC
EPON Feature

Apply to IEEE802.3ah

Support DBA

Support auto discovery and auto register
Standards

Support IEEE802.3, IEEE802.3u

Support IGMP Snooping V2

SupportIEEE802.1Q VLAN

SupportIEEE802.1P QoS
Management Cooperate with OLT, to upgrade and manage the ONU

Working Environment

Parameter Specification
Power supply AC110~220V@50 /60HZ
Power consumption 18W
Working temperature -10～55℃
Storage temperature -40～70℃
Humidity 5%～90% non-condensing
Dimension 44mm(H) ×310mm(W) ×161mm(D)

Tx 1310nm Rx1490nm 24 Port EPON ONU 24 10 / 100M Ethernet Ports

Tx 1310nm Rx1490nm 24 Port EPON ONU 24 10 / 100M Ethernet Ports
