Specifications
Brand Name :
Hioso
Model Number :
FOWAY1310TFC
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, D/A
Supply Ability :
4000pcs/month
Delivery Time :
2-12 work days
Packaging Details :
38X24X18 CM
Product name :
Ethernet switch
Ports :
10 ports
Products status :
Stock
Transmission rate :
100/1000Mbps
Warranty :
3 years
Description

Gigabit Ethernet Switch 8 100M TP + 2 100/1000M Combo 10 Port Ethernet Switch

Overview

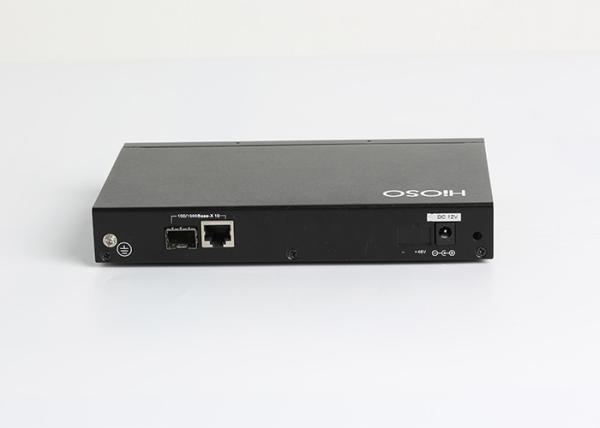

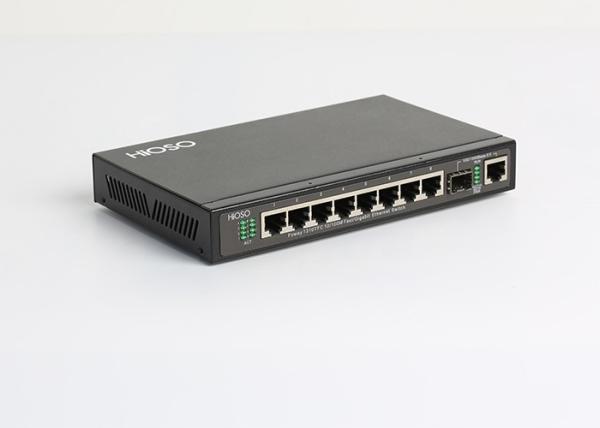

HiOSO FOWAY1310TFC is our ten port Ethernet switch with 8 10/100M RJ45 Ethernet ports and 2 100M/000M combo uplink port .

It can be either Managed or non managed through web/SNMP (optional).

Character

  • 8 10/100M RJ45 ports and 2 100/1000M Combo uplink port
  • support Full rate, full-duplex non-blocking forwarding
  • Support RSR( Rapid Super Ring)tech (optional)
  • 8K MAC learning, 1Mbit storage of forward cache space,7.6G back plane bandwidth
  • (Optional) Anti-high voltage with lightning protection and anti-interference ability on each RJ45 port

Technical Specification

Parameter Specification
Distance

RJ45 port: 100m

SFP port: Multi-mode: 220m (fiber size 62.5/125μm) / 550m(fiber size 50/125μm) Single-mode: 10/20/40/60/80/100/120Km
Port 8 10/100M RJ45 ports ;2 1000M Combo uplink port:
MAC address 8K
Buffer memory space 1Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC12V/1A
Power consumption 3.8W
Working temperature -10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Dimension 28mm (H)×193mm(W)×119mm (D) (external power)

Order Information

NO Type NMS Ports Power
1 FOWAY1310TFC NO 8 10/100M RJ45 +1 1000M Combo uplink DC12V
2 FOWAY1310TFCM WEB 8 10/100M RJ45 +1 1000M Combo uplink DC12V
