DC12V Gigabit Ethernet Switch
DC12V Gigabit Ethernet Switch
DC12V Gigabit Ethernet Switch
DC12V Gigabit Ethernet Switch
DC12V Gigabit Ethernet Switch
DC12V Gigabit Ethernet Switch
DC12V Gigabit Ethernet Switch
DC12V Gigabit Ethernet Switch
Specifications
Brand Name :
Hioso
Model Number :
FOWAY1209TF
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000pcs/month
Delivery Time :
3-10 working days
Packaging Details :
38X24X18 CM
Name :
Gigabit Ethernet Switch
Ports :
8 RJ45 + 1 SC fiber uplink ports
MAC :
4K
Distance :
Cat5:100m
MTBF :
100000 hours
Bit error rate :
<1/1000000000
Description

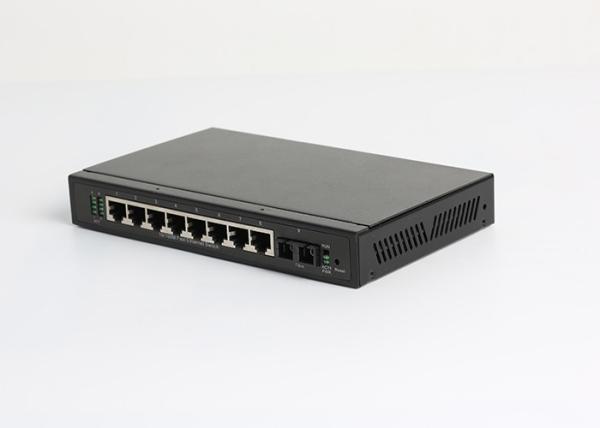

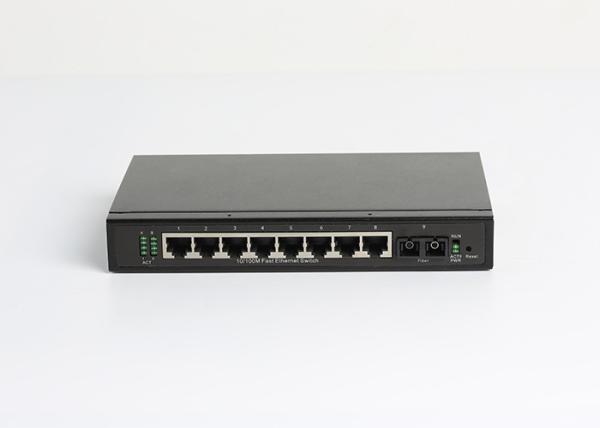

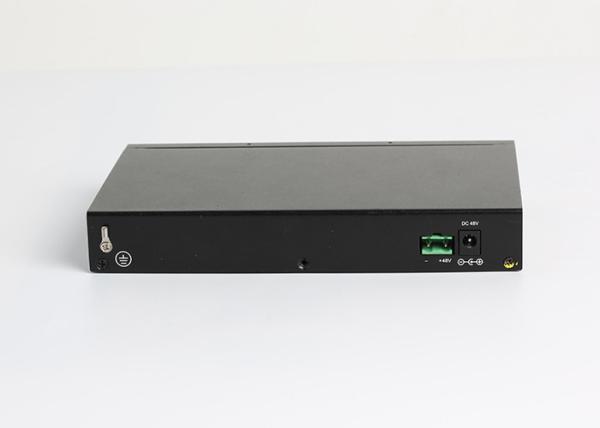

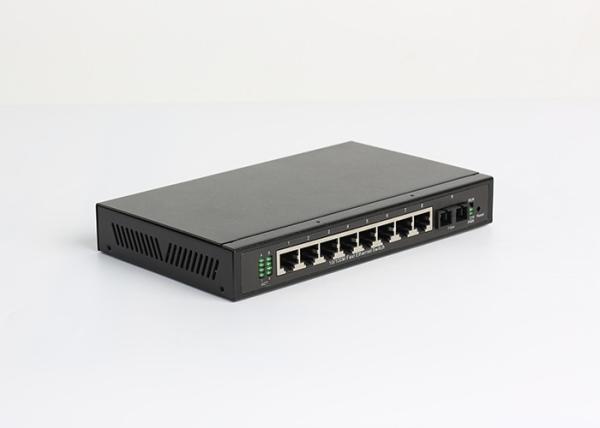

Gigabit Ethernet Switch 8 10/100M RJ45 Ports And 1 100M SC Fiber Uplink Port

Character

  • 8 10/100M RJ45 ports and 1 100M SC fiber uplink port
  • Full 100M rate, full-duplex non-blocking forwarding on every port
  • 4K MAC learning, 1.25Mbit storage of forward cache space,2G back plane bandwidth
  • Optional to Support Web,CLI ,SNMP management
  • Managed version support VLAN, STP/RSTP/MSTP, Trunk port aggregation, Port mirroring,Broadcast storm control,loop detection,bandwidth allocation, PPPoE etc.
  • (Optional) Anti-high voltage with lightning protection and anti-interference ability on each RJ45 port
  • (Optional) Wall-mounted hanger, better for installation
  • Metal casing better for heat dissipating
  • Optional to choose wide range temperature circuit design

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.1d Spanning Tree Protocol,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p QoS,IEEE802.3ad Trunk, IEEE802.3X Flow Control
Port

8 10/100M RJ45 ports: 10/100Mbps

1 100M fiber uplink port: 100Mbps, SCT
Power consumption 5W
Working temperature -10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Dimension 28mm (H)×193mm(W)×119mm (D)

Order Information

NO Type NMS Ports Power
1 FOWAY1209TF NO 8 10/100M RJ45 ports +1 100M SC uplink DC12V
2 FOWAY1209TFM WEB 8 10/100M RJ45 ports +1 100M SC uplink DC12V
3 FOWAY1209TFM-SI WEB/SNMP 8 10/100M RJ45 ports +1 100M SC uplink DC12V
