Specifications
Brand Name :
Hioso
Model Number :
FOWAY1310TFS
Certification :
CE, RoHS, CCC
Place of Origin :
China, Guang dong
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, D/P, L/C, , Western Union
Supply Ability :
2000pcs/month
Delivery Time :
3-10 work days
Packaging Details :
38X24X18 CM
Product Name :
10 ports switch
Mac address :
8K MAC learning
Storage :
-40~80℃
Support :
VLAN
Working :
-10~60℃
Port :
8 100M RJ45 ports : 10/100Mbps 2 1000M SFP: 1 Gbps, 1000M SFP
Description

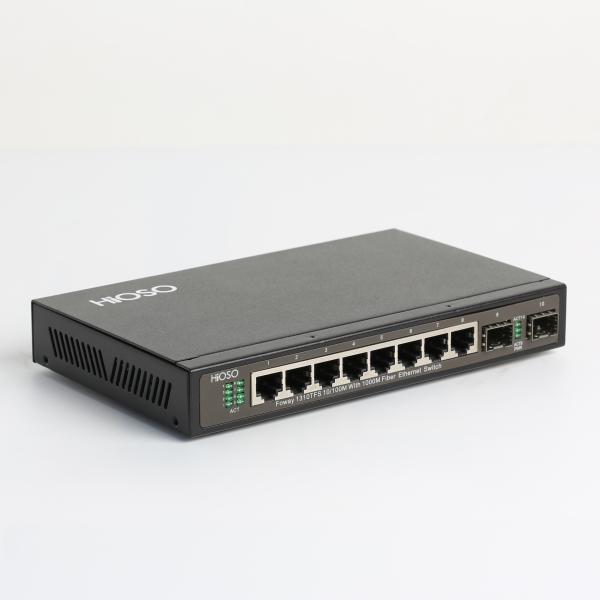

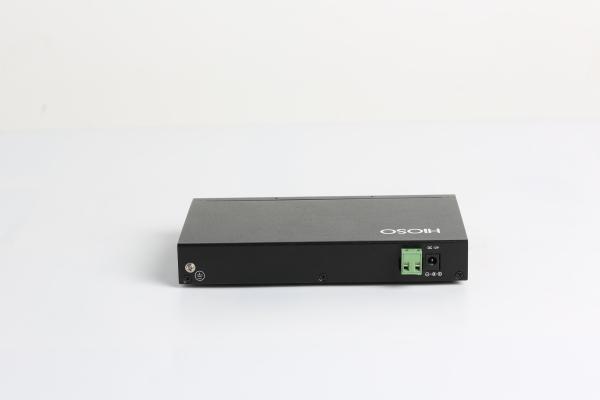

10 Ports Ethernet Access Switch 8 Rj45 Ports + 2 Fiber Uplink Ports

Hioso 8 Rj45 TP Ports +2 ge Fiber Uplink Ports Ethernet Access Switch Gigabit Ethernet Switch

Character

  • 8 10/100M RJ45 ports and 2 1000M SFP fiber uplink port
  • Gigabit port support Full 1000M rate, full-duplex non-blocking forwarding
  • 8K MAC learning, 1Mbit storage of forward cache space,7.6G back plane bandwidth
  • Optional to Support Web,CLI ,SNMP management
  • Managed version support VLAN, STP/RSTP/MSTP, Trunk port aggregation, Port mirroring,Broadcast storm control,loop detection,bandwidth allocation, PPPoE etc.
  • (Optional) Anti-high voltage with lightning protection and anti-interference ability on each RJ45 port
  • (Optional) Wall-mounted hanger, better for installation
  • Metal casing better for heat dissipating
  • Optional to choose wide range temperature circuit design

Technical Specification

Parameter Specification
Standard IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.1d Spanning Tree Protocol,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1p QoS,IEEE802.3ad Trunk,IEEE802.3X Flow Control
Distance

RJ45 port: 100m

SFP port: Multi-mode: 220m (fiber size 62.5/125μm) /550m(fiber size 50/125μm) Single-mode: 10/20/40/60/80/100/120Km
Port 8 10/100M RJ45 ports ;2 1000M fiber uplink port: SFP uplink port
MAC address 8K
Buffer memory space 1Mbit
Bit error rate <1/1000000000
MTBF 100000 hours
Power DC12V/1A
Power consumption 3.8W
Working temperature -10~60℃
Storage temperature -40~80℃
Humidity 5%~90% non-condensing
Dimension

28mm (H)×219mm(W)×119mm (D) (external power)

28mm (H)×239mm(W)×119mm (D) (inside power)

Hioso 8 Rj45 TP Ports +2 ge Fiber Uplink Ports Ethernet Access Switch Gigabit Ethernet Switch

Hioso 8 Rj45 TP Ports +2 ge Fiber Uplink Ports Ethernet Access Switch Gigabit Ethernet Switch

Specification Datasheet Download: FOWAY1310TFS.pdf
