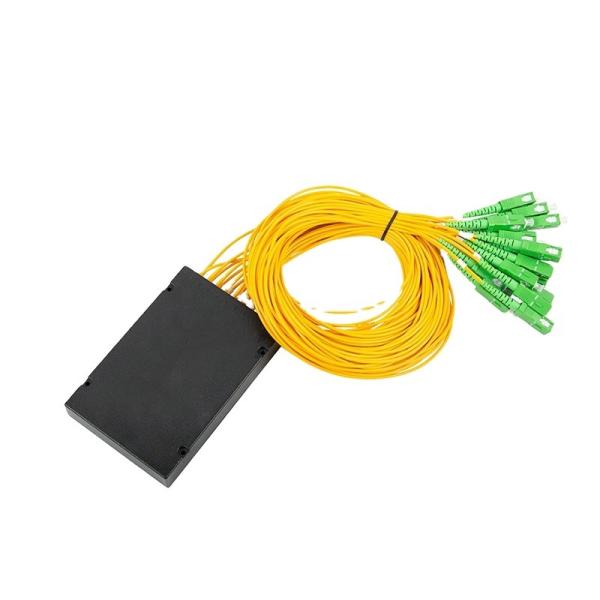

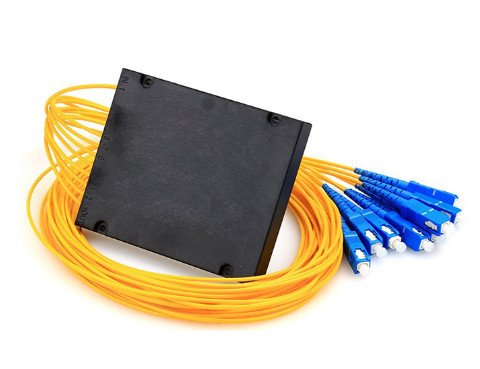

1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector
1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector
1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector
1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector
1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector
1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector
1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector
1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector
1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector
1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector
1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector
1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector
Specifications
Brand Name :
SUNET
Model Number :
1*8-PLC
Certification :
ISO14001/ISO900
Place of Origin :
China
MOQ :
1 piece
Price :
USD1-2 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 per month
Delivery Time :
5-8 days
Packaging Details :
box+ carton
Type :
Steel tube Type
Length :
1.5M
Making rings :
MADE IN CJHINA
Package :
2pieceS 1 box
Application :
FTTH
Material :
PVC
Connector type :
SC/APC
Wavelength :
1310nm/1550nm
Description

1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector For PON & FTTX And CATV Network

Describtion

Optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

Feature

  • * Low Insertion loss
    * Low PDL
    * Compact Design
    * Good channel-to-channel uniformity
    * Wide Operating Wavelength: From 1260nm to 1650nm
    * Wide Operating Temperature: From -40°C to 85°C
    * High Reliability and Stability

Application

* Can be used for FTTX Systems
* Passive Optical Networks (PON)
* CATV TV Networks (CATV)
* Optical Signal Distribution

Item
1x8
Operating Wavelength(nm)
1260-1650
Fiber Type
G657A1 or as customers' order
Connector
SC/FC/LC
Ferrule section
UPC/APC
Insertion loss(dB)
≤13.8
Loss uniformity(dB)
≤1.2
Return Loss(dB)
≥55
Polarization Dependent Loss(dB)
≤0.25
Directivity(dB)
≥55
Temperature correlation loss
≤0.5
-40～85℃(dB)
Size(mm)(LxWxH)
60×7×4
Working Temperature(℃)
-40～85
Storage Temperature(℃)
-40～85

1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector1*4 1*8 ABS Box Type Fiber Optic PLC Splitter With SC/APC Connector
