3.0mm Fiber Internet Connector
3.0mm Fiber Internet Connector
3.0mm Fiber Internet Connector
3.0mm Fiber Internet Connector
Specifications
Brand Name :
SUNET / OEM
Model Number :
SC APC
Certification :
ISO9001 / ISO14001
Place of Origin :
Qingdao , China
MOQ :
1 piece
Price :
USD 0.2-0.3 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000 PCS / Month
Delivery Time :
5 - 8 Workdays
Packaging Details :
Blister box packing
Connector :
Sc / Apc
Insertion Loss :
≤ 0.3 dB
Fiber Type :
SM / MM
Fiber Cable Type :
3x2mm Flat cable, 2.0mm 3.0mm cable
Operating temperature :
-40~75, -40°C ~ +80°C, -40 to +85 degree, -45 to +85
Application :
FTTH FTTB FTTX Network
Lead time :
3-7working days
Return loss :
> 55db
Description

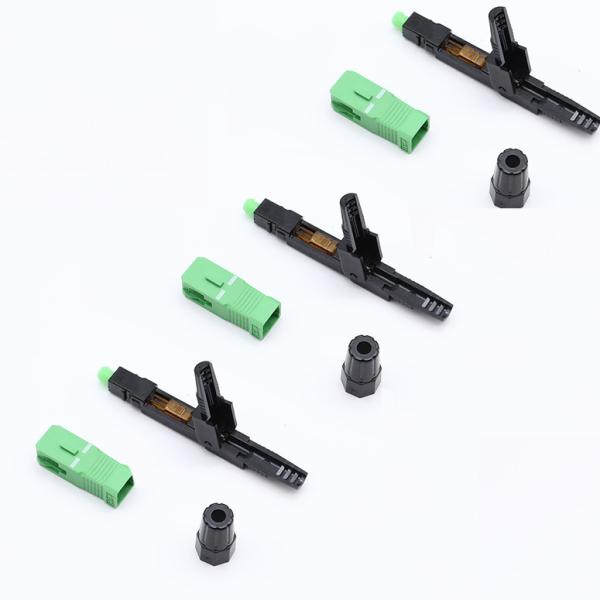

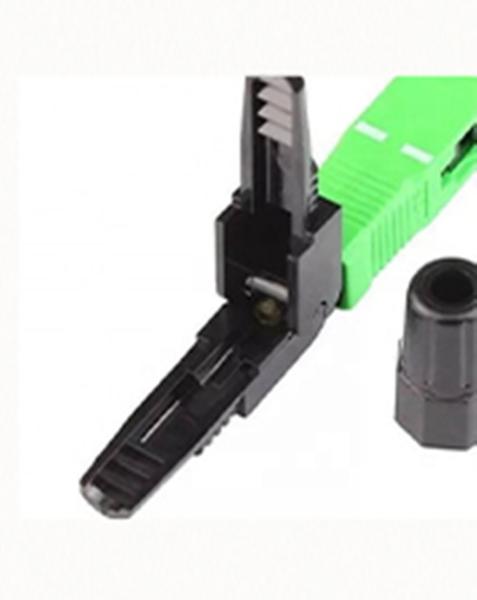

FTTH SC / APC Drop Cable Fiber Optic Fast Connector

Description

SC optical fiber real-time physical connector is a kind of quick connector for physical connection. It uses special optical silicone grease filling to replace the easy-to-lose matching paste. It is used for quick physical connection (not matching paste connection) of small equipment. It is matched with a group of optical fiber standard tools. It is simple and accurate to complete the standard end of optical fiber and reaching the physical stable connection of optical fiber. The assembly steps are simple and low skills required . the connection success rate of our connector is nearly 100%, and the service life is more than 20 years.

Feature

1. Quickly assembly connetor

2. High return loss,low insert

3. Cost effective portable

4. Install quickly

5. Reliable and superior optical performance

Application

1. Patch panels

2. Distribution frames

3. Maintenance or emergency restoration of fiber networks

4. FTTH Outlets

5. Connection at the desk for LAN environments

Spectification

Product name

FC Fiber Optic Field Assembly Fast Connector

Type

Pre-Embedded

Suitable optical fiber

2.0*3.0 cable

Fiber mode

Single & Multi mode

Installation time

Within 60s ( No fiber cut )

Insertion loss

≤ 0.3dB (Max 0.5)

Return loss

≥ 50dB

Tensile strength

> 50N

Working Temperature

-40~+75ºC

Storage Temperature

-40~+85ºC

3.0mm Fiber Internet Connector
