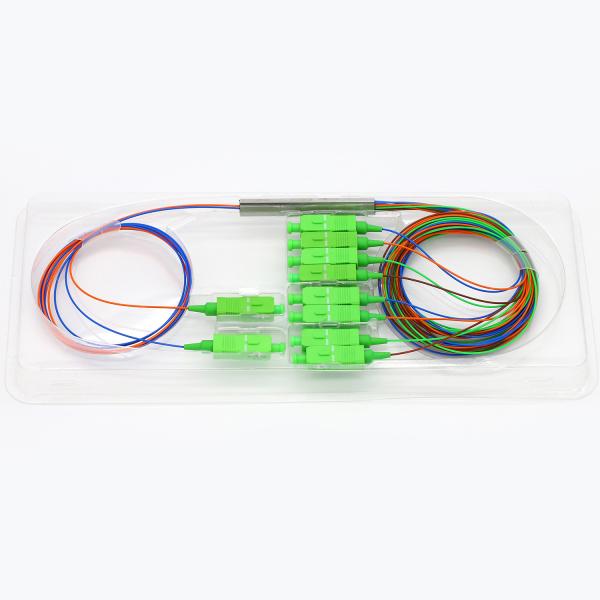

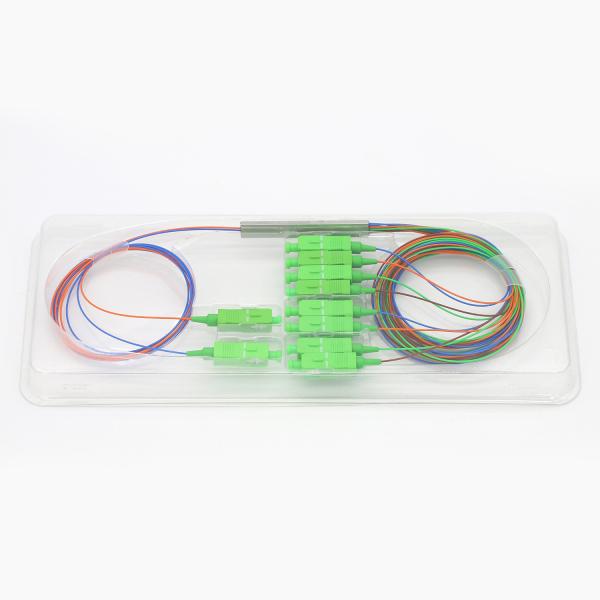

4.3dB 2x8 Steel Tube Passive Splitter Fiber Optic
4.3dB 2x8 Steel Tube Passive Splitter Fiber Optic
4.3dB 2x8 Steel Tube Passive Splitter Fiber Optic
4.3dB 2x8 Steel Tube Passive Splitter Fiber Optic
Specifications
Brand Name :
SUNET or OEM
Model Number :
Steel Tube Type
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1pcs
Price :
USD3-10/Pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability :
5000000pcs per week
Delivery Time :
5-8 working day
Packaging Details :
One pcs in one plastic box/bag
Product Name :
PLC splitter
Type :
2x8
Connector Type :
SC/APC
Fiber Type :
G657A
Application :
FTTH FTTB FTTX Network
Material :
PVC LSZH optional
Wavelength :
1260 to 1650nm
Cable Diameter :
0.9mm
Cable Length :
1m or customized
Color :
12 colors are available
Description

2x8 Steel Tube G657A 0.9mm 1m SC/APC Passive Optical Plc Splitter

Fiber Optic PLC Splitter Description

1). Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

2). It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

3). We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

4). All products meet GR-1209-CORE and GR-1221-CORE requirements.

Fiber Optic PLC Splitter Features

1. Low Insertion loss and Low PDL

2. Uniform power splitting

3. High reliability

4. Excellent environmental stability

5. Compact size and various package

Fiber Optic PLC Splitter Applications

1. FTTx Systems

2. Digital, hybrid and AM-Video systems

3. LAN,WAN and Metro Networks

4. CATV systems

5. Other applications in fiber

Fiber Optic PLC Splitter Specification

1xN PLC Splitter((Room temperature, including connector loss)

type

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength(nm)

1260-1650nm

Insertion loss(dB)

Max

4.1

7.5

10.7

13.9

17.2

20.6

Loss uniformity(dB)

Max

0.5

0.6

0.8

1.0

1.5

2.0

Return Loss(dB)

≥50

≥50

≥50

≥50

≥50

≥50

Polarization Dependent Loss(dB)

Max

0.2

0.2

0.3

0.3

0.3

0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Fiber Type

Corning smf-28e or customer designation

Wavelength Dependent Loss(dB)

Max

0.6

0.6

0.6

0.8

0.8

0.8

Temperature correlation loss-40～85℃(dB

Typical value

0.2

0.2

0.3

0.4

0.4

0.4

Max

0.5

0.5

0.5

0.5

0.5

0.5

Working Temperature(℃)

-40～85℃

Storage Temperature(℃)

-40～85℃

2xN PLC Splitter((Room temperature, including connector loss)

type

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength(nm)

1260-1650nm

Insertion loss(dB)

Max

4.3

7.8

11.1

14.4

17.7

20.7

Loss uniformity(dB)

Max

0.5

0.6

0.8

1.0

1.5

2.0

Return Loss(dB)

≥50

≥50

≥50

≥50

≥50

≥50

Polarization Dependent Loss(dB)

Max

0.2

0.2

0.3

0.3

0.3

0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Fiber Type

Corning smf-28e or customer designation

Wavelength Dependent Loss(dB)

Max

0.6

0.6

0.6

0.8

0.8

0.8

Temperature correlation loss-40～85℃(dB)

Typical value

0.2

0.2

0.3

0.4

0.4

0.4

Max

0.5

0.5

0.5

0.5

0.5

0.5

Working Temperature(℃)

-40～85℃

Storage Temperature(℃)

-40～85℃

4.3dB 2x8 Steel Tube Passive Splitter Fiber Optic
