Specifications
Brand Name :
JiZhong
Model Number :
JZOG-6404
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5 ork days
Packaging Details :
Standard export package
Wavelength: :
1310/1550 +/- 10nm
Optical return loss: :
>45dB
Input optical power :
-20dBm~+2dBm
RF frequency :
47MHz~1000MHz
RF output level: :
70~80dBuV
Optical AGC range :
-15 to -5 dBm
LAN :
4FE, 1GE/3FE
Size :
170x118x38mm
Description

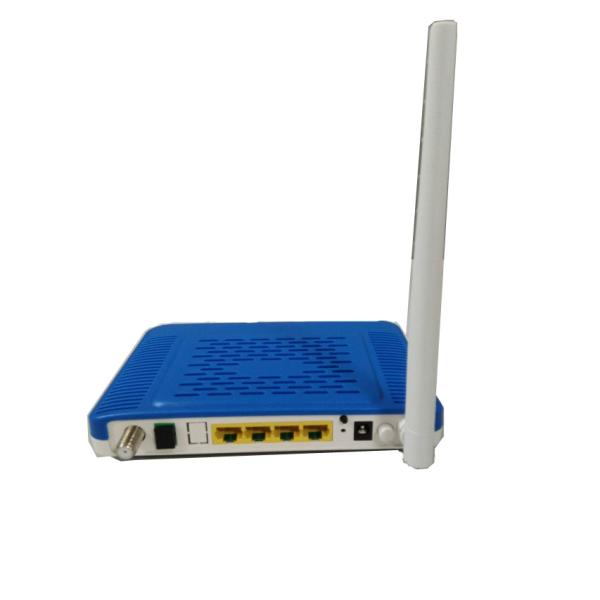

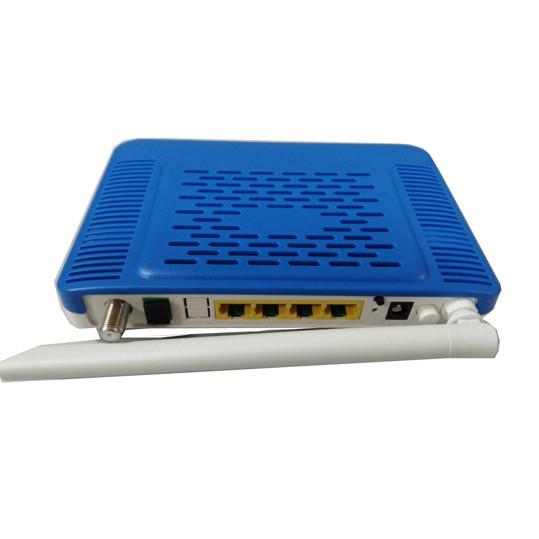

1GE3FE CATV 1POTS Fiber GPON EPON XPON FTTH ONU Compatible With ZTE HuaWei

Basic Features:

Comply fully with IEEE802.3ah standard and CTC EPON device technology requirement

Support bidirectional FEC

Support downlink triple churning

ONU discovery and registration process implemented by Pure hardware

Support the report of the CTC requirement

Support OAM remote management

Support VLAN function

Operation mode:HGU option

Support TR069,NAT,DMZ,DNS features

Support IPV,PPPOE,DHCP and Static IP configuration for WAN interface

Support IP,MAC Filtering,Firewall Functionality in routed mode

Good interworking with the OLT from different manufacturers,such as Broadcom,ZTE,Huawei etc

Datasheet:

Tech parameters description
Up-link interface PON Quantity 1PCS EPON PON
PON interface receiving rate 1.25Gbits/s
PON interface Transmitting rate 1.25 Gbits/s
Optical power -1±4 dBm
Sensitivity -26 dBm
safety ONU authentication mechanism
Down-link interface Fiber type Single mode single fiber, max 20km
Wavelength(nm) TX 1310nm,RX 1490nm
Fiber Port SC/PC SC/UPC SC/APC
Ethernet Port 4PCS*10/100M with auto-negotiation
Power Supply 12V 1A
Power ≤4W
Operating temperature -5~+55℃
Humidity 10~85%(non-condensation)
Storage temperature -30~+60℃
Tech features description
Optical wavelength

1100~1650nm(Dual Fiber,NO PWDM)

1540~1560nm(Single Fiber,internal PWDM component)
Optical input range 0~-15 DBm
Optical return loss ≥45 DB
Bandwidth 45~1000 MHz
Flatness ±1 DB
RF output level ≥72 dBuv
AGC control range 0~-14 DBm
RF Output return loss ≥14 DB
Output impedance 75Ω
CNR ≥50 DB
CTB ≥60 DB
CSO ≥60 DB

1GE3FE CATV 1POTS Fiber FTTH ONU GPON EPON XPON Compatible With ZTE HuaWei1GE3FE CATV 1POTS Fiber FTTH ONU GPON EPON XPON Compatible With ZTE HuaWei1GE3FE CATV 1POTS Fiber FTTH ONU GPON EPON XPON Compatible With ZTE HuaWei
