12mW FTTH 1550nm Cable TV Optical Transmitter , CATV RF Fiber Transmitter 47~1000MHz
12mW FTTH 1550nm Cable TV Optical Transmitter , CATV RF Fiber Transmitter 47~1000MHz
12mW FTTH 1550nm Cable TV Optical Transmitter , CATV RF Fiber Transmitter 47~1000MHz
12mW FTTH 1550nm Cable TV Optical Transmitter , CATV RF Fiber Transmitter 47~1000MHz
12mW FTTH 1550nm Cable TV Optical Transmitter , CATV RF Fiber Transmitter 47~1000MHz
12mW FTTH 1550nm Cable TV Optical Transmitter , CATV RF Fiber Transmitter 47~1000MHz
12mW FTTH 1550nm Cable TV Optical Transmitter , CATV RF Fiber Transmitter 47~1000MHz
12mW FTTH 1550nm Cable TV Optical Transmitter , CATV RF Fiber Transmitter 47~1000MHz
12mW FTTH 1550nm Cable TV Optical Transmitter , CATV RF Fiber Transmitter 47~1000MHz
12mW FTTH 1550nm Cable TV Optical Transmitter , CATV RF Fiber Transmitter 47~1000MHz
Specifications
Brand Name :
JiZhong
Model Number :
JZOTH13XX
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5 work days
Packaging Details :
Outer carton size:19x18x7.8CM
Frequency range :
47~1000MHz
RF input level :
72~82dBuv
in band flatness :
±0.75
Input reflection loss :
≥16dB
C/CSO :
≥60dB
C/CTB :
≥65dB
C/N :
≥51dB
Description

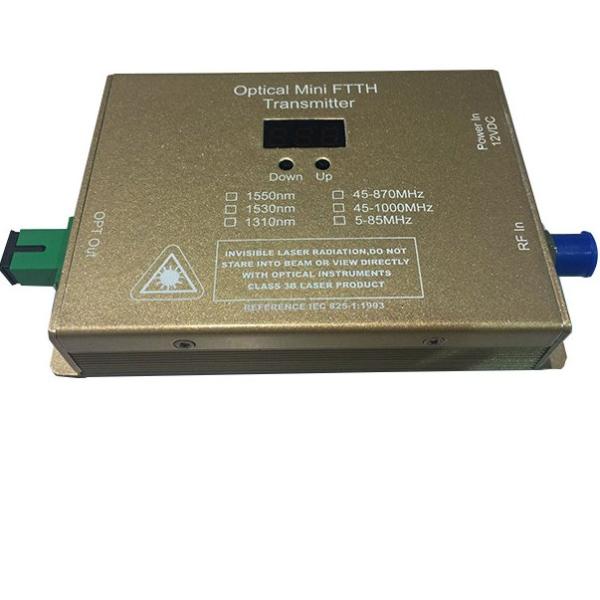

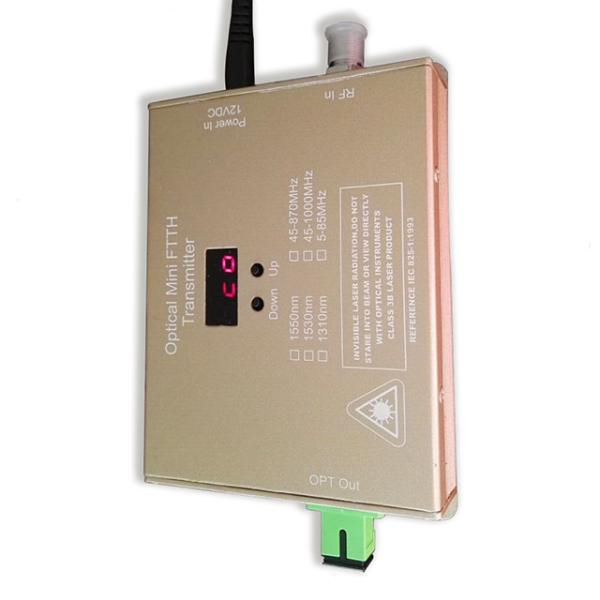

12mW FTTH 1550nm Cable TV CATV RF Fiber Mini Optical Transmitter

Description:

FTTH MINI CATV Optical Transmitter, Output Optical Wavelength:1310 or 1550 or 1470 or 1610 nm, Optical Return Loss:≥16dB,Optical Connector:SC/APC,Optical Fiber Type:Single Mode,Frequency Range:47~1000MHz,Input Level:72-82dBuV,C/N:≥51dB,Power Input Voltage:DC12V/1A,Dimensions:140*90*26mm.

Technical Parameters:

Item Unit Technical spec.
Wavelength nm 1310±20
Laser type DFB laser
Optical modulation type Direct optical strength modulation
Optical connector type FC/APC or SC/APC
Frequency range MHz 47-862/1000
RF input level dBuV 72~82
Flatness in band dB ±0.75
RF input resistance 75
Input reflection loss dB ≥16
Link C/N dB ≥ 51
Link C/CSO dB ≥ 60
Link C/CTB dB ≥ 65
AGC controling range dB ±5
MGC controling range dB 0~10
Power supply pressure V DC12V/1A
Power loss W ≤ 8
Dimension mm 140 x 90 x 26
