Troubleshooting Such As Loss Break Point And Reflection Quick Positioning And Value Display PON OTDR FTTH Combo Tester
Troubleshooting Such As Loss Break Point And Reflection Quick Positioning And Value Display PON OTDR FTTH Combo Tester
Specifications
Brand Name :
JZ
Model Number :
TWH-6118
Certification :
CE, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
5 work days
Packaging Details :
Export Standard Package
Description

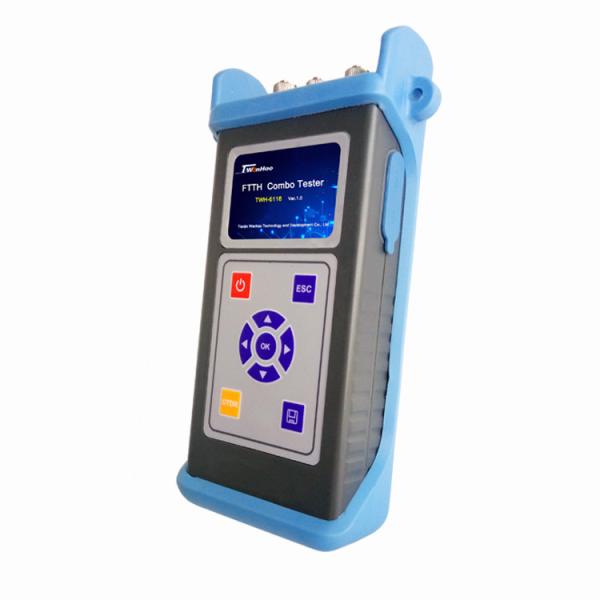

FTTH PON OTDR FTTH Combo Tester

TWH-6118

Product description:

This tester is used to carry out troubleshooting positioning and analysis for FTTH and FTTX optical networks. It features the online testing function the same as OTDR does (under prerequisite of continuous light signal), it also can test the troubleshooting and locating through optical splitter.

Key Features:

* Quick accurate test: Troubleshooting such as loss, break point and reflection, quick positioning and value display;

* Break point test over whole line (0-50KM customization)

* Automatic voltage contro and regulating pulse width

* Suitable for any test under kinds of environments

Troubleshooting Such As Loss Break Point And Reflection Quick Positioning And Value Display PON OTDR FTTH Combo Tester

Technical Specification:

ITEM TWH-6118
Type of light source (NM) 1625
Type of fiber 9/125 um SM fiber
Type of connector FC/PC
Type of tester InGaAs
Pulse width Automatic
Max test distance (KM) Reflect accident 6.5(≥1.0dB)
Non-reflect accident 6.5(≥1.5dB)
Dead zone of reflect accident(M) 3
Accuracy (reflect accident) (M) ± (2+2*10 (-4) *distance)
Optical power meter
Calibration wavelength(nm) 850, 1300, 1310, 1490, 1550, 1625
Power test range (dBm) -70~+6 -50~+26
Data storage 1000 groups (USB data output)
Red light source
Red light source power(mW) ≥1
Battery 3 x1.5V AA Rechargeable
Working temp. (℃) -5~40
Shelf temp. (℃) -10~60
Dimension(mm) 200x90x50
Weight (g, excluding battery) 320

Troubleshooting Such As Loss Break Point And Reflection Quick Positioning And Value Display PON OTDR FTTH Combo Tester

Troubleshooting Such As Loss Break Point And Reflection Quick Positioning And Value Display PON OTDR FTTH Combo Tester
